1
Model
MAVERICK
2
Year
2018
3
Trim
MAVERICK MAX X3 TURBO R X RS DPS
4
Parts Catalog

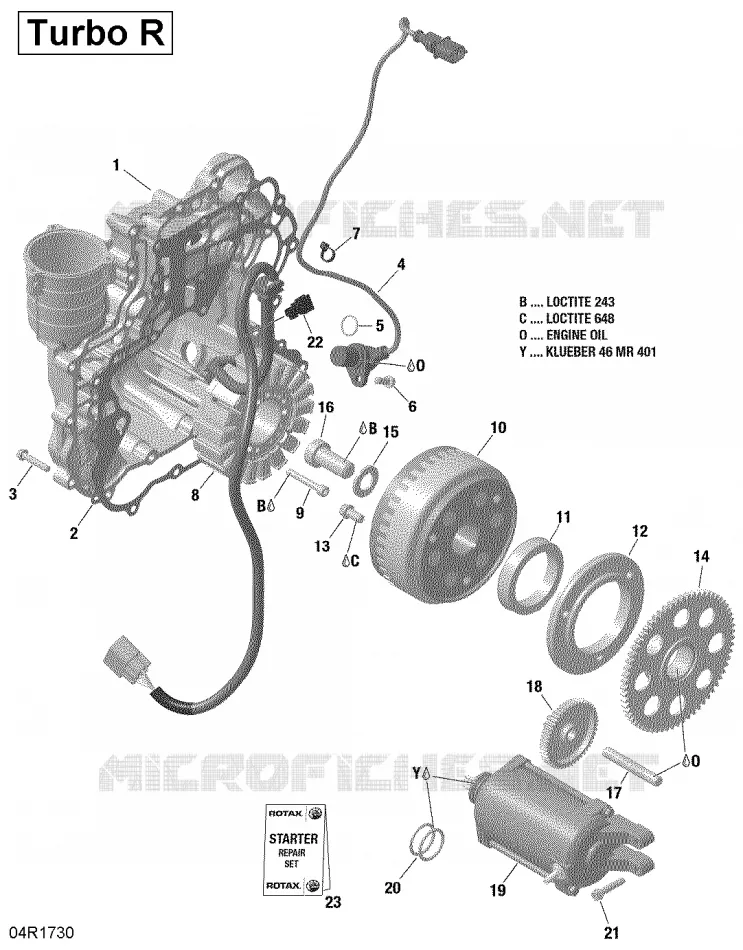

Magneto And Electric Starter
5
Parts Diagram
Parts Catalog
Fuel EVAP Model
by
Transmission
Magneto And Electric Starter
11
21
20
17
9
7
6
2
18
16
3
5
13
23
10
8
8
14
1
15
22
12
1
IGNITION COVER
420911055
207,00€ Unit Price incl. VAT
2
GASKET
420431640
36,34€ Unit Price incl. VAT
3
FLANGED TORX SCREW M6 X 30
420440647
2,38€ Unit Price incl. VAT
4>5
CRANKSHAFT POSITION SENSOR ASSY
420966570
123,70€ Unit Price incl. VAT
5
SEAL_O-RING
420431580
17,62€ Unit Price incl. VAT
6
FLANGED TORX SCREW M6 X 16
420440162
3,76€ Unit Price incl. VAT
7
TIE RAP
420866714
2,24€ Unit Price incl. VAT
8
STATOR PLATE
420685635
365,54€ Unit Price incl. VAT
9
ALLEN SCREW M6 X 40
420241956
3,76€ Unit Price incl. VAT
10
FLYWHEEL ASS Y
420686192
634,01€ Unit Price incl. VAT
11
SPRAG CLUTCH
420659113
295,01€ Unit Price incl. VAT
12
SPRAG CLUTCH HOUSING
420659261
420659263
177,00€ Unit Price incl. VAT
13
FLANGED TORX SCREW M8 X 16
420440854
5,18€ Unit Price incl. VAT
14
FREE WHEEL GEAR, 64 TEETH
420434238
126,00€ Unit Price incl. VAT
15
SHIM
420627270
4,84€ Unit Price incl. VAT
16
SOCKET HEAD SCREW M16 X 35
420241549
10,10€ Unit Price incl. VAT
17
NEEDLE PIN
420229475
17,62€ Unit Price incl. VAT
18
DOUBLE GEAR 11/49 TEETH
420634741
222,00€ Unit Price incl. VAT
19>20
STARTER ASS Y
420893830
294,47€ Unit Price incl. VAT
20
O-RING
420250145
12,30€ Unit Price incl. VAT
21
FLANGED TORX SCREW M6 X 30
420440647
2,38€ Unit Price incl. VAT
22
CABLE CLAMP
420951650
5,54€ Unit Price incl. VAT
23
CARBON BRUSH SET
420881145
234,00€ Unit Price incl. VAT

Find the detailed Magneto And Electric Starter CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
