1
Model
MAVERICK
2
Year
2018
3
Trim
MAVERICK MAX X3 TURBO R X RS DPS
4
Parts Catalog
Crankcase
5
Parts Diagram
Parts Catalog
Model Numbers
by
Crankshaft And Pistons
Crankcase
26
12
14
10
2
2
2
2
2
18
13
17
24
4
20
8
8
21
22
15
9
25
6
6
6
6
5
3
3
3
11
11
23
19
7
7
7
7
16
27
1>7
CRANKCASE ASS Y
420893001
2 529,30€ Unit Price incl. VAT
2
CENTER PIN 8 X 12
420632010
4,68€ Unit Price incl. VAT
3
OIL SPRAY NOZZLE
420656731
20,48€ Unit Price incl. VAT
4
PLUG SCREW M20 X 1.5
420641317
16,56€ Unit Price incl. VAT
5
PLUG SCREW M10 X 1
420641323
16,46€ Unit Price incl. VAT
6
CUSHION
420933180
20,48€ Unit Price incl. VAT
7
CUSHION
420933185
21,42€ Unit Price incl. VAT
8
RING HALF
420933140
12,76€ Unit Price incl. VAT
9
THREADED PIN
420840508
21,28€ Unit Price incl. VAT
10
FLANGED TORX SCREW M8 X 55
420641213
8,76€ Unit Price incl. VAT
11
FLANGED TORX SCREW M6 X 35
420440274
1,20€ Unit Price incl. VAT
12
FLANGED TORX SCREW M9 X 113
420940945
16,30€ Unit Price incl. VAT
13
JOINT ETANCHE *GASKET
420431820
18,62€ Unit Price incl. VAT
14
OIL SUMP
420911505
420911504
128,00€ Unit Price incl. VAT
15
FLANGED TORX SCREW M6 X 25
420841548
6,66€ Unit Price incl. VAT
16
PTO COVER
420212461
206,00€ Unit Price incl. VAT
17
OIL SEAL
420630153
22,34€ Unit Price incl. VAT
18
ROLLER BEARING
420232497
66,00€ Unit Price incl. VAT
19
RETAINING RING
420845790
8,86€ Unit Price incl. VAT
20
GASKET
420450080
9,12€ Unit Price incl. VAT
21
FLANGED TORX SCREW M8 X 35
420440861
3,84€ Unit Price incl. VAT
22
SEALING RING
420950142
5,54€ Unit Price incl. VAT
23
FLANGED TORX SCREW M8 X 16
420440852
4,84€ Unit Price incl. VAT
24
NOISE SENSOR
420664031
73,00€ Unit Price incl. VAT
25
FLANGED TORX SCREW M8 X 35
420641188
8,76€ Unit Price incl. VAT
26
GASKET SET
420686232
734,02€ Unit Price incl. VAT
27
ENS.CARTER CY.*BLOCK-LONG 900ACE T
420090350
5 381,26€ Unit Price incl. VAT

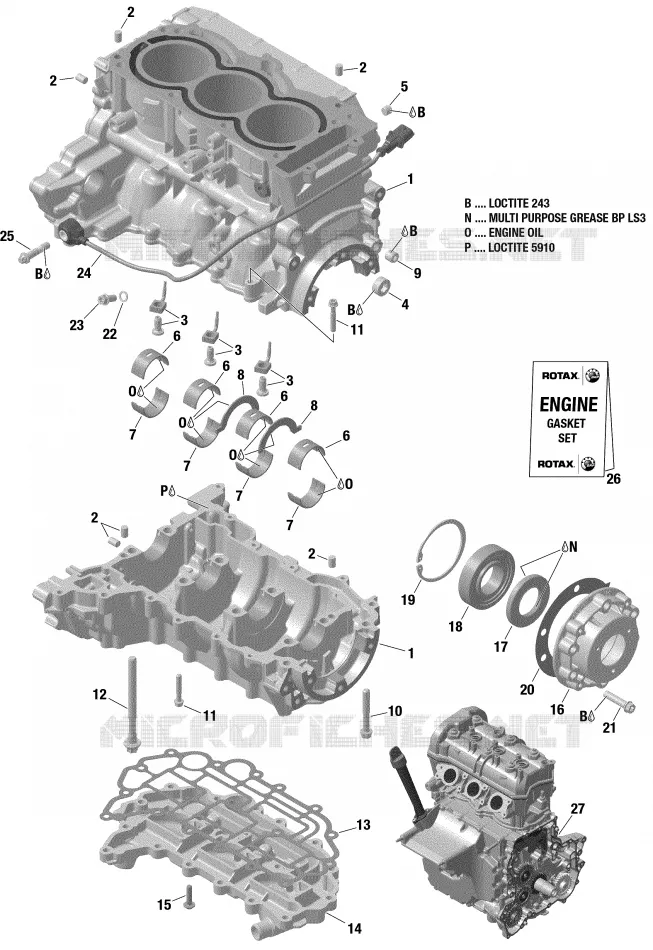

Find the detailed Crankcase CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
