1
Model
MAVERICK
2
Year
2018
3
Trim
MAVERICK MAX X3 TURBO R X RS DPS
4
Parts Catalog
Front Drive - Main Parts - XRS DPS - SML
5
Parts Diagram
Parts Catalog
Wheels and Tires - Front and Rear - Package Xrs DPS - Timeless Black
by
Shocks Maverick X3 - Turbo R - Smart-Lok
Front Drive - Main Parts - XRS DPS - SML
320
130
130
10
110
110
17
160
160
18
200
200
15
230
230
16
140
140
140
140
80
80
60
60
150
150
225
225
170
170
100
100
40
40
325
10
DRIVE AXLE ASSY
705402187
306,01€ Unit Price incl. VAT
10a
U-JOINT CROSS KIT
715900402
106,01€ Unit Price incl. VAT
10b
FIXED YOKE JOINT
715900524
73,00€ Unit Price incl. VAT
10c
YOKE
715900401
44,44€ Unit Price incl. VAT
15
AXLE ASS Y
705402026
362,00€ Unit Price incl. VAT
15a
YOKE
715900401
44,44€ Unit Price incl. VAT
15b
U-JOINT CROSS KIT
715900402
106,01€ Unit Price incl. VAT
16
BEARING
705401938
705403522
55,56€ Unit Price incl. VAT
17
SNAP RING
293370098
3,76€ Unit Price incl. VAT
18
HEX. FLANGED SCREW M10 X 20, SCOTCH GRIP
207502046
2,51€ Unit Price incl. VAT
40
HALF SHAFT
705402048
318,01€ Unit Price incl. VAT
40a
JOINT_CV EXT
715900574
306,01€ Unit Price incl. VAT
40b
PLUNGING JOINT
715900575
286,82€ Unit Price incl. VAT
40c
CIRCLIP JOINT
715900569
6,66€ Unit Price incl. VAT
40d
BOOT CV JOINT KIT
705401354
50,00€ Unit Price incl. VAT
40d1
OETIKER CLAMP, LARGE
715900260
12,26€ Unit Price incl. VAT
40d2
OETIKER CLAMP, SMALL
715900261
5,82€ Unit Price incl. VAT
40e
O-RING
715900580
3,34€ Unit Price incl. VAT
60
BALL BEARING
293350109
293350151
82,15€ Unit Price incl. VAT
80
CIRCLIP
293370102
4,43€ Unit Price incl. VAT
100
HEX. FLANGED SCREW M10 X 20, SCOTCH GRIP
207502046
2,51€ Unit Price incl. VAT
110
CONICAL SPRING WASHER 10 MM
234201474
2,00€ Unit Price incl. VAT
130
WHEEL HUB
705502122
139,01€ Unit Price incl. VAT
140
WHEEL STUD M12X1.5
250300625
4,30€ Unit Price incl. VAT
150
CONICAL SPRING WASHER M20
250200170
17,22€ Unit Price incl. VAT
160
CASTLE NUT M20
250100193
9,54€ Unit Price incl. VAT
170
COTTER PIN
250400084
2,58€ Unit Price incl. VAT
200
WHEEL CAP
705401841
13,32€ Unit Price incl. VAT
225
VALVE CAP
293000110
1,70€ Unit Price incl. VAT
230
BLACK WHEEL NUT M12 X 1.50
250100196
3,06€ Unit Price incl. VAT
320
HEX. FLANGED SCREW M8 X 42
250000952
250001050
1,36€ Unit Price incl. VAT
325
HEX. ELASTIC FLANGED NUT M8
233281416
1,66€ Unit Price incl. VAT

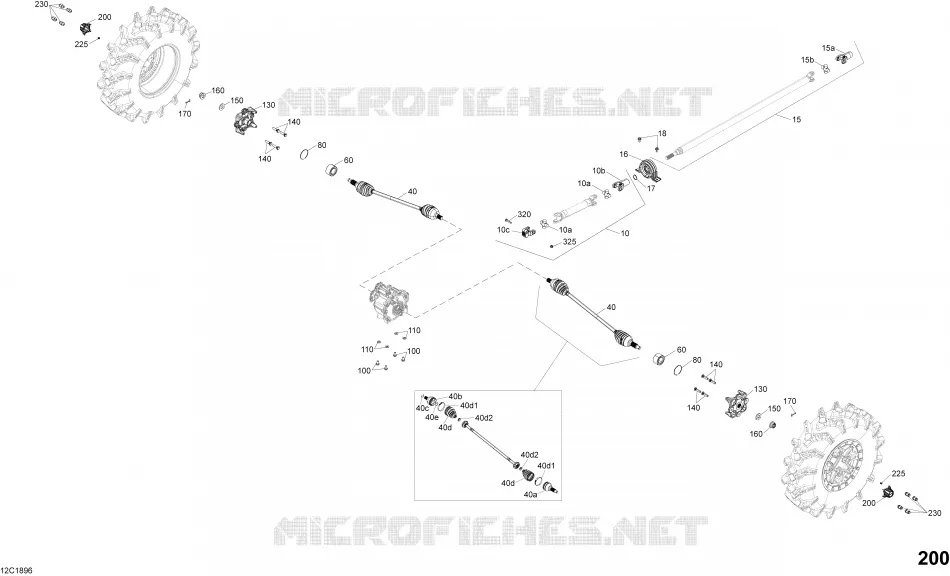

Find the detailed Front Drive - Main Parts - XRS DPS - SML CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
