1
Model
MAVERICK
2
Year
2018
3
Trim
MAVERICK MAX X3 TURBO R X RS DPS
4
Parts Catalog
Turbocharger
5
Parts Diagram
Parts Catalog
Engine Lubrication
by
Valve Cover
Turbocharger
14
23
8
11
20
18
24
16
16
16
2
26
26
26
3
3
5
19
21
21
21
13
15
12
9
17
17
6
25
10
7
22
22
22
1>11
TURBOCHARGER ASS Y
420893732
420456451 , 420893741
Not Available
1>11
TURBOCHARGER ASS Y
420893731
420456451 , 420893742
Not Available
2
WASTEGATE SUPPORT
420651850
27,25€ Unit Price incl. VAT
3
FLANGED TORX SCREW M8 X 16
420440854
5,18€ Unit Price incl. VAT
4>6
ACTUATOR
420867370
420867372
173,00€ Unit Price incl. VAT
5
Not Available As Spare Parts
XXX
Not Available
6
Not Available As Spare Parts
XXX
Not Available
7
LOCK NUT M6
420842041
0,11€ Unit Price incl. VAT
8
CLIP
420845000
1,20€ Unit Price incl. VAT
9
GASKET
420631205
5,57€ Unit Price incl. VAT
10
OIL TUBE
420456455
78,55€ Unit Price incl. VAT
11
FLANGED TORX SCREW M6 X 16
420440164
3,34€ Unit Price incl. VAT
12
COOLING WATER TUBE
420822841
420822842
184,01€ Unit Price incl. VAT
13
O RING
420650928
3,76€ Unit Price incl. VAT
14
SET SCREW M6 X 10
420241081
2,51€ Unit Price incl. VAT
15
GASKET
420431850
18,62€ Unit Price incl. VAT
16
WASHER
420827520
420827521
6,50€ Unit Price incl. VAT
17
COLLAR SCREW M8X35
420440692
420440693
5,46€ Unit Price incl. VAT
18
FLANGED TORX SCREW M8 X 35
420641188
8,76€ Unit Price incl. VAT
19
HEX NUT M6-10
420842890
3,34€ Unit Price incl. VAT
20
SOLENOID VALVE
420664636
147,00€ Unit Price incl. VAT
21
HOSE 430 MM
420260285
420260283
27,76€ Unit Price incl. VAT
22
GEAR CLAMP
420851463
8,88€ Unit Price incl. VAT
23
CLAMP 9.2-10.9 MM
420853133
3,90€ Unit Price incl. VAT
24
UPPER HEAT SHIELD
420975120
262,01€ Unit Price incl. VAT
25
LOWER HEAT SHIELD
420975125
301,01€ Unit Price incl. VAT
26
SET SCREW M6 X 10
420241081
2,51€ Unit Price incl. VAT

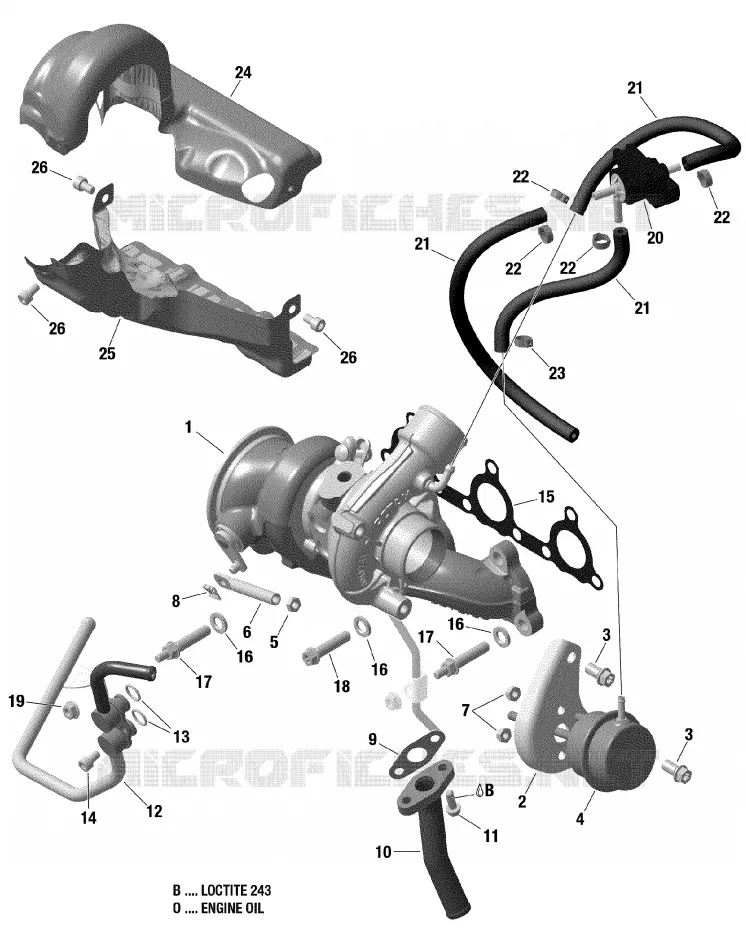

Find the detailed Turbocharger CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
