1
Model
MAVERICK
2
Year
2018
3
Trim
MAVERICK X3 TURBO R
4
Parts Catalog
Front Drive - Main Parts
5
Parts Diagram
Parts Catalog
Front Drive - Differential Parts
by
Shocks Maverick X3 - Turbo R - STD
Front Drive - Main Parts
230
230
10
10
170
170
320
80
80
160
160
40
40
40
18
150
150
200
17
16
100
100
110
110
140
140
140
140
50
50
50
15
225
225
60
60
325
130
130
10
DRIVE AXLE ASSY
705402187
306,01€ Unit Price incl. VAT
10
DRIVE AXLE ASSY
705402188
295,01€ Unit Price incl. VAT
10a
U-JOINT CROSS KIT
715900402
106,01€ Unit Price incl. VAT
10b
FIXED YOKE JOINT
715900524
73,00€ Unit Price incl. VAT
10c
YOKE
715900401
44,44€ Unit Price incl. VAT
15
AXLE ASS Y
705402026
362,00€ Unit Price incl. VAT
15a
YOKE
715900401
44,44€ Unit Price incl. VAT
15b
U-JOINT CROSS KIT
715900402
106,01€ Unit Price incl. VAT
16
BEARING
705401938
705403522
55,56€ Unit Price incl. VAT
17
SNAP RING
293370098
3,76€ Unit Price incl. VAT
18
HEX. FLANGED SCREW M10 X 20, SCOTCH GRIP
207502046
2,51€ Unit Price incl. VAT
40
HALF SHAFT
705402098
318,01€ Unit Price incl. VAT
40
HALF SHAFT
705402098
318,01€ Unit Price incl. VAT
40
HALF SHAFT
705402100
318,01€ Unit Price incl. VAT
40a
JOINT_CV EXT
715900452
306,01€ Unit Price incl. VAT
40b
PLUNGING JOINT
715900454
301,01€ Unit Price incl. VAT
40c
CIRCLIP JOINT
705401349
7,78€ Unit Price incl. VAT
40d
BOOT CV JOINT KIT
705401354
50,00€ Unit Price incl. VAT
40e
OETIKER CLAMP, LARGE
715900260
12,26€ Unit Price incl. VAT
40f
OETIKER CLAMP, SMALL
715900261
5,82€ Unit Price incl. VAT
50
HALF SHAFT
705402097
318,01€ Unit Price incl. VAT
50
HALF SHAFT
705402097
318,01€ Unit Price incl. VAT
50
HALF SHAFT
705402099
318,01€ Unit Price incl. VAT
50a
JOINT_CV EXT
715900452
306,01€ Unit Price incl. VAT
50b
PLUNGING JOINT
715900453
301,01€ Unit Price incl. VAT
50c
CIRCLIP JOINT
705401349
7,78€ Unit Price incl. VAT
50d
BOOT CV JOINT KIT
705401354
50,00€ Unit Price incl. VAT
50e
OETIKER CLAMP, LARGE
715900260
12,26€ Unit Price incl. VAT
50f
OETIKER CLAMP, SMALL
715900261
5,82€ Unit Price incl. VAT
60
BALL BEARING
293350109
293350151
82,15€ Unit Price incl. VAT
80
CIRCLIP
293370102
4,43€ Unit Price incl. VAT
100
HEX. FLANGED SCREW M10 X 20, SCOTCH GRIP
207502046
2,51€ Unit Price incl. VAT
110
CONICAL SPRING WASHER 10 MM
234201474
2,00€ Unit Price incl. VAT
130
WHEEL HUB
705502122
139,01€ Unit Price incl. VAT
140
WHEEL STUD M12X1.5
250300625
4,30€ Unit Price incl. VAT
150
CONICAL SPRING WASHER M20
250200170
17,22€ Unit Price incl. VAT
160
CASTLE NUT M20
250100193
9,54€ Unit Price incl. VAT
170
COTTER PIN
250400084
2,58€ Unit Price incl. VAT
200
WHEEL CAP
705401841
13,32€ Unit Price incl. VAT
225
VALVE CAP
293000110
1,70€ Unit Price incl. VAT
230
BLACK WHEEL NUT M12 X 1.50
250100196
3,06€ Unit Price incl. VAT
232
SIDE GEAR KIT
703501007
703501023
534,01€ Unit Price incl. VAT
320
HEX. FLANGED SCREW M8 X 42
250000952
250001050
1,36€ Unit Price incl. VAT
325
HEX. ELASTIC FLANGED NUT M8
233281416
1,66€ Unit Price incl. VAT

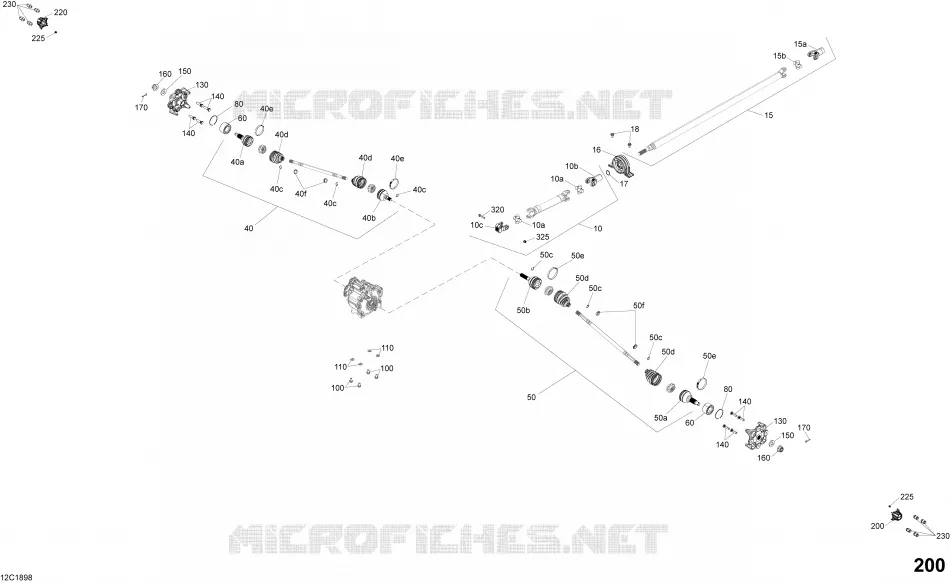

Find the detailed Front Drive - Main Parts CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
