1
Model
MAVERICK
2
Year
2018
3
Trim
MAVERICK X3 TURBO R
4
Parts Catalog
Gear Box And Components X3
5

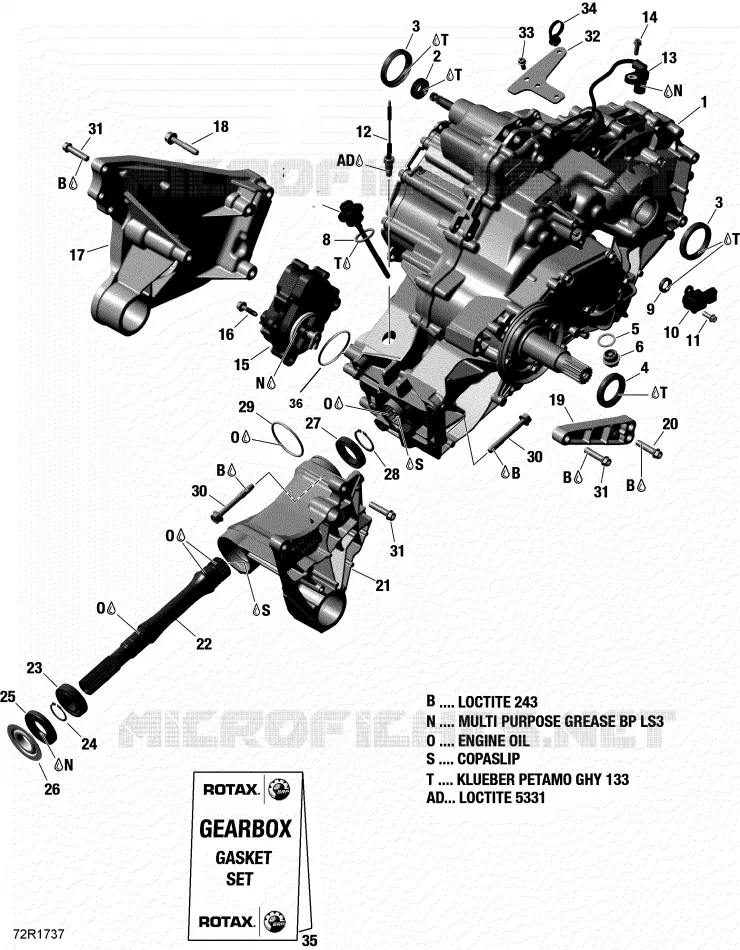

Parts Diagram
Parts Catalog
Transmission
by
Gear Box - 1
Gear Box And Components X3
3
3
32
25
36
16
27
22
19
5
8
23
6
4
30
2
17
26
24
13
14
31
31
31
12
15
28
21
7
11
35
29
20
34
9
33
18
10
1>14
GEAR BOX
420686504
3 974,30€ Unit Price incl. VAT
1>14
GEAR BOX REBUILT
421000729
703501155
3 751,91€ Unit Price incl. VAT
2
OIL SEAL
420250452
21,28€ Unit Price incl. VAT
3
OIL SEAL
420230137
27,76€ Unit Price incl. VAT
4
OIL SEAL
420950089
22,20€ Unit Price incl. VAT
5
CRUSH WASHER
420552280
4,42€ Unit Price incl. VAT
6
DRAIN PLUG M18 X 1.5
420840277
420840278
27,76€ Unit Price incl. VAT
7
OIL DIPSTICK
420256806
20,34€ Unit Price incl. VAT
8
O-RING
420631640
2,51€ Unit Price incl. VAT
9
OIL SEAL
420931802
9,12€ Unit Price incl. VAT
10
ANGLE ROTATION SENSOR
420666850
234,00€ Unit Price incl. VAT
11
FLANGED TORX SCREW M6 X 16
420440162
3,76€ Unit Price incl. VAT
12
POSITION SWITCH
420640192
50,00€ Unit Price incl. VAT
13
SPEED SENSOR
420265621
420265727
122,77€ Unit Price incl. VAT
14
FLANGED TORX SCREW M6 X 16
420440162
3,76€ Unit Price incl. VAT
15
ACTUATOR ASS Y
415129174
715900614
317,00€ Unit Price incl. VAT
16
FLANGED TORX SCREW M6 X 25
420441951
3,34€ Unit Price incl. VAT
17
ENGINE BRACKET MAG SIDE
420212636
703501134
184,01€ Unit Price incl. VAT
18
FLANGED TORX SCREW M8 X 45
420441931
420441932
2,20€ Unit Price incl. VAT
19
GEAR BOX BRACKET
420212640
420212641
33,32€ Unit Price incl. VAT
20
FLANGED TORX SCREW M8 X 35
420440861
3,84€ Unit Price incl. VAT
21
ENGINE BRACKET PTO SIDE
420212631
201,00€ Unit Price incl. VAT
22
DRIVE SHAFT
420637600
351,01€ Unit Price incl. VAT
23
BEARING BALL
420232341
420232342
30,54€ Unit Price incl. VAT
24
CIRCLIP
420945810
2,51€ Unit Price incl. VAT
25
OIL SEAL 25X52X7
420831178
44,44€ Unit Price incl. VAT
26
COVER WASHER
420626990
12,24€ Unit Price incl. VAT
27
BALL BEARING
420632275
50,00€ Unit Price incl. VAT
28
RETAINING RING
420945610
3,34€ Unit Price incl. VAT
29
O-RING
420450391
3,32€ Unit Price incl. VAT
30
FLANGED TORX SCREW M8 X 65
420440403
3,34€ Unit Price incl. VAT
31
FLANGED TORX SCREW M8 X 35
420440861
3,84€ Unit Price incl. VAT
32
SUPPORT PLATE
420651042
22,19€ Unit Price incl. VAT
33
FLANGED HEX. SCREW M6 X 12
420440147
2,38€ Unit Price incl. VAT
34
TIE RAP
420951345
3,34€ Unit Price incl. VAT
35
Crankcase Ass'y
TBD
Not Available
36
O-RING
293300117
5,18€ Unit Price incl. VAT

Find the detailed Gear Box And Components X3 CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
