01- ROTAX - MAGNETO AND 0 STARTER for Can-Am Maverick MAX XRS Turbo RR Smart Shox 9NPN, 9NPS from 2023

01- ROTAX - Gearbox Assy and Drive Shaft

01- ROTAX - Oil Pump

01- ROTAX - MAGNETO AND 0 STARTER

1

IGNITION COVER

420911055

207,00€ Unit Price incl. VAT

2

GASKET

420431640

36,34€ Unit Price incl. VAT

3

FLANGED TORX SCREW M6 X 30

420440647

2,38€ Unit Price incl. VAT

4

CRANKSHAFT POSITION SENSOR ASSY

420966570

123,70€ Unit Price incl. VAT

5

SEAL_O-RING

420431580

17,62€ Unit Price incl. VAT

6

FLANGED TORX SCREW M6 X 16

420440162

3,76€ Unit Price incl. VAT

7

TIE RAP

420866714

2,24€ Unit Price incl. VAT

8

STATOR PLATE 850W

420686363

428,32€ Unit Price incl. VAT

9

FLANGED TORX SCREW M6 X 30

420840891

3,24€ Unit Price incl. VAT

10

ROTOR ASSY 850W

420686194

348,01€ Unit Price incl. VAT

11

SPRAG CLUTCH

420659113

295,01€ Unit Price incl. VAT

12

SPRAG CLUTCH HOUSING

420659263

177,00€ Unit Price incl. VAT

13

FLANGED TORX SCREW M8 X 16

420440854

5,18€ Unit Price incl. VAT

14

FREE WHEEL GEAR, 64 TEETH

420434238

126,00€ Unit Price incl. VAT

15

SHIM

420627270

4,84€ Unit Price incl. VAT

16

SOCKET HEAD SCREW M16 X 35

420241549

10,10€ Unit Price incl. VAT

17

NEEDLE PIN

420229475

17,62€ Unit Price incl. VAT

18

DOUBLE GEAR 11/49 TEETH

420634741

222,00€ Unit Price incl. VAT

19

STARTER ASS Y

420893830

294,47€ Unit Price incl. VAT

20

O-RING

420250145

12,30€ Unit Price incl. VAT

21

FLANGED TORX SCREW M6 X 30

420440647

2,38€ Unit Price incl. VAT

22

CABLE CLAMP

420951650

5,54€ Unit Price incl. VAT

23

CARBON BRUSH SET

420881145

234,00€ Unit Price incl. VAT

24

WRAP_TIE 206 X 4.6

710003168

8,88€ Unit Price incl. VAT

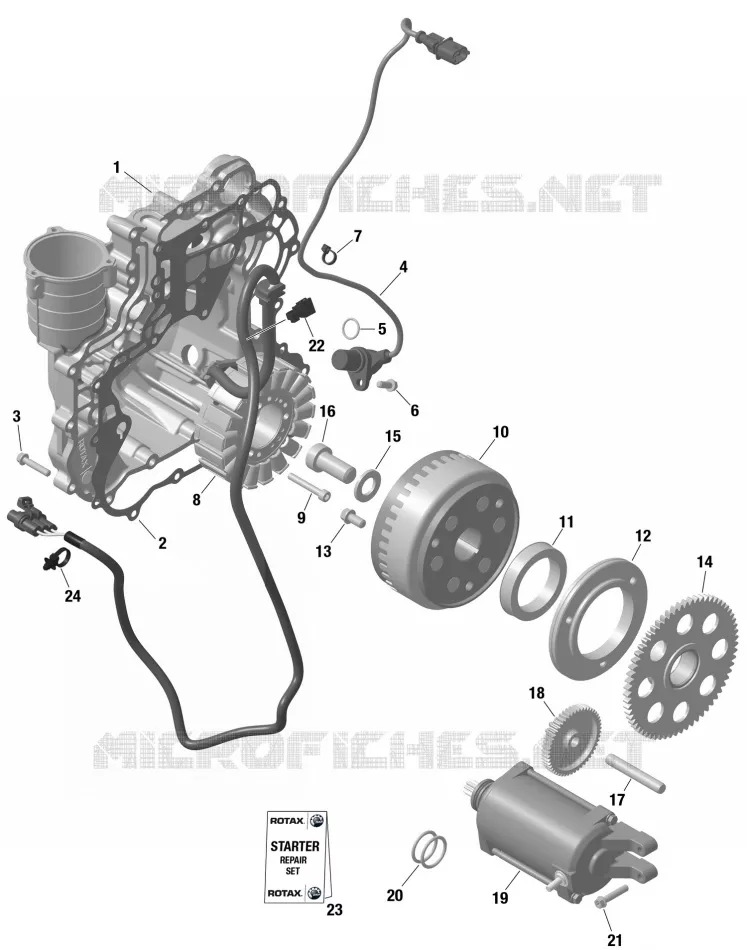

Find the detailed 01- ROTAX - MAGNETO AND 0 STARTER CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
