01- ROTAX - Gearbox Assy and Drive Shaft

1

GEAR BOX

420686788

3 751,91€ Unit Price incl. VAT

2

Not Available As Spare Parts

XXX

Not Available

3

Not Available As Spare Parts

XXX

Not Available

4

Not Available As Spare Parts

XXX

Not Available

5

CRUSH WASHER

420552280

4,42€ Unit Price incl. VAT

6

DRAIN PLUG M18 X 1.5

420840278

27,76€ Unit Price incl. VAT

7

OIL DIPSTICK

420256806

20,34€ Unit Price incl. VAT

8

O-RING

420631640

2,51€ Unit Price incl. VAT

9

MAGNET

420256000

21,28€ Unit Price incl. VAT

10

ALLEN SCREW M4 X 12

420440292

1,20€ Unit Price incl. VAT

11

O-RING

420230405

5,54€ Unit Price incl. VAT

12

ANGLE ROTATION SENSOR

420265122

95,00€ Unit Price incl. VAT

13

FLANGED TORX SCREW M6 X 16

420440162

3,76€ Unit Price incl. VAT

14

PLUG SCREW M10X10

420241905

3,32€ Unit Price incl. VAT

15

SPEED SENSOR

420265723

420265727

122,77€ Unit Price incl. VAT

16

FLANGED TORX SCREW M6 X 16

420440162

3,76€ Unit Price incl. VAT

17

ACTUATOR 2/4WD 4 PINS FEEDBACK

715900613

362,00€ Unit Price incl. VAT

18

FLANGED TORX SCREW M6 X 25

420441952

2,20€ Unit Price incl. VAT

19

ENGINE BRACKET MAG SIDE

420212638

189,00€ Unit Price incl. VAT

20

FLANGED TORX SCREW M8 X 45

420441932

2,20€ Unit Price incl. VAT

21

GEAR BOX BRACKET

420212639

33,32€ Unit Price incl. VAT

22

HEX. FLANGED SCREW M8 X 45

420641208

8,86€ Unit Price incl. VAT

23

GEAR BOX BRACKET

420212641

33,32€ Unit Price incl. VAT

24

FLANGED TORX SCREW M8 X 35

420440861

3,84€ Unit Price incl. VAT

25

ENGINE BRACKET PTO SIDE

420212631

201,00€ Unit Price incl. VAT

26

DRIVE SHAFT

420637600

351,01€ Unit Price incl. VAT

27

BALL BEARING

420232342

30,54€ Unit Price incl. VAT

28

CIRCLIP

420945810

2,51€ Unit Price incl. VAT

29

OIL SEAL 25X52X7

420831178

44,44€ Unit Price incl. VAT

30

COVER WASHER

420626990

12,24€ Unit Price incl. VAT

31

BALL BEARING

420632275

50,00€ Unit Price incl. VAT

32

RETAINING RING

420945610

3,34€ Unit Price incl. VAT

33

O-RING

420450393

3,32€ Unit Price incl. VAT

34

FLANGED TORX SCREW M8 X 65

420440403

3,34€ Unit Price incl. VAT

35

FLANGED TORX SCREW M8 X 35

420440861

3,84€ Unit Price incl. VAT

36

SUPPORT PLATE

420651042

22,19€ Unit Price incl. VAT

37

FLANGED TORX SCREW M6 X 16

420440162

3,76€ Unit Price incl. VAT

38

WRAP_TIE 212 X 4.6

420951346

1,62€ Unit Price incl. VAT

39

DOWEL PIN 10 X 13

420929670

12,76€ Unit Price incl. VAT

40

GASKET SET

420686602

117,00€ Unit Price incl. VAT

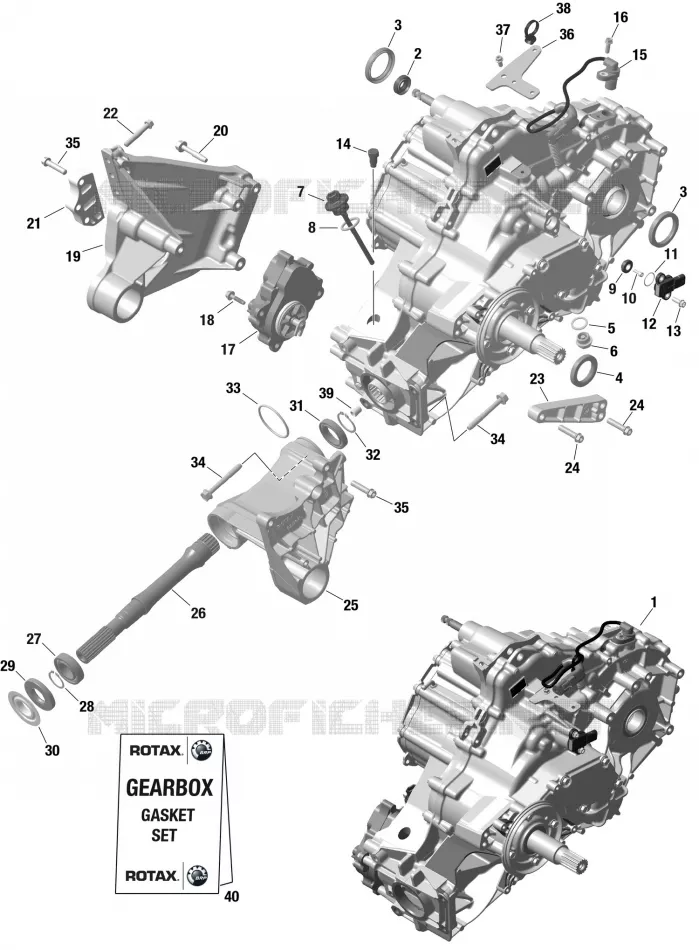

Find the detailed 01- ROTAX - Gearbox Assy and Drive Shaft CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
