Model
SPYDER
2
Year
2015
3
Trim
SPYDER ST-S SE5
4
Parts Catalog
Hydraulic Brake Pedal_22Y1506b
5
Parts Diagram
Parts Catalog
Hydraulic Brake _22Y1506a
by
Drive System, Front _12Y1506
Hydraulic Brake Pedal_22Y1506b
29
93
98
98
163
167
167
68
156
157
27
27
27
27
10
10
23
23
23
23
9
9
9
9
148
17
17
17
17
17
17
173
173
173
173
173
69
69
69
69
72
72
72
150
150
74
16
129
14
164
67
25
38
38
38
38
158
45
45
45
45
45
45
45
45
45
45
45
45
45
45
73
73
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
21
22
41
149
161
34
141
141
77
77
77
77
13
152
152
152
151
56
56
56
56
56
56
9
HEX. SCREW M10 X 65, SCOTCH GRIP
207206534
8,86€ Unit Price incl. VAT
10
SCREW-HEX.CAP ISO.4014 S.GRIP
207207544
5,18€ Unit Price incl. VAT
13
Not available for this vehicle. X
N/A
Not Available
14
HEX. FLANGED SCREW M10 X 40
207604054
8,66€ Unit Price incl. VAT
16
Not available for this vehicle. X
N/A
Not Available
17
HEX. FLANGED SCREW M6 X 12
210261280
210261250
2,24€ Unit Price incl. VAT
21
HEX. ELAST. FLANGED NUT M10
233201464
8,86€ Unit Price incl. VAT
22
Not available for this vehicle. X
N/A
Not Available
23
TORX HEAD SCREW M6 X 16
250000717
2,51€ Unit Price incl. VAT
25
Not available for this vehicle. X
N/A
Not Available
27
PIN
250400062
5,32€ Unit Price incl. VAT
29
Not available for this vehicle. X
N/A
Not Available
34
SPACER
293900087
10,00€ Unit Price incl. VAT
38
COTTER PIN
371800700
1,20€ Unit Price incl. VAT
41
Not available for this vehicle. X
N/A
Not Available
45
WASHER
503183800
3,88€ Unit Price incl. VAT
56
RUBBER PAD
705004933
23,12€ Unit Price incl. VAT
63
BEARING
705600458
22,20€ Unit Price incl. VAT
67
Not available for this vehicle. X
N/A
Not Available
68
Not available for this vehicle. X
N/A
Not Available
69
BUSHING
705600541
17,78€ Unit Price incl. VAT
72
Not available for this vehicle. X
N/A
Not Available
73
Not available for this vehicle. X
N/A
Not Available
74
Not available for this vehicle. X
N/A
Not Available
77
Not available for this vehicle. X
N/A
Not Available
93
CABLE PULLEY
705600768
705601973
106,01€ Unit Price incl. VAT
98
Levier Culbuteur. T, TS, TLTD
705600855
62,00€ Unit Price incl. VAT
129
Patte De Verrouillage
705601346
27,76€ Unit Price incl. VAT
141
Garde de Pédale. LTD
705601217
14,45€ Unit Price incl. VAT
148
Not available for this vehicle. X
N/A
Not Available
149
Not available for this vehicle. X
N/A
Not Available
150
Patte De Verrouillage
705601346
27,76€ Unit Price incl. VAT
151
Not available for this vehicle. X
N/A
Not Available
152
Douille. ST
705601276
8,88€ Unit Price incl. VAT
156
Pédale De Frein, Peint. ST SE5
705601285
104,39€ Unit Price incl. VAT
157
Brake Pedal, Painted. Package-SPE SE5. Ensemble SPE SE5
705601287
109,38€ Unit Price incl. VAT
158
Not available for this vehicle. X
N/A
Not Available
161
Not available for this vehicle. X
N/A
Not Available
163
Not available for this vehicle. X
N/A
Not Available
164
Not available for this vehicle. X
N/A
Not Available
167
Déflecteur. ST
705601335
78,00€ Unit Price incl. VAT
167b
Feuille Protectrice
705601341
9,98€ Unit Price incl. VAT
173
RUBBER STOPPER
708000759
4,74€ Unit Price incl. VAT

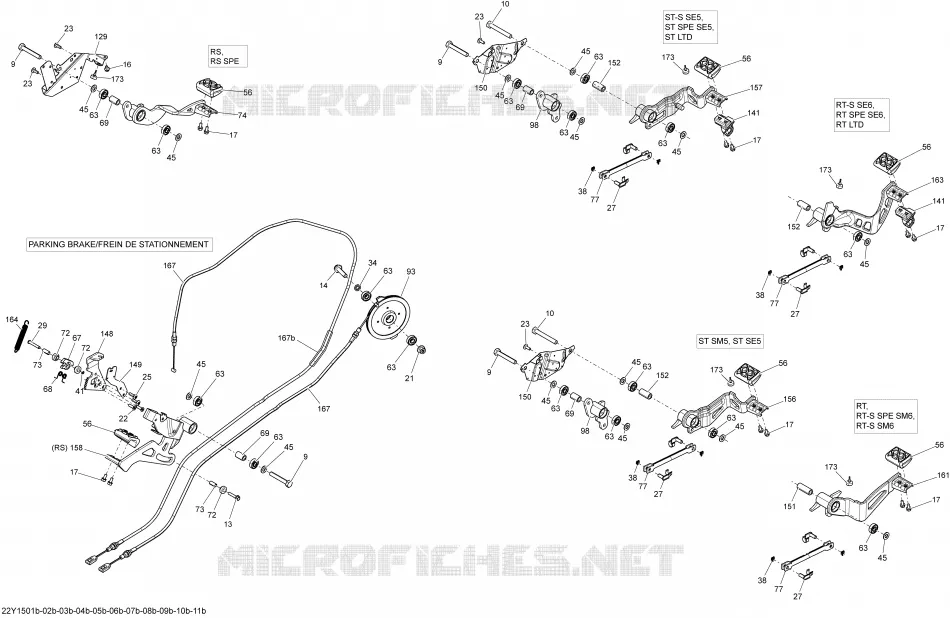

Find the detailed Hydraulic Brake Pedal_22Y1506b CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.
