Parts Catalog
Suspension, Front _24Y1506
5
Parts Diagram
Parts Catalog
Steering _23Y1506
by
Drive System, Rear _13Y1506
Suspension, Front _24Y1506
29
27
12
12
12
12
98
98
23
49
58
61
14
8
8
13
80
26
86
67
67
17
104
104
10
15
55
55
11
24
18
45
45
5
5
5
5
44
7
47
47
6
9
16
16
92
5
HEX.FLANGED SCREW M10 X 55
207605554
9,06€ Unit Price incl. VAT
6
HEX.FLANGED SCREW M10 X 70
207607056
4,84€ Unit Price incl. VAT
7
HEX. FLANGED SCREW M8 X 40
207684054
2,51€ Unit Price incl. VAT
8
FLANGED ELASTIC NUT M10
233201466
3,76€ Unit Price incl. VAT
9
ELASTIC FLANGE NUT M8
233281464
1,20€ Unit Price incl. VAT
10
ELASTIC FLANGE NUT M6
250100130
5,96€ Unit Price incl. VAT
11
HEX. FLANGED SCREW M6 X 60
250000397
250000778
5,18€ Unit Price incl. VAT
12
SCREW PLASTITE TYPE K-40 X 16 BZN
250000725
4,12€ Unit Price incl. VAT
13
CIRCLIP
293370035
3,10€ Unit Price incl. VAT
14
WRAP_TIE 188 X 4.6
414115200
0,12€ Unit Price incl. VAT
15
FLANGED ELASTIC NUT M10
233201466
3,76€ Unit Price incl. VAT
16
FLANGED ELASTIC NUT M10
233201466
3,76€ Unit Price incl. VAT
17
Not available for this vehicle. X
N/A
Not Available
18
Not available for this vehicle. X
N/A
Not Available
23
Spring. RS-S Model
706001108
67,98€ Unit Price incl. VAT
24
Not available for this vehicle. X
N/A
Not Available
26
Not available for this vehicle. X
N/A
Not Available
27
Amortisseur
706001939
453,01€ Unit Price incl. VAT
29
TIE ROD
706200671
27,76€ Unit Price incl. VAT
44
Not available for this vehicle. X
N/A
Not Available
45
Déflecteur d'Air Inférieur GA
706201319
27,35€ Unit Price incl. VAT
45
Déflecteur d'Air Inférieur DR
706201320
27,35€ Unit Price incl. VAT
47
Rouge Dragon-Déflecteur d'Air Sup. GA. Modèle RS S Blanc Satiné
706201925
146,36€ Unit Price incl. VAT
47
Rouge Dragon-Déflecteur d'Air Sup. DR. Modèle RS S Blanc Satiné
706201926
146,36€ Unit Price incl. VAT
49
BALL JOINT
706201371
706202507
73,00€ Unit Price incl. VAT
55
Not available for this vehicle. X
N/A
Not Available
58
Sway Bar. ST-LTD Model
706201421
101,51€ Unit Price incl. VAT
61
Coussinet De Bras De Suspension
706201519
15,54€ Unit Price incl. VAT
67
Stabilizer Bushing. RS, ST, ST-S Model
706201545
11,10€ Unit Price incl. VAT
80
Ball Joint
706201739
47,22€ Unit Price incl. VAT
86
Not available for this vehicle. X
N/A
Not Available
92
Not available for this vehicle. X
N/A
Not Available
98
Bras Supérieur GA
706201735
207,96€ Unit Price incl. VAT
98
Bras Supérieur DR
706201736
189,00€ Unit Price incl. VAT
104
Bras Inférieur GA
706201737
183,00€ Unit Price incl. VAT
104
Bras Inférieur DR
706201738
189,00€ Unit Price incl. VAT

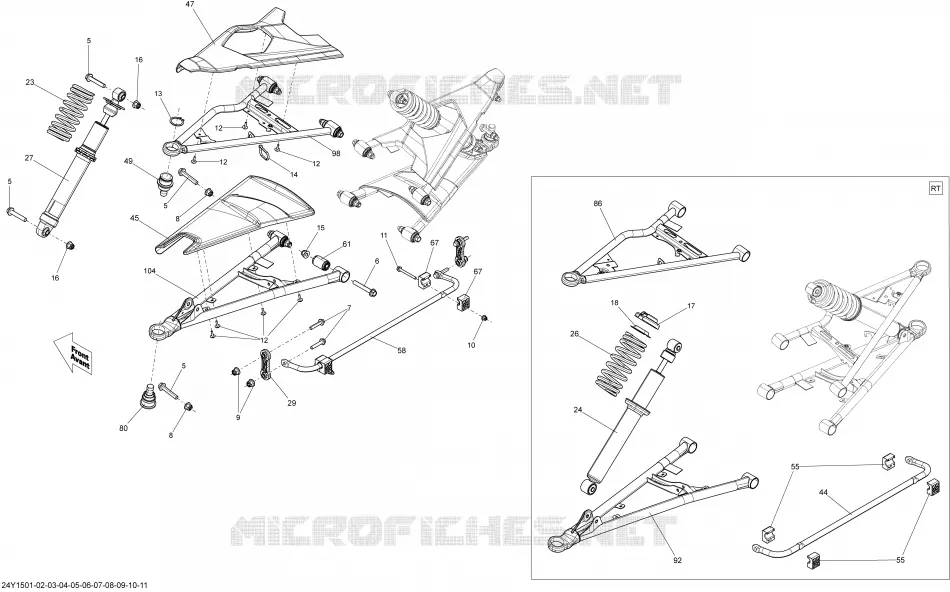

Find the detailed Suspension, Front _24Y1506 CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.
