1
Model
SPYDER
2
Year
2013
3
Trim
SPYDER RT / RT-S SE5
4
Parts Catalog
Engine SE5
5
Parts Diagram
Parts Catalog
Cooling System
by
Exhaust System
Engine SE5
570
20
370
500
425
425
410
820
460
460
510
380
710
670
330
330
715
80
80
435
435
22
690
690
640
660
660
40
40
40
40
700
650
650
800
440
490
430
30
30
30
30
480
680
680
390
60
540
15
810
810
10
10
450
70
70
70
530
520
495
580
560
420
420
320
400
400
25
10
Moteur 991. RT-LTD
707001066
9 763,69€ Unit Price incl. VAT
10
Moteur 991. RT-LTD
707001066
9 763,69€ Unit Price incl. VAT
15
Déflecteur
707000845
16,82€ Unit Price incl. VAT
20
HEX. FLANGED SCREW M6 X 12
207661244
2,44€ Unit Price incl. VAT
22
FLAT WASHER
224061121
0,64€ Unit Price incl. VAT
25
HEX. FLANGED SCREW M10 X 25
207602544
1,90€ Unit Price incl. VAT
30
HEX. SCREW M10 X 60
207006044
2,48€ Unit Price incl. VAT
40
HEX. FLANGED ELASTIC NUT M10
233201416
2,47€ Unit Price incl. VAT
60
HEX. FLANGED ELASTIC NUT M10
233201416
2,47€ Unit Price incl. VAT
70
HEX. FLANGED SCREW M6 X 20
207662044
2,38€ Unit Price incl. VAT
80
SPRING NUT U M6 X 1.0
250100113
250100198
2,48€ Unit Price incl. VAT
320
Boyau
707000484
Not Available
330
OETIKER CLAMP
293650186
4,43€ Unit Price incl. VAT
370
Support Moteur GA
707001238
23,62€ Unit Price incl. VAT
380
Support Moteur DR
707001239
23,62€ Unit Price incl. VAT
390
HEX. FLANGED SCREW M10 X 210
250000286
13,82€ Unit Price incl. VAT
400
Tampon d'Antivibratoire
707000814
88,62€ Unit Price incl. VAT
410
Extension
707001233
78,85€ Unit Price incl. VAT
420
HEX. FLANGED SCREW M8 X 20
207682046
2,20€ Unit Price incl. VAT
425
CARRIAGE BOLT M8 X 20
207782046
2,24€ Unit Price incl. VAT
430
HEX. FLANGED NUT M8
233081416
1,32€ Unit Price incl. VAT
435
HEX. FLANGED NUT M8
233081416
1,32€ Unit Price incl. VAT
440
Support De Moteur Avant
707001055
78,00€ Unit Price incl. VAT
450
Tampon d'Ancrage Avant
707001056
117,00€ Unit Price incl. VAT
460
HEX. FLANGED SCREW M10 X 25
207602544
1,90€ Unit Price incl. VAT
480
HEX. FLANGED SCREW M10 X 200
250000583
12,54€ Unit Price incl. VAT
490
HEX. FLANGED ELASTIC NUT M10
233201416
2,47€ Unit Price incl. VAT
495
HEX. FLANGED SCREW M8 X 20
207682046
2,20€ Unit Price incl. VAT
500
HEX. ELASTIC FLANGED NUT M8
233281416
1,66€ Unit Price incl. VAT
510
PRESSURE AND TEMPERATURE SENSOR
707000995
102,00€ Unit Price incl. VAT
520
HEX. FLANGED SCREW M6 X 20
207662084
1,88€ Unit Price incl. VAT
530
NUT HOUSING ASS Y
269500725
5,36€ Unit Price incl. VAT
530a
HEX. ELASTIC STOP NUT M6
232561600
1,32€ Unit Price incl. VAT
540
Filtre
707000586
6,66€ Unit Price incl. VAT
560
RUBBER STOPPER
708000758
14,66€ Unit Price incl. VAT
570
HEX. FLANGED SCREW M8 X 20
207682046
2,20€ Unit Price incl. VAT
580
HEX. FLANGED NUT M8
233081416
1,32€ Unit Price incl. VAT
640
Barre d'Accouplement
707001220
707001358
83,08€ Unit Price incl. VAT
650
HEX. FLANGED SCREW, M10 X 45 SCOTCH GRIP
207504546
7,94€ Unit Price incl. VAT
660
HEX. FLANGED ELASTIC NUT M10
233201416
2,47€ Unit Price incl. VAT
670
Barre d'Accouplement
707001219
55,72€ Unit Price incl. VAT
680
HEX. FLANGED SCREW, M10 X 45 SCOTCH GRIP
207504546
7,94€ Unit Price incl. VAT
690
HEX. FLANGED ELASTIC NUT M10
233201416
2,47€ Unit Price incl. VAT
700
Support d'Admission
707000756
13,33€ Unit Price incl. VAT
710
HEX. FLANGED SCREW M6 X 12
207661244
2,44€ Unit Price incl. VAT
715
BRACKET
415052400
5,00€ Unit Price incl. VAT
800
Attache
707800469
27,26€ Unit Price incl. VAT
810
HEX. FLANGED SCREW M6 X 20
207662044
2,38€ Unit Price incl. VAT
820
SPRING NUT U M6 X 1.0
250100113
250100198
2,48€ Unit Price incl. VAT

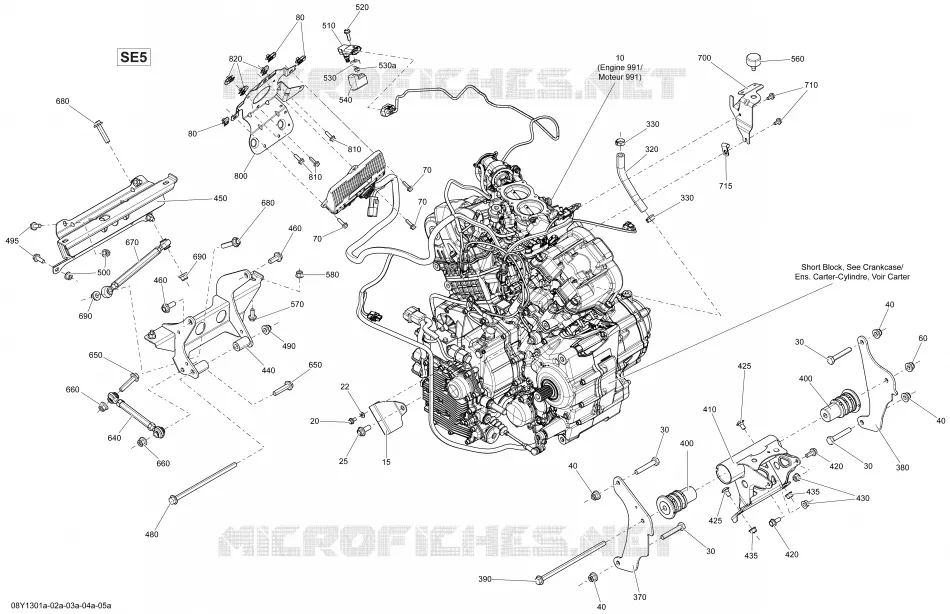

Find the detailed Engine SE5 CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
