1
Model
SPYDER
2
Year
2013
3
Trim
SPYDER RT / RT-S SE5
4
Parts Catalog
Fuel System
5
Parts Diagram
Parts Catalog
Air Intake
by
Oil System
Fuel System
59
6
25
38
48
3
35
13
1
15
46
2
53
37
43
54
50
49
34
36
20
57
57
12
12
12
12
11
11
11
11
52
18
45
40
17
17
17
58
51
21
32
42
24
5
5
26
44
8
47
10
29
4
33
41
41
9
9
9
9
9
7
7
39
23
22
19
1
HEX. FLANGED SCREW M10 X 25
207602544
1,90€ Unit Price incl. VAT
2
HEX. FLANGED SCREW M6 X 16
207661644
0,88€ Unit Price incl. VAT
3
HEX. FLANGED SCREW M6 X 25
207662544
0,76€ Unit Price incl. VAT
4
FLAT WASHER
224060201
1,40€ Unit Price incl. VAT
5
HEX. FLANGED ELASTIC NUT M6
233261414
1,73€ Unit Price incl. VAT
6
RETAINER
275500527
3,32€ Unit Price incl. VAT
7
OETIKER CLAMP
293650025
3,52€ Unit Price incl. VAT
8
OETIKER CLAMP
293650025
3,52€ Unit Price incl. VAT
9
OETIKER CLAMP
293650025
3,52€ Unit Price incl. VAT
10
OETIKER CLAMP
293650046
3,28€ Unit Price incl. VAT
11
OETIKER CLAMP
293650047
3,70€ Unit Price incl. VAT
12
OETIKER CLAMP
293650125
3,70€ Unit Price incl. VAT
13
GROMMET
293720053
709000582
5,36€ Unit Price incl. VAT
15
WRAP_TIE 173 X 4.6
293750009
1,64€ Unit Price incl. VAT
17
UNIVERSAL SPRING CLAMP
414415200
1,00€ Unit Price incl. VAT
18
TUBING 16 MM
415080000
9,55€ Unit Price incl. VAT
19
OPEN CLAMP
513033047
5,92€ Unit Price incl. VAT
20
TUBING 16 MM
415080000
9,55€ Unit Price incl. VAT
21
Gaine
513033412
5,18€ Unit Price incl. VAT
22
TUBING 16 MM
415080000
9,55€ Unit Price incl. VAT
23
TUBING 16 MM
415080000
9,55€ Unit Price incl. VAT
24
Raccord en Y
513033672
1,54€ Unit Price incl. VAT
25
CANISTER_CHARCOAL
709000090
106,01€ Unit Price incl. VAT
26
FUEL FILTER
709000100
513034047
27,76€ Unit Price incl. VAT
29
Réservoir À Essence
709000314
219800298
679,01€ Unit Price incl. VAT
29a
Module De Pompe À Essence
709000088
722,02€ Unit Price incl. VAT
32
BLEED VALVE
709000443
84,00€ Unit Price incl. VAT
33
FEMALE QUICK FITTING ASS Y
709000125
17,39€ Unit Price incl. VAT
34
Tapis
709000130
16,64€ Unit Price incl. VAT
35
Raccord Banjo
709000137
23,62€ Unit Price incl. VAT
36
Raccord Rapide Femelle
709000141
293710192
14,45€ Unit Price incl. VAT
37
Feuille Réflectrice
709000157
709001374
22,19€ Unit Price incl. VAT
38
Feuille Réflectrice
709000158
28,18€ Unit Price incl. VAT
39
Feuille Réflectrice
709000159
28,18€ Unit Price incl. VAT
40
BUSHING
709000162
16,66€ Unit Price incl. VAT
41
SEAL KIT
219800248
42,58€ Unit Price incl. VAT
42
Boyau Formé
709000475
14,28€ Unit Price incl. VAT
43
HOSE 6.35MM ID - 884MM
513033565
35,40€ Unit Price incl. VAT
44
FUEL LINE 7.9 MM, METER
415129502
16,78€ Unit Price incl. VAT
45
Boyau À Essence 6.4 mm, Mètre
415129501
Not Available
46
Boyau Formé d'Absorbeur De Vapeurs De Carburant
709000277
33,32€ Unit Price incl. VAT
47
Boyau Formé
709000365
709000652
19,98€ Unit Price incl. VAT
48
Support De Filtre À Essence
709000384
38,62€ Unit Price incl. VAT
49
HOSE 6.35MM ID - 884MM
513033565
35,40€ Unit Price incl. VAT
50
HOSE 6.35MM ID - 884MM
513033565
35,40€ Unit Price incl. VAT
51
Boyau Formé
709000475
14,28€ Unit Price incl. VAT
52
HOSE 6.35MM ID - 884MM
513033565
35,40€ Unit Price incl. VAT
53
ROLLOVER VALVE
709000413
64,00€ Unit Price incl. VAT
54
Bouchon De Carburant
709000414
709000660
17,76€ Unit Price incl. VAT
57
Réducteur De Débit
709000430
30,52€ Unit Price incl. VAT
58
Boyau Formé
709000475
14,28€ Unit Price incl. VAT
59
Boyau À Essence 6.4 mm, Mètre
415129501
Not Available

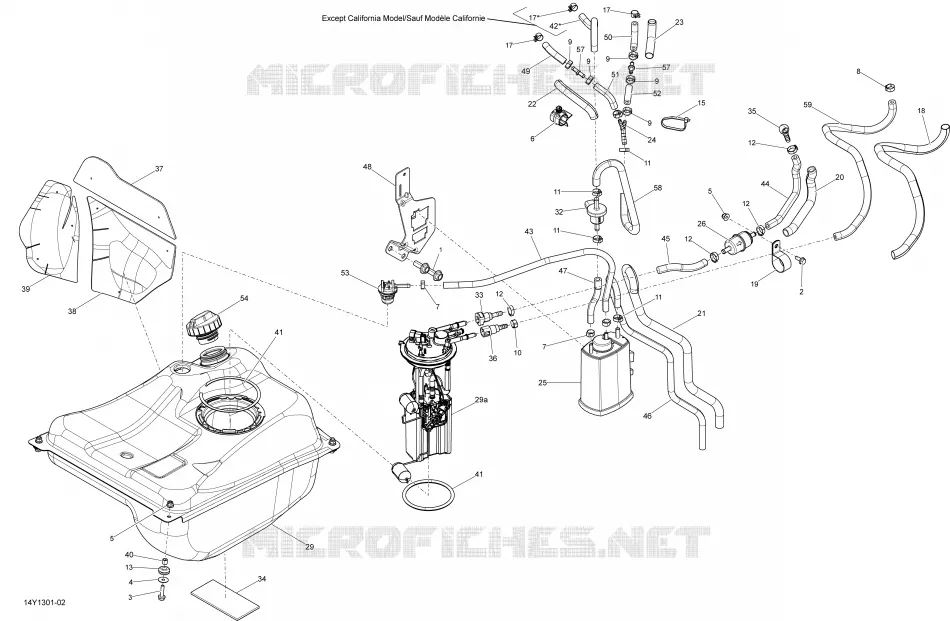

Find the detailed Fuel System CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
