Body And Accessories 6X6 MAX - 1000 EFI - North america - Front for Can-Am OUTLANDER MAX 6X6 1000 from 2019

Frame - Rear Parts 2

Body And Accessories 6X6 MAX - 1000 EFI - North america - Middle

FLANGED ELASTIC NUT M6

233261434

5,18€ Unit Price incl. VAT

HEX. FLANGED ELASTIC NUT M10

233201434

2,34€ Unit Price incl. VAT

CARGO RACK CENTER SUPPORT

705006812

73,00€ Unit Price incl. VAT

HEX. FLANGED SCREW M8 X 20

207682044

1,32€ Unit Price incl. VAT

HEX. FLANGED SCREW M8 X 25, SCOTCH GRIP

207582544

1,88€ Unit Price incl. VAT

HEX. FLANGED ELASTIC NUT M8

233281434

2,51€ Unit Price incl. VAT

150

LH AIR DEFLECTOR

705006134

29,62€ Unit Price incl. VAT

160

RH AIR DEFLECTOR

705006135

27,76€ Unit Price incl. VAT

170

DASH SUPPORT KIT

715006101

72,00€ Unit Price incl. VAT

180

RUBBER BUMPER

293830005

9,17€ Unit Price incl. VAT

200

SHIFTER GATE KIT

715004085

33,32€ Unit Price incl. VAT

220

HEX. FLANGED SCREW M6 X 30, SCOTCH GRIP

207563034

2,51€ Unit Price incl. VAT

230

FLAT WASHER

224061201

1,58€ Unit Price incl. VAT

250

FASCIA

705012822

135,00€ Unit Price incl. VAT

260

MAGNESIUM LH FRONT FENDER KIT

715006056

458,00€ Unit Price incl. VAT

270

MAGNESIUM RH FRONT FENDER KIT

715006071

458,00€ Unit Price incl. VAT

280

SUPPORT_BUMPER F PAINTED

705009253

705016893

391,01€ Unit Price incl. VAT

290

LOWER FENDER SUPPORT

705004565

7,76€ Unit Price incl. VAT

300

MAGNESIUM HOOD KIT

715006092

465,24€ Unit Price incl. VAT

310

RACK KIT

715002784

223,01€ Unit Price incl. VAT

320

TUBE

705005469

705016640

42,58€ Unit Price incl. VAT

330

TUBE

705005470

705016092

47,22€ Unit Price incl. VAT

340

LUGAGE RACK MOULDING

705004523

27,76€ Unit Price incl. VAT

350

LH SUPPORT LUGGAGE RACK ASS Y

705011553

22,20€ Unit Price incl. VAT

350a

ELASTIC NUT HOUSING M8

269501943

7,76€ Unit Price incl. VAT

350b

HEX. ELASTIC NUT M8, BRASS

232581200

1,85€ Unit Price incl. VAT

350c

HEX. ELASTIC STOP NUT M6

232561600

1,32€ Unit Price incl. VAT

360

RH SUPPORT LUGGAGE RACK ASS Y

705011555

27,25€ Unit Price incl. VAT

360a

ELASTIC NUT HOUSING M8

269501943

7,76€ Unit Price incl. VAT

360b

HEX. ELASTIC NUT M8, BRASS

232581200

1,85€ Unit Price incl. VAT

360c

HEX. ELASTIC STOP NUT M6

232561600

1,32€ Unit Price incl. VAT

370

TORX SCREW M6 X 35 BZN

250000646

1,12€ Unit Price incl. VAT

375

RIVET_POP 3/16 X ,550 BLACK

293150104

1,18€ Unit Price incl. VAT

380

WASHER

517124300

0,22€ Unit Price incl. VAT

390

INSERT_THREADED M6 X 1.0

250100199

3,64€ Unit Price incl. VAT

395

HEX. FLANGED SCREW M6 X 16, SCOTCH GRIP

207561644

2,24€ Unit Price incl. VAT

405

HEX. FLANGED PT SCREW K40 X 10

241140060

1,66€ Unit Price incl. VAT

415

HEX. FLANGED SCREW M6X70, SCOTCH GRIP

207567044

2,51€ Unit Price incl. VAT

420

TORX SCREW M8 X 30

250000886

2,51€ Unit Price incl. VAT

430

HEX. FLANGED SCREW M8 X 35

207683534

2,51€ Unit Price incl. VAT

460

CLIP

517302785

1,00€ Unit Price incl. VAT

470

PLASTITE SCREW TYPE K-40, M4 X 25

250000101

4,12€ Unit Price incl. VAT

491

HEAT SHIELD

707002456

4,43€ Unit Price incl. VAT

492

HEAT SHIELD

707002457

4,43€ Unit Price incl. VAT

493

HEAT SHIELD

707002458

22,19€ Unit Price incl. VAT

494

HEAT SHIELD

707002459

4,43€ Unit Price incl. VAT

495

HEAT SHIELD

707002460

5,54€ Unit Price incl. VAT

496

HEAT SHIELD

707002461

4,43€ Unit Price incl. VAT

497

HEAT SHIELD

707002462

4,43€ Unit Price incl. VAT

498

HEAT SHIELD

707002583

5,54€ Unit Price incl. VAT

499

HEAT SHIELD

707002464

4,43€ Unit Price incl. VAT

570

PUSH NUT

732610072

2,46€ Unit Price incl. VAT

590

TORX SCREW M6 X 20

250000722

1,92€ Unit Price incl. VAT

600

FRONT GUARD PLATE

705006299

57,40€ Unit Price incl. VAT

610

SOCKET SCREW M10 X 30

205003044

3,74€ Unit Price incl. VAT

640

RING

705004497

5,76€ Unit Price incl. VAT

660

PANEL_BODY LH B-321

705011909

345,01€ Unit Price incl. VAT

670

PANEL_BODY RH B-321

705011910

345,01€ Unit Price incl. VAT

675

PHILLIPS SCREW K40 X 16

250000723

1,16€ Unit Price incl. VAT

680

LH EXTENSION PANNEL

705004147

715007008

31,46€ Unit Price incl. VAT

690

ENGINE COVER

705003444

27,25€ Unit Price incl. VAT

700

GAUGE SUPPORT

705007095

50,00€ Unit Price incl. VAT

710

CONSOLE CAP KIT

715006098

38,35€ Unit Price incl. VAT

720

GROMMET

705003264

4,50€ Unit Price incl. VAT

730

RH REAR INNER FENDER

705011462

27,25€ Unit Price incl. VAT

740

PROTECTOR_WHEEL ARCH FR

705011463

21,18€ Unit Price incl. VAT

750

LH REAR INNER FENDER

705013111

27,25€ Unit Price incl. VAT

760

PROTECTOR_WHEEL ARCH FL

705011465

705017001

19,98€ Unit Price incl. VAT

770

TUFLOK PLASTIC RIVET

293150230

1,74€ Unit Price incl. VAT

780

RUBBER COVER

293250242

7,78€ Unit Price incl. VAT

820

BUMPER F B-160 KIT G2

715004837

261,24€ Unit Price incl. VAT

822a

CARRIAGE BOLT, M8 X 20

207782044

2,24€ Unit Price incl. VAT

822b

TORX SCREW M8 X 30

250000886

2,51€ Unit Price incl. VAT

822c

HEX. FLANGED ELASTIC NUT M8

233281434

2,51€ Unit Price incl. VAT

840

XXXX

Not Available

850

XXXX

Not Available

860

XXXX

Not Available

1040

ASSY BOX

708200408

83,08€ Unit Price incl. VAT

1040a

CLIP

269501945

18,62€ Unit Price incl. VAT

1040b

Joint de Néoprène

715900411

Not Available

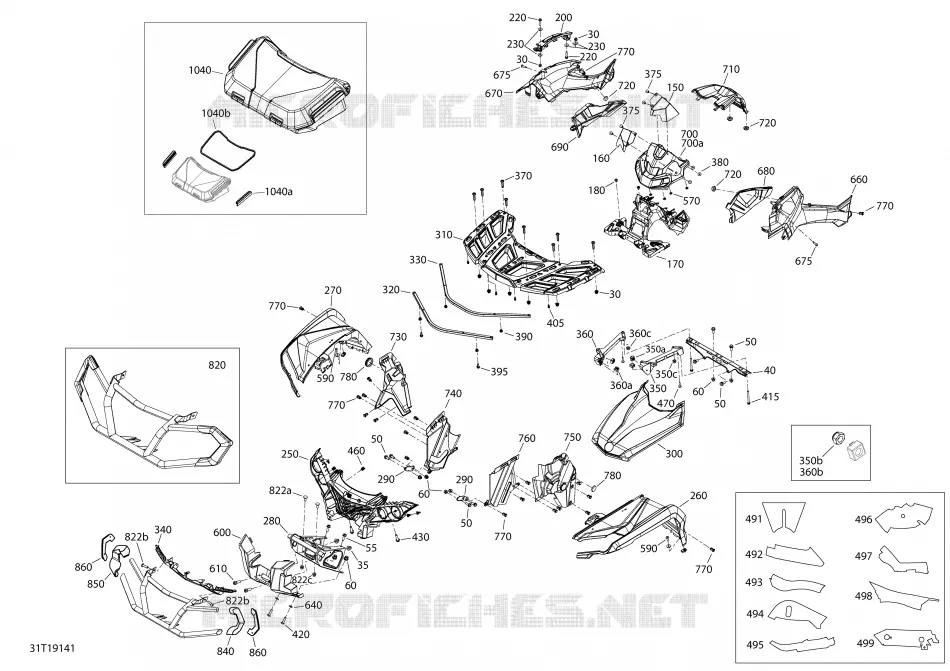

Find the detailed Body And Accessories 6X6 MAX - 1000 EFI - North america - Front CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
