Cylinder Head And Intake Manifold for Can-Am MINI DS 90 4 TEMPS JAUNE from 2008

Non Disponible En Pièces de Remplacement

NASP/NDPR

Not Available

1-1

CYLINDER HEAD

V12201CJF010

V12201CJF020LL

Not Available

1-2

CYLINDER HEAD GASKET

V12251CJF000

V12251CJF020

Not Available

1-3

VALVE STEM SEAL

V12209GYK000

Not Available

1-4

VALVE SPRING SEAT

V14775GYK000

Not Available

1-5

SPRING VALVE OUTER

V14751GYK000

Not Available

1-6

SPRING VALVE INNER

V14761GYK000

Not Available

1-7

RETAINER VALVE SPRING

V14771GYK000

Not Available

1-8

COTTER

V14781GYK000

Not Available

1-9

INTAKE VALVE

V14711CJF000

V14711CJF010

Not Available

1-10

VALVE EX.

V14721CJF000

Not Available

1-11

LH COVER CYLINDER HEAD

V12341CJF010

V12341CJF030LL

Not Available

1-12

CYLINDER HEAD COVER GASKET

V12395CJF000

V12395CJF010

Not Available

1-13

RH COVER CYLINDER HEAD

V12331CJF000

V12331CJF010LL

Not Available

1-14

CYLINDER HEAD COVER GASKET RH.

V12394CJF000

V12394CJF010

Not Available

1-15

HEXAGONAL FLANGE BOLT

V9600006110

Not Available

1-16

WASHER FLAT

A941010612010

Not Available

1-17

HEX. FLANGED SCREW M6 X 20

207662044

2,38€ Unit Price incl. VAT

1-18

VALVE COVER

V12301CJF000

Not Available

1-19

GASKET

V12391CJF000

V12391CJF020

Not Available

1-20

CAP NUT

V9030406000

V9030406000010LL

Not Available

1-21

WASHER FLAT

V941010612016

Not Available

1-22

CAP TAPPET ADJ.

V12361CJF000

V12361CJF030LL

Not Available

1-23

O-RING

V91330GYK000

V12361CJF030LL

Not Available

1-24

WASHER

V941040714015

V941050614016

Not Available

1-25

BREATHER

V11224DGF000

V11224DGF010

Not Available

CAMSHAFT

V14400CJF010

Not Available

ROCKER ARM

V14431CJF000

V14431CJF030

Not Available

ROCKER ARM SHAFT

V14452CJF000

V14452CJF010

Not Available

VALVE GAP ADJUSTING NUT

V90206GYK000

Not Available

VALVE GAP ADJUSTING SCREW

V90012GYK000

V14431CJF030

Not Available

TIMER SPROCKET

V14321CJF020

V14321CJF030

Not Available

HEXAGONAL BOLT

V920100501208

207151244

1,06€ Unit Price incl. VAT

STUD BOLT

V9270006033

V9270006033LL

Not Available

SPARK PLUG NGK CR7HSA

V9805656723

219703175

6,46€ Unit Price incl. VAT

INTAKE MANIFOLD

V17111CJF04A

V17111CJF07A

Not Available

GASKET

V16229GYK000

V16229GYK010

Not Available

HEX. FLANGED SCREW M6 X 20

207662044

2,38€ Unit Price incl. VAT

HEX. FLANGED SCREW M6 X 25

207662544

0,76€ Unit Price incl. VAT

DOWEL PIN

A9430108120

Not Available

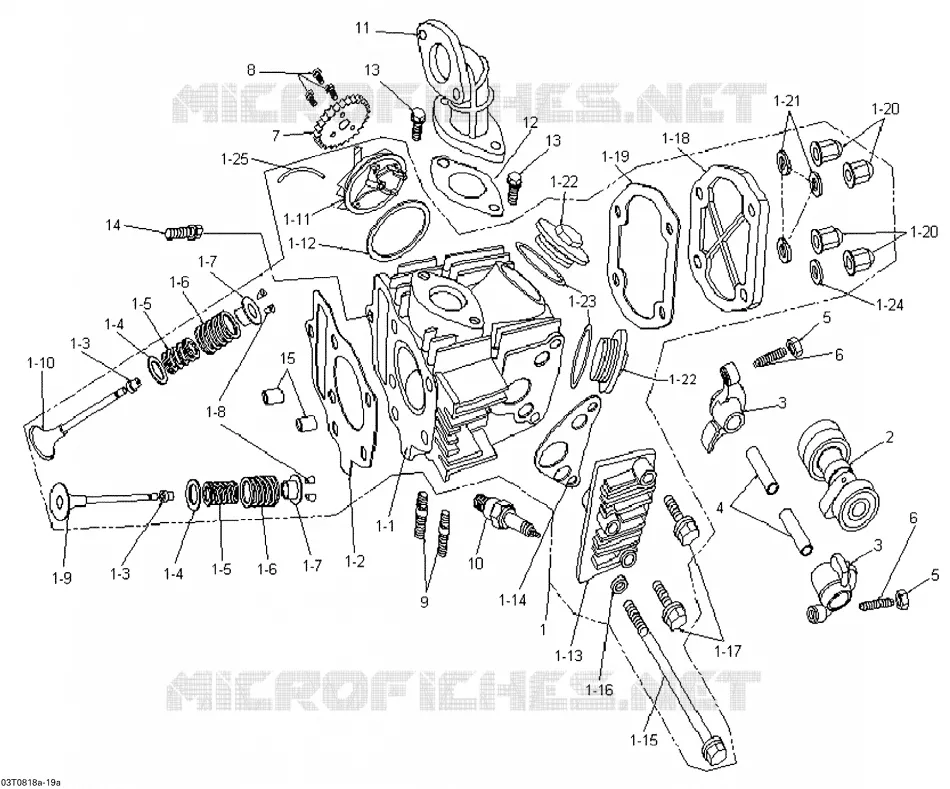

Find the detailed Cylinder Head And Intake Manifold CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
