Engine Lubrication - 570 EFI for Can-Am OUTLANDER X MR 570 L from 2017

Engine Cooling - 570 EFI

Air Intake Manifold and Throttle Body - 570 EFI

Engine Lubrication - 570 EFI

1

COPPER WASHER

420250640

1,16€ Unit Price incl. VAT

2

MAGNETIC DRAIN PLUG

420241786

420241787

20,48€ Unit Price incl. VAT

3

OIL SIEVE

420256322

33,32€ Unit Price incl. VAT

4

COVER SIEVE

420210661

16,46€ Unit Price incl. VAT

5

TAPPING SCREW M5 X 16

420941925

420941926

0,54€ Unit Price incl. VAT

6

OIL FILTER

420256188

16,66€ Unit Price incl. VAT

7

O-RING

420230920

420230923

3,72€ Unit Price incl. VAT

8

OIL FILTER COVER

420612132

420612135

13,46€ Unit Price incl. VAT

9

FLANGED TORX SCREW M6 X 25

420641238

3,84€ Unit Price incl. VAT

10

OIL PRESSURE SWITCH

420256915

46,60€ Unit Price incl. VAT

11

O-RING

420631640

2,51€ Unit Price incl. VAT

12

OIL DIPSTICK

420256802

20,34€ Unit Price incl. VAT

13>14

IDLE GEAR ASS Y, 28 TEETH

420434307

106,01€ Unit Price incl. VAT

14

OIL SEAL

420430555

23,36€ Unit Price incl. VAT

15

OIL PUMP ROTOR

420256348

89,00€ Unit Price incl. VAT

16

NEEDLE PIN

420232731

4,68€ Unit Price incl. VAT

17

OIL PUMP SHAFT

420237059

34,46€ Unit Price incl. VAT

18

OIL PUMP COVER

420210641

420210646

56,86€ Unit Price incl. VAT

19

TORX SCREW M5 X 16

420640821

420640823

2,24€ Unit Price incl. VAT

20

THRUST WASHER

420827590

4,68€ Unit Price incl. VAT

21

NEEDLE PIN

420232431

420232432

5,26€ Unit Price incl. VAT

22

OIL PUMP GEAR, 33 TEETH

420434320

16,36€ Unit Price incl. VAT

23

CIRCLIP

504152282

3,76€ Unit Price incl. VAT

24

IDLE GEAR, 38 TEETH

420434300

16,36€ Unit Price incl. VAT

25

LOCATION PIN M6 X 50

420229302

3,76€ Unit Price incl. VAT

26

PRESSURE RELIEF VALVE

420656370

22,34€ Unit Price incl. VAT

27

COMPRESSION SPRING

420939480

420939481

5,64€ Unit Price incl. VAT

28

HOUSING VALVE

420256486

420256487

8,76€ Unit Price incl. VAT

29

ANNEAU ETANCHE *GASKET RING

420650465

15,25€ Unit Price incl. VAT

30

SCREW PLUG

420640270

420640271

16,36€ Unit Price incl. VAT

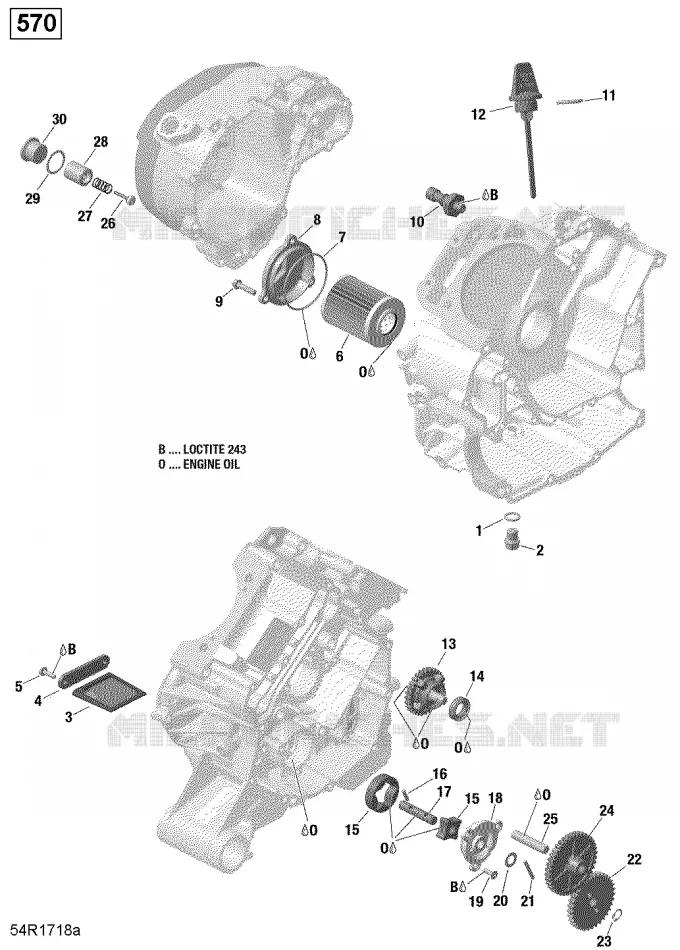

Find the detailed Engine Lubrication - 570 EFI CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
