1
Model
OUTLANDER
2
Year
2007
3
Trim
OUTLANDER XT 650
4
Parts Catalog
Gear Box And Components
5
Parts Diagram
Parts Catalog
Gear Box Output Shaft
by
Air Intake Silencer
Gear Box And Components
19
26
2
2
4
16
14
3
25
35
7
30
24
18
38
42
9
17
44
11
23
45
12
32
36
8
34
20
43
27
15
6
10
41
28
22
29
5
33
31
31
39
37
1a
LH GEAR HOUSING ASS Y
420611415
420212215
645,01€ Unit Price incl. VAT
1b
Not Available As Spare Parts
XXX
Not Available
2
CENTER PIN 8 X 12
420632010
4,68€ Unit Price incl. VAT
3
Not Available As Spare Parts
XXX
Not Available
4
NEEDLE BEARING
420232652
420232654
24,06€ Unit Price incl. VAT
5
Not Available As Spare Parts
XXX
Not Available
6
BALL BEARING
420632290
420632295
54,62€ Unit Price incl. VAT
7
BEARING BALL
420932825
420932822
35,50€ Unit Price incl. VAT
8
TORX SCREW M6 X 16
420241529
420241522
2,24€ Unit Price incl. VAT
9
Not Available As Spare Parts
XXX
Not Available
10
OIL SEAL
420950087
420950089
22,20€ Unit Price incl. VAT
11
SUPPORT
420611450
420611453
114,00€ Unit Price incl. VAT
12
SOCKET HEAD SCREW M6 X 30
205063044
2,04€ Unit Price incl. VAT
13a
INDEX LEVER ASS Y
420248530
420227717 , 420239561 , 420248526 , 420827300
Not Available
13b
Not Available As Spare Parts
XXX
Not Available
14
Not Available As Spare Parts
XXX
Not Available
15
Not Available As Spare Parts
XXX
Not Available
16
Not Available As Spare Parts
XXX
Not Available
17
SOCKET HEAD SCREW M6 X 55
420240331
420240332
6,67€ Unit Price incl. VAT
18
PARKING LOCK LEVER ASS Y
420257652
703501128
189,00€ Unit Price incl. VAT
19
PLAIN WASHER
420227937
15,54€ Unit Price incl. VAT
20
FLANGED TORX SCREW M8 X 35
420641188
8,76€ Unit Price incl. VAT
21a
GEAR SET
420281620
420232654 , 420434532 , 420434547 , 420434551 , 420434563 , 420934102 , 420434582 , 420620674 , 420620681 , 420632070 , 420845772 , 420427011
Not Available
21b
Not Available As Spare Parts
XXX
Not Available
21c
NEEDLE BEARING
420232652
420232654
24,06€ Unit Price incl. VAT
21d
Not Available As Spare Parts
XXX
Not Available
21e
NEEDLE BEARING
420632070
30,29€ Unit Price incl. VAT
22
Not Available As Spare Parts
XXX
Not Available
23
RETAINING RING
420845771
420845772
7,78€ Unit Price incl. VAT
24
Not Available As Spare Parts
XXX
Not Available
25
THRUST WASHER
420944479
420427011
6,66€ Unit Price incl. VAT
26
Not Available As Spare Parts
XXX
Not Available
27
NEEDLE BEARING
420232652
420232654
24,06€ Unit Price incl. VAT
28
Not Available As Spare Parts
XXX
Not Available
29
NEEDLE BEARING
420632070
30,29€ Unit Price incl. VAT
30
Not Available As Spare Parts
XXX
Not Available
31
RETAINING RING
420845771
420845772
7,78€ Unit Price incl. VAT
32
Not Available As Spare Parts
XXX
Not Available
33
THRUST WASHER SET
420281308
420281302
101,00€ Unit Price incl. VAT
34
NEEDLE BEARING
420832240
24,06€ Unit Price incl. VAT
35
FORK SPINDLE
420258381
420258383
27,76€ Unit Price incl. VAT
36
SHIFT FORK
420257611
420657311
106,01€ Unit Price incl. VAT
37
SHIFT FORK
420257621
420657321
101,00€ Unit Price incl. VAT
38
SHIFT DRUM
420257578
703501128
189,00€ Unit Price incl. VAT
39
ISOLATING WASHER
420626091
420626092
7,76€ Unit Price incl. VAT
40a
SHIFT SHAFT ASS Y
420620657
106,43€ Unit Price incl. VAT
40b
Not Available As Spare Parts
XXX
Not Available
41
Not Available As Spare Parts
XXX
Not Available
42
Not Available As Spare Parts
XXX
Not Available
43
FLANGED TORX SCREW M6 X 35
420641258
4,00€ Unit Price incl. VAT
44
O-RING
420631610
420631612
5,06€ Unit Price incl. VAT
45
DISTANCE RING
420247117
420647267
50,00€ Unit Price incl. VAT
B
ADHESIVE LOCTITE 243
293800060
25,72€ Unit Price incl. VAT
N
LUBRICANT LOCTITE SUPER LUBE
293550030
Not Available
O
Not Available As Spare Parts
XXX
Not Available
P
SEALANT LOCTITE SI 5910
293800081
70,38€ Unit Price incl. VAT

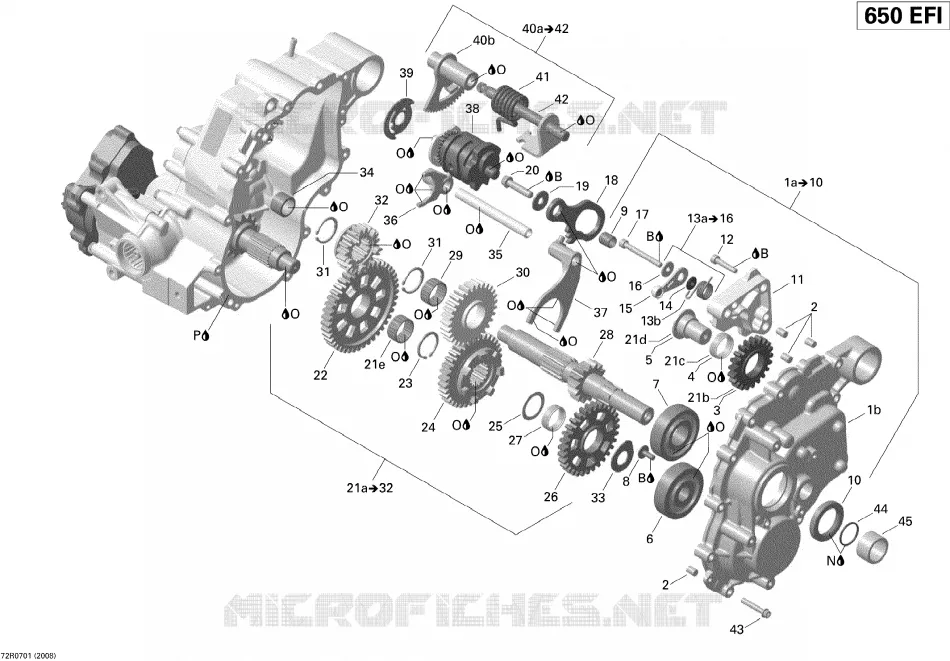

Find the detailed Gear Box And Components CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
