Exhaust System for Can-Am OUTLANDER MAX XT 650 from 2006

Exhaust System

1

GASKET

707600317

12,76€ Unit Price incl. VAT

2

HEX. FLANGED NUT M8

233081416

1,32€ Unit Price incl. VAT

3

FRONT TUNED PIPE

707600266

66,67€ Unit Price incl. VAT

4

REAR TUNED PIPE

707600270

703500708 , 703500709 , 707600505

Not Available

5

SPRING

415107100

7,52€ Unit Price incl. VAT

6

FRONT HEAT SHIELD

707600342

707600889

44,44€ Unit Price incl. VAT

7

NORMA CLAMP

293650098

5,18€ Unit Price incl. VAT

8

TUNED PIPE PROTECTOR

707600318

12,70€ Unit Price incl. VAT

9

FLAT WASHER

391302000

250200082

0,50€ Unit Price incl. VAT

10

HEX. FLANGED SCREW M6 X 12

250000073

2,62€ Unit Price incl. VAT

11

HEX. FLANGED SCREW M6 X 12

210261280

210261250

2,24€ Unit Price incl. VAT

12

FLAT WASHER

224081301

1,04€ Unit Price incl. VAT

13

REAR HEAT SHIELD

707600344

13,36€ Unit Price incl. VAT

14

MUFFLER

707600358

389,98€ Unit Price incl. VAT

15

ANTI-VIBRATION RUBBER

707600012

707600702

10,10€ Unit Price incl. VAT

16

MUFFLER BRAKET

707600411

12,94€ Unit Price incl. VAT

17

HEX. SCREW M6 X 65

207066544

0,52€ Unit Price incl. VAT

18

FLAT WASHER

224061121

0,64€ Unit Price incl. VAT

19

HEX. FLANGED ELASTIC NUT M6

233261414

1,73€ Unit Price incl. VAT

20

MUFFLER PROTECTOR

707600284

707600621

73,00€ Unit Price incl. VAT

21

HEX. FLANGED ELASTIC NUT M6

233261414

1,73€ Unit Price incl. VAT

22

SLEEVE

708000084

293900078

16,64€ Unit Price incl. VAT

23

HEX. FLANGED SCREW M6 X 30

207663044

207563034

2,51€ Unit Price incl. VAT

24

BUSHING

709200115

705003932

3,32€ Unit Price incl. VAT

25

WASHER

503175800

3,88€ Unit Price incl. VAT

26

HEAT SHIELD

707600403

12,94€ Unit Price incl. VAT

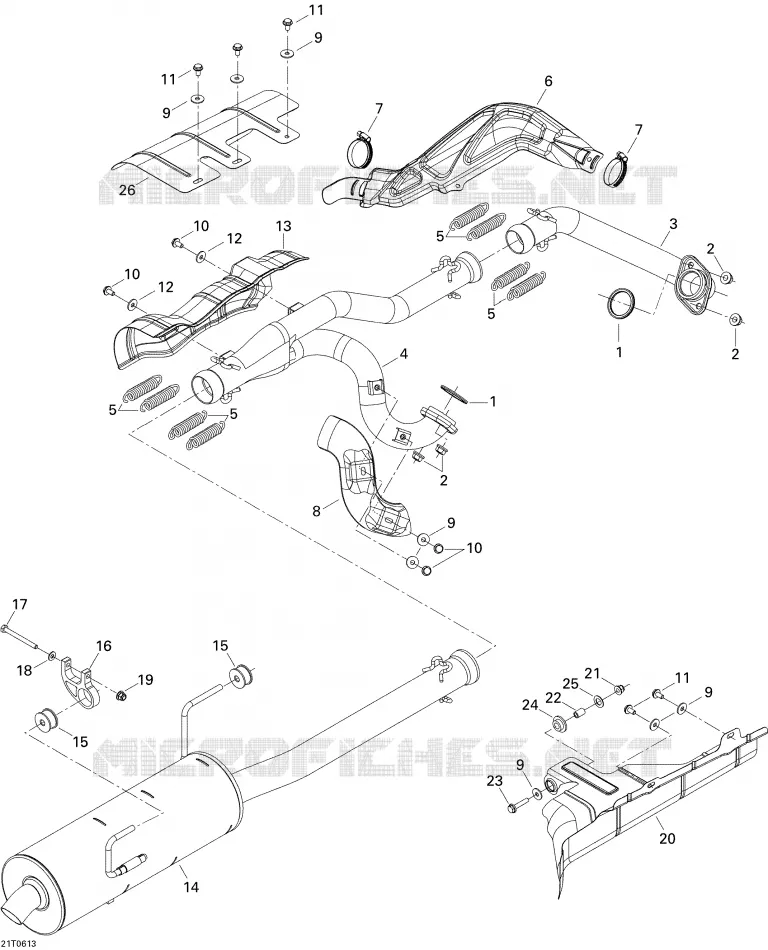

Find the detailed Exhaust System CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
