1
Model
OUTLANDER
2
Year
2010
3
Trim
OUTLANDER MAX 500
4
Parts Catalog
Hydraulic Brakes Europe
5
Parts Diagram
Parts Catalog
Hydraulic Brakes
by
Front Suspension
Hydraulic Brakes Europe
33
33
33
33
18
16
76
76
29
5
26
78
64
66
45
45
69
69
9
44
75
75
38
38
38
38
77
21
63
1
40
71
3
65
39
39
13
23
31
14
79
79
81
36
58
73
24
22
48
17
53
55
28
27
19
42
60
20
47
47
4
2
49
80
74
74
37
57
6
59
15
52
10
43
35
35
35
35
35
35
35
35
35
35
35
35
67
54
46
12
72
70
70
56
51
51
51
51
51
51
34
32
32
25
50
68
11
8
62
41
61
7
1
RH CALIPER
705600728
270,98€ Unit Price incl. VAT
2
PAD_BRAKE RH KIT
705600004
57,60€ Unit Price incl. VAT
3
PISTON SET
705600078
44,44€ Unit Price incl. VAT
4
SPRING
705600079
18,88€ Unit Price incl. VAT
5
BLEEDING SCREW
705600080
19,98€ Unit Price incl. VAT
6
PIN KIT
705600081
23,28€ Unit Price incl. VAT
7
COMPRESSION BOOT
705600082
12,22€ Unit Price incl. VAT
8
COMPRESSION BOOT
705600083
12,22€ Unit Price incl. VAT
9
Not Available As Spare Parts
XXX
Not Available
10
LH CALIPER
705600729
270,98€ Unit Price incl. VAT
11
PAD_BRAKE LH KIT
705600014
57,60€ Unit Price incl. VAT
12
PISTON SET
705600078
44,44€ Unit Price incl. VAT
13
SPRING
705600079
18,88€ Unit Price incl. VAT
14
BLEEDING SCREW
705600080
19,98€ Unit Price incl. VAT
15
PIN KIT
705600081
23,28€ Unit Price incl. VAT
16
COMPRESSION BOOT
705600082
12,22€ Unit Price incl. VAT
17
COMPRESSION BOOT
705600083
12,22€ Unit Price incl. VAT
18
LH CALIPER SUPPORT
705600297
71,06€ Unit Price incl. VAT
19
MASTER CYLINDER
705600578
705600844
256,01€ Unit Price incl. VAT
20
LEVER ARM
705600243
62,00€ Unit Price incl. VAT
21
CAP SET
705600084
27,76€ Unit Price incl. VAT
22
BRAKE LEVER BOLT KIT
705600246
17,78€ Unit Price incl. VAT
23
BRACKET KIT
705600087
20,72€ Unit Price incl. VAT
24
CIRCLIP
705600088
5,58€ Unit Price incl. VAT
25
COMPRESSION BOOT
705600089
14,34€ Unit Price incl. VAT
26
PARKING KIT, BRAKE LEVER LOCK
705600477
38,38€ Unit Price incl. VAT
27
BRAKE LINE
705600691
65,96€ Unit Price incl. VAT
28
CLAMP
705600459
293650256
6,24€ Unit Price incl. VAT
29
BRAKE HOSE
705600690
151,32€ Unit Price incl. VAT
30a
BRAKE HOSE
705600697
74,56€ Unit Price incl. VAT
30b
CLAMP
705600459
293650256
6,24€ Unit Price incl. VAT
31
HEX. FORMING SCREW M6 X 20
210262080
210262050
2,51€ Unit Price incl. VAT
32
BANJO BOLT
705600609
1,10€ Unit Price incl. VAT
33
BANJO BOLT
705600609
1,10€ Unit Price incl. VAT
34
BANJO BOLT
705600612
705600958
7,76€ Unit Price incl. VAT
35
COPPER WASHER
705600310
705601628
5,26€ Unit Price incl. VAT
36
LINE BRAKE
705600759
58,10€ Unit Price incl. VAT
37
REAR HOSE
705600582
705600930
95,00€ Unit Price incl. VAT
38
CLAMP
705600459
293650256
6,24€ Unit Price incl. VAT
39
SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP
250000136
4,38€ Unit Price incl. VAT
40
MASTER CYLINDER
705600760
215,48€ Unit Price incl. VAT
41
PISTON SET
705600063
38,98€ Unit Price incl. VAT
42
PUSHER BRACKET, HOSE CONNECTOR
705600064
19,78€ Unit Price incl. VAT
43
Not Available As Spare Parts
XXX
Not Available
44
OIL TANK, BRAKE FLUID RESERVOIR
705600182
44,44€ Unit Price incl. VAT
45
CIRCLIP
705600068
4,06€ Unit Price incl. VAT
45
REAR MASTER CYLINDER ASS Y
705600154
226,32€ Unit Price incl. VAT
46
COMPRESSION BOOT
705600090
13,36€ Unit Price incl. VAT
47
OIL HOUSING HOSE
705600764
65,09€ Unit Price incl. VAT
48
PIN
250400007
219702305
41,68€ Unit Price incl. VAT
49
YOKE
705600100
232081414 , 234081430 , 250400058 , 371800700 , 705601142
Not Available
50
HEX. NUT M8
232081414
0,86€ Unit Price incl. VAT
51
RIVET_POP 3/16 X ,425
390406500
1,00€ Unit Price incl. VAT
52
BRAKE SWITCH
705600798
62,00€ Unit Price incl. VAT
53
REAR CALIPER
705600791
293,82€ Unit Price incl. VAT
54
PAD_BRAKE LH KIT
705600398
57,98€ Unit Price incl. VAT
55
SPRING
705600079
18,88€ Unit Price incl. VAT
56
BLEEDING SCREW
705600080
19,98€ Unit Price incl. VAT
57
PIN KIT
705600081
23,28€ Unit Price incl. VAT
58
COMPRESSION BOOT
705600082
12,22€ Unit Price incl. VAT
59
COMPRESSION BOOT
705600083
12,22€ Unit Price incl. VAT
60
LH CALIPER SUPPORT
705600298
56,41€ Unit Price incl. VAT
61
HEX. FLANGED SCREW M8 X 25, SCOTCH GRIP
207582544
1,88€ Unit Price incl. VAT
62
SPLITTER
705600800
188,94€ Unit Price incl. VAT
63
HEX. SCREW M6 X 40
210264080
5,44€ Unit Price incl. VAT
64
BUSHING
293900029
293900104
6,32€ Unit Price incl. VAT
65
BRAKE PEDAL, BLACK
705600784
705601154
76,80€ Unit Price incl. VAT
66
BRAKE PEDAL SPRING
705600792
11,10€ Unit Price incl. VAT
67
HEX. FLANGED SCREW M6 X 16
207661644
0,88€ Unit Price incl. VAT
68
HEX. FLANGED ELASTIC NUT M6
233261414
1,73€ Unit Price incl. VAT
69
SYNTHETIC GREASE, 400 G
293550010
9779702
27,96€ Unit Price incl. VAT
70
O-RING
293300144
4,43€ Unit Price incl. VAT
71
INNER SPACER
705600815
14,45€ Unit Price incl. VAT
72
HEX. FLANGED SCREW M10 X 55
207605544
4,00€ Unit Price incl. VAT
73
HEX. FLANGED ELASTIC NUT M10
233201414
1,80€ Unit Price incl. VAT
74
HEX. FLANGED SCREW M8 X 16, SCOTCH GRIP
207581646
2,51€ Unit Price incl. VAT
75
CONICAL SPRING WASHER M8
234281474
1,66€ Unit Price incl. VAT
76
DISK BRAKE
705600603
69,00€ Unit Price incl. VAT
77
TORX FLAT HEAD SCREW M8X16, SCOTCHGRIP
235381646
3,00€ Unit Price incl. VAT
78
DISK BRAKE
705600604
69,00€ Unit Price incl. VAT
79
TORX SCREW M8 X 25, SCOTCH GRIP
250000143
2,54€ Unit Price incl. VAT
80
HEX. FLANGED SCREW M6 X 25
207662544
0,76€ Unit Price incl. VAT
81
HEX. FLANGED ELASTIC NUT M6
233261414
1,73€ Unit Price incl. VAT

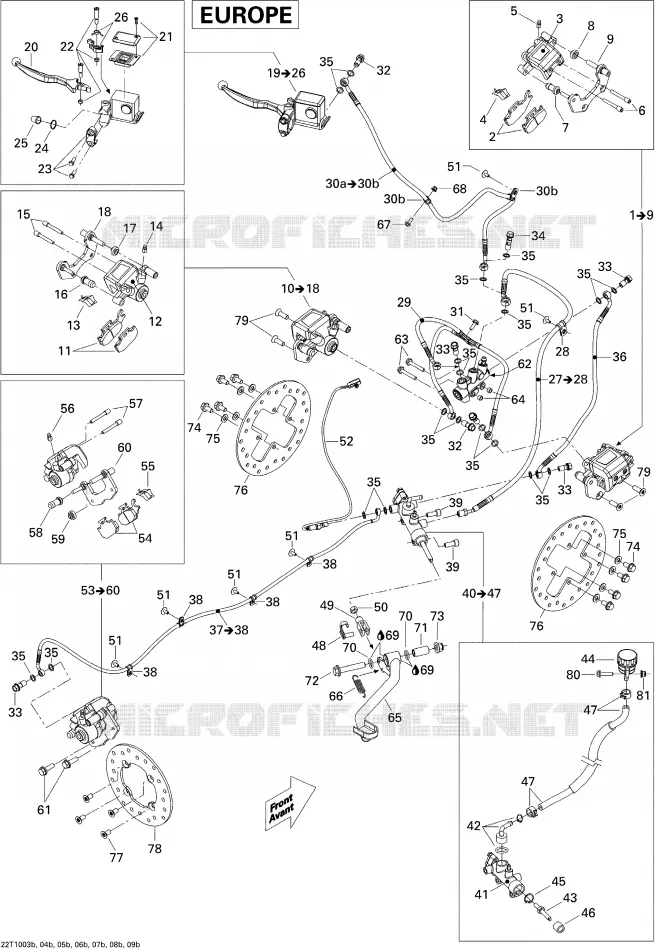

Find the detailed Hydraulic Brakes Europe CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
