1
Model
DEFENDER
2
Year
2018
3
Trim
DEFENDER MAX HD8
4
Parts Catalog
Gear Box And Components Without Lockable Differential
5
Parts Diagram
Parts Catalog
Gear Box And Components With Lockable Differential
by
Crankcase
Gear Box And Components Without Lockable Differential
5
21
2
15
28
7
17
17
6
16
9
11
8
18
18
19
32
13
1
3
12
29
4
20
14
1
COUNTERSHAFT
420637508
420637507
429,01€ Unit Price incl. VAT
2
MAIN SHAFT
420637774
420637786
1 041,02€ Unit Price incl. VAT
3
SHIFTING SLEEVE
420657402
420657404
112,01€ Unit Price incl. VAT
4
Not Available As Spare Parts
XXX
Not Available
5
GEAR PINION 65T
420435902
420435903
Not Available
6
NEEDLE CAGE
420432139
35,16€ Unit Price incl. VAT
7
THRUST WASHER
420427083
420427082
27,76€ Unit Price incl. VAT
8
CHAIN
420898532
117,00€ Unit Price incl. VAT
9
INTERMEDIATE SHAFT
420637676
395,00€ Unit Price incl. VAT
10
SHIFTING DRUM ASS Y
420657546
351,01€ Unit Price incl. VAT
11
NEEDLE PIN
420932780
8,76€ Unit Price incl. VAT
12
FORK SPINDLE
420657432
44,44€ Unit Price incl. VAT
13
SHIFT BLOCK ASS Y
420657475
420657476
33,32€ Unit Price incl. VAT
14
SPRING
420638075
4,44€ Unit Price incl. VAT
15
GEARSHIFT FORK ASS Y
420657539
251,00€ Unit Price incl. VAT
16
Ressort
420638070
Not Available
17
SPRING SEAT
420427140
3,34€ Unit Price incl. VAT
18
RETAINING RING
420945470
6,66€ Unit Price incl. VAT
19
SHIFT FORK ASS Y
420657559
189,00€ Unit Price incl. VAT
20
SPRING
420638075
4,44€ Unit Price incl. VAT
21
SHIFT SHAFT WITH GEAR SEGMENT ASS Y
420637568
420637569
131,00€ Unit Price incl. VAT
22
DRIVE GEAR 48T
420934085
524,02€ Unit Price incl. VAT
28
Not Available As Spare Parts
XXX
Not Available
29
Not Available As Spare Parts
XXX
Not Available
30
Not Available As Spare Parts
XXX
Not Available
31
SHIFTING SLEEVE KIT
420257673
420257674
151,01€ Unit Price incl. VAT
32
SHIFTING FORK ASS Y
420258525
18,88€ Unit Price incl. VAT
33
NEEDLE PIN
420832650
8,88€ Unit Price incl. VAT
34
HEX. SCREW M6 X 8
420841581
1,30€ Unit Price incl. VAT

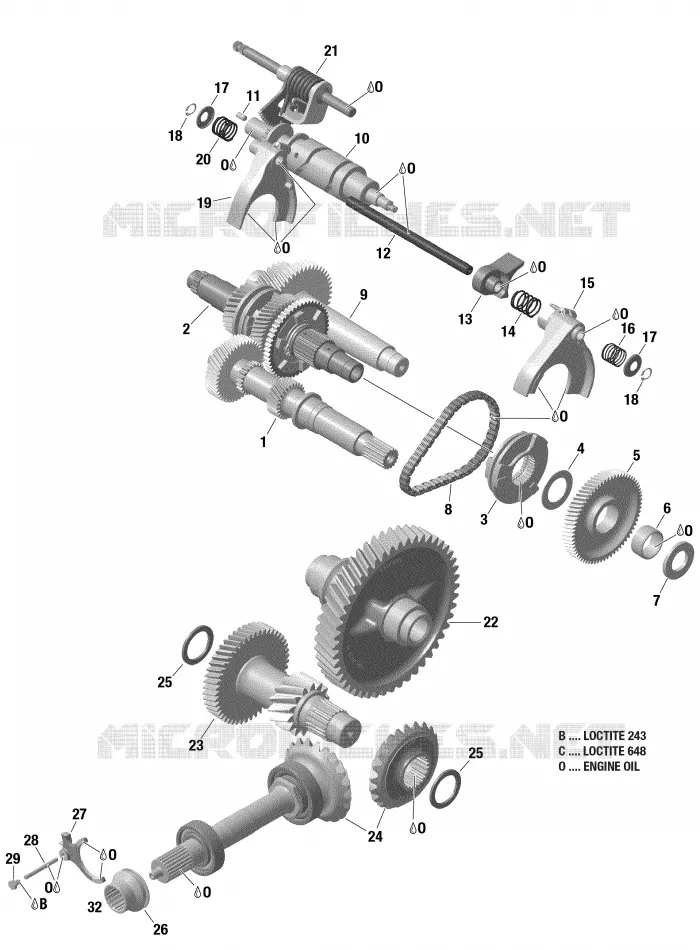

Find the detailed Gear Box And Components Without Lockable Differential CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
