Exhaust Outlander 450 EFI - 570 EFI
40
40
40
40
30
30
30
30
30
30
30
30
30
30
30
30
670
670
420
370
370
360
360
360
360
260
290
290
320
500
500
500
500
450
450
450
180
650
650
660
660
440
60
60
60
60
10
10
10
460
100
430
300
410
310
580
580
550
150
350
350
350
350
350
590
80
250
400
50
50
510
510
140
330
330
330
330
330
330
330
330
330
330
330
330
330
330
160
520
520
270
340
340
340
340
340
340
340
340
340
340
340
120
20
20
20
20
20
130
10
GASKET
707600317
12,76€ Unit Price incl. VAT
20
HEX. FLANGED NUT M8
233081416
1,32€ Unit Price incl. VAT
30
FRONT HEAD PIPE
707600764
167,00€ Unit Price incl. VAT
30
FRONT HEAD PIPE
707601358
212,00€ Unit Price incl. VAT
30
FRONT HEAD PIPE
707601361
212,00€ Unit Price incl. VAT
40
HEAD PIPE
707601396
239,00€ Unit Price incl. VAT
40
HEAD PIPE
707601397
239,00€ Unit Price incl. VAT
50
SPRING
415107100
7,52€ Unit Price incl. VAT
60
EXHAUST MUFFLER
707601392
712,02€ Unit Price incl. VAT
60
MUFFLER_EXHAUST
707602181
712,02€ Unit Price incl. VAT
80
EXHAUST PIPE CLAMP
293650228
14,44€ Unit Price incl. VAT
100
ANTI-VIBRATION RUBBER
707600701
14,44€ Unit Price incl. VAT
120
SPACER BUSHING
293900116
4,44€ Unit Price incl. VAT
130
BUSHING
293900115
3,34€ Unit Price incl. VAT
140
HEX. FLANGED SCREW M8 X 35
207683544
2,00€ Unit Price incl. VAT
150
HEX. FLANGED SCREW M8 X 55
207685544
6,32€ Unit Price incl. VAT
160
WASHER
250200158
2,51€ Unit Price incl. VAT
180
HEX. FLANGED NUT M8
233081416
1,32€ Unit Price incl. VAT
250
PROTECTOR
707601486
16,64€ Unit Price incl. VAT
260
HEAT SHIELD
707600995
21,18€ Unit Price incl. VAT
270
PROTECTOR
707601484
15,54€ Unit Price incl. VAT
290
HEAT SHIELD
707600996
27,76€ Unit Price incl. VAT
290
HEAT SHIELD
707600996
27,76€ Unit Price incl. VAT
300
PROTECTOR
707601485
15,54€ Unit Price incl. VAT
310
HEAT SHIELD
707600994
22,19€ Unit Price incl. VAT
320
PROTECTOR
707601425
22,20€ Unit Price incl. VAT
330
SPRING NUT U M6 X 1.0
250000048
2,48€ Unit Price incl. VAT
340
HEX. FLANGED SCREW M6 X 16
207661644
0,88€ Unit Price incl. VAT
350
FLAT WASHER 6 MM
234062410
0,92€ Unit Price incl. VAT
360
SPRING NUT U M6 X 1.0
250000048
2,48€ Unit Price incl. VAT
360
SPRING NUT U M6 X 1.0
250000048
2,48€ Unit Price incl. VAT
370
HEX. FLANGED SCREW M6 X 16
207661644
0,88€ Unit Price incl. VAT
370
HEX. FLANGED SCREW M6 X 16
207661644
0,88€ Unit Price incl. VAT
400
HEX. FLANGED SCREW M6 X 25
207662534
2,51€ Unit Price incl. VAT
410
HEX. FLANGED ELASTIC NUT M6
233261414
1,73€ Unit Price incl. VAT
420
GROMMET
293720053
5,36€ Unit Price incl. VAT
430
BUSHING
293900105
9,12€ Unit Price incl. VAT
440
FLAT WASHER
224060201
1,40€ Unit Price incl. VAT
450
RUBBER BUMPER
293830005
9,17€ Unit Price incl. VAT
460
RUBBER STOPPER
708000506
8,90€ Unit Price incl. VAT
500
PIPE PROTECTOR
707600932
18,88€ Unit Price incl. VAT
500
HEAT SHIELD
707601457
16,64€ Unit Price incl. VAT
510
FLAT WASHER
250200082
0,50€ Unit Price incl. VAT
520
HEX. FLANGED SCREW M6 X 12
250000574
2,51€ Unit Price incl. VAT
550
HEAT DEFLECTOR
707601635
15,54€ Unit Price incl. VAT
580
SPRING NUT U M6 X 1.0
250000048
2,48€ Unit Price incl. VAT
590
HEX. FLANGED SCREW M6 X 16
207661644
0,88€ Unit Price incl. VAT
650
CARRIAGE BOLT M6 X 12
207761244
2,24€ Unit Price incl. VAT
650
CARRIAGE BOLT M6 X 12
207761244
2,24€ Unit Price incl. VAT
660
NUT-STOP ELASTIC DIN.985
232561414
0,66€ Unit Price incl. VAT
660
NUT-STOP ELASTIC DIN.985
232561414
0,66€ Unit Price incl. VAT
670
FLAT WASHER 6 MM
234061410
1,63€ Unit Price incl. VAT
670
FLAT WASHER 6 MM
234061410
1,63€ Unit Price incl. VAT

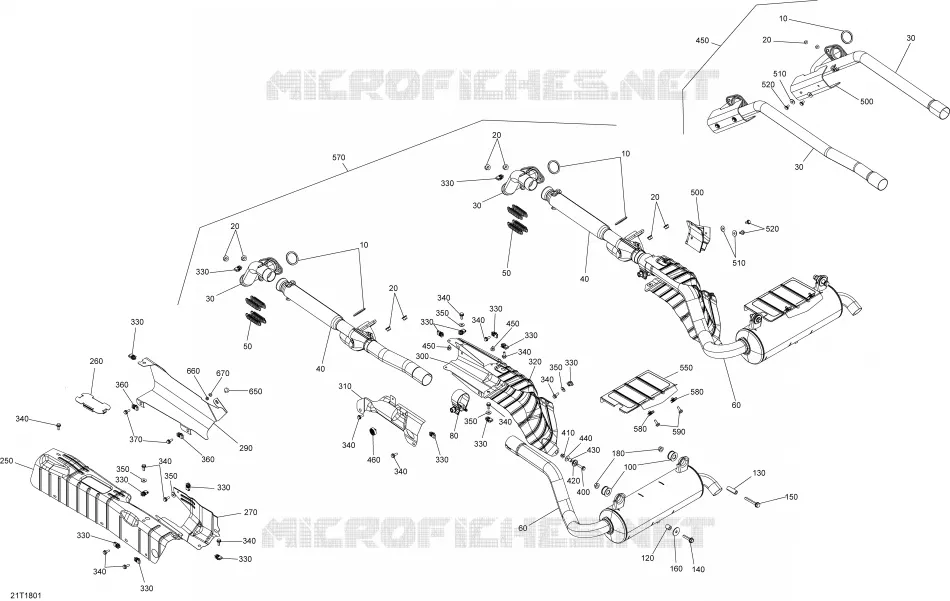

Find the detailed Exhaust Outlander 450 EFI - 570 EFI CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
