Electrical System Traxter Non Max for Can-Am TRAXTER HD10 from 2018

NEGATIVE CABLE

710005331

55,56€ Unit Price incl. VAT

NEGATIVE CABLE

710005512

55,56€ Unit Price incl. VAT

HEX. FLANGED SCREW M6 X 16, SCOTCH GRIP

207561644

2,24€ Unit Price incl. VAT

EXTERNAL SERRATED LOCK WASHER 6 MM

234461608

1,32€ Unit Price incl. VAT

NUT-STOP ELASTIC DIN.985

232561414

0,66€ Unit Price incl. VAT

NUT-STOP ELASTIC DIN.985

232561414

0,66€ Unit Price incl. VAT

LIGHT SWITCH

710004492

55,56€ Unit Price incl. VAT

WINCH SWITCH

710002052

33,32€ Unit Price incl. VAT

150

SWITCH

710005489

38,88€ Unit Price incl. VAT

160

SWITCH

710005470

55,56€ Unit Price incl. VAT

210

IGNITION SWITCH WITH KEYS

710004198

710007870

67,00€ Unit Price incl. VAT

215

KEY SWITCH PROTECTOR

710005739

2,99€ Unit Price incl. VAT

220

DRIVING MODE SWITCH

710004532

715004445

48,89€ Unit Price incl. VAT

230

PLUG CARLING

710001999

710007173

11,10€ Unit Price incl. VAT

240

HOUSING SUPPORT

710004741

8,54€ Unit Price incl. VAT

242

SCREW PT TYPE K-50 X 16

250000959

2,51€ Unit Price incl. VAT

300

WIRING HARNESS ASSY

710005722

1 057,02€ Unit Price incl. VAT

301

DPS CONNECTOR CAP

710005760

19,98€ Unit Price incl. VAT

304

SPRING NUT U M6 X 1.0

250000957

250100198

2,48€ Unit Price incl. VAT

305

HEX. FLANGED SCREW M6 X 20

207662044

2,38€ Unit Price incl. VAT

306

SCREW-PLASTITE HEX.WR.HD.M5.28X16

243141630

2,51€ Unit Price incl. VAT

310

WIRING HARNESS REAR

710004458

262,01€ Unit Price incl. VAT

320a

HOUSING CAP

710005774

4,43€ Unit Price incl. VAT

320b

HOUSING CAP

710005775

4,43€ Unit Price incl. VAT

325a

SWITCH S CONNECTOR

710005713

8,90€ Unit Price incl. VAT

380

WINCH HARNESS

710004465

128,00€ Unit Price incl. VAT

381

NUT-STOP ELASTIC DIN.985

232561434

2,22€ Unit Price incl. VAT

600>600b

SPEEDOMETER

710005553

390,01€ Unit Price incl. VAT

600>600b

SPEEDOMETER

710005719

501,01€ Unit Price incl. VAT

600a

TRIM RING ASS Y

710001183

22,20€ Unit Price incl. VAT

600a

LENS

415129349

27,94€ Unit Price incl. VAT

600a1

BRP LOGO, 13 MM

704904615

14,70€ Unit Price incl. VAT

600b

BUTTON

715900265

16,64€ Unit Price incl. VAT

600b

SPEEDOMETER BUTTON

415129355

18,43€ Unit Price incl. VAT

700>700a

LEFT BEAM

710005729

710008313

245,00€ Unit Price incl. VAT

700>700a

RIGHT BEAM

710005730

262,01€ Unit Price incl. VAT

710a

HALOGEN BULB H8 12V 35W

219800149

50,00€ Unit Price incl. VAT

712

HEX. FLANGED PT SCREW K50 X 25

241152540

5,18€ Unit Price incl. VAT

715

BUSHING-SHOUL.

710004749

3,32€ Unit Price incl. VAT

716

GROMMET

293720053

709000582

5,36€ Unit Price incl. VAT

720

HANDLE

572106600

12,30€ Unit Price incl. VAT

722

HEX. SCREW K40 X 45

250000718

2,51€ Unit Price incl. VAT

724>724a

SPRING

517168600

8,38€ Unit Price incl. VAT

725

FLAT WASHER 4 MM, STAINLESS

234042600

1,32€ Unit Price incl. VAT

740

TAIL LIGHT

710004257

112,01€ Unit Price incl. VAT

740

TAIL LIGHT

710004497

134,00€ Unit Price incl. VAT

741

HEX. FLANGED SCREW M6 X 20, SCOTCH GRIP

207562034

2,51€ Unit Price incl. VAT

745

SPRING NUT U M6 X 1.0

250000957

250100198

2,48€ Unit Price incl. VAT

800

WINCH

710005731

710006993

234,00€ Unit Price incl. VAT

801

SOCKET HEAD SCREW M8 X 30

205083044

1,32€ Unit Price incl. VAT

802

WASHER-LOCK DIN.127B

234181401

1,08€ Unit Price incl. VAT

810

HOOK WITH SAFETY LATCH AND STRAP KIT

715003523

705014949

32,58€ Unit Price incl. VAT

815

WINCH STOPPER

710005142

710007028

11,39€ Unit Price incl. VAT

820

WINCH CABLE GUIDE

710004822

710007082

71,00€ Unit Price incl. VAT

821

SOCKET SCREW M10 X 30

205003044

3,74€ Unit Price incl. VAT

822

HEX. FLANGED ELASTIC NUT M10

233201414

1,80€ Unit Price incl. VAT

840

WINCH CONNEC.

710004823

715006504

32,58€ Unit Price incl. VAT

841

HEX. FLANGED SCREW M5 X 20, SCOTCH GRIP

207552044

5,92€ Unit Price incl. VAT

842

SPRING NUT U M5 X 0.8

250000958

5,00€ Unit Price incl. VAT

850

SOLENOID

703500947

710006991

73,00€ Unit Price incl. VAT

851

NUT-STOP ELASTIC DIN.985

232561200

4,66€ Unit Price incl. VAT

852

HEX. FLANGED SCREW M5 X 20, SCOTCH GRIP

207552044

5,92€ Unit Price incl. VAT

853

SPRING NUT U M5 X 0.8

250000958

5,00€ Unit Price incl. VAT

860

COPPER BUSBAR

710004772

14,44€ Unit Price incl. VAT

865

COPPER BUSBAR

710004872

14,44€ Unit Price incl. VAT

870

COPPER BUSBAR

710004873

14,44€ Unit Price incl. VAT

875

BREAKER

703500948

710007039

22,34€ Unit Price incl. VAT

880

HEX. FLANGED NUT M5

250100071

2,54€ Unit Price incl. VAT

885

WASHER-LOCK HELICAL DIN.127B-A2

234161601

1,32€ Unit Price incl. VAT

900>900a

BATTERY YUASA YTX20L

410301203

176,32€ Unit Price incl. VAT

900>900a

BATTERY YUASA YIX30L

515176151

246,47€ Unit Price incl. VAT

900a

BATTERY BOLT KIT

250000282

4,60€ Unit Price incl. VAT

900a

BATTERY BOLT KIT

515176081

7,98€ Unit Price incl. VAT

910

PLATE FIXATION

710004788

12,83€ Unit Price incl. VAT

915

PLATE FIXATION

710004789

11,11€ Unit Price incl. VAT

920

RUBBER GROMMET

705003666

705014429

7,03€ Unit Price incl. VAT

926

FLANGED HEX. SCREW S.GRIP M6 X 20

207562054

2,51€ Unit Price incl. VAT

927

FLAT WASHER 6 MM

234062410

0,92€ Unit Price incl. VAT

930

VOLTAGE REGULATOR

515177325

710010539

124,01€ Unit Price incl. VAT

930

VOLTAGE REGULATOR

710005568

710005842

212,00€ Unit Price incl. VAT

931

HEX. FLANGED SCREW M6 X 30, SCOTCH GRIP

207563034

2,51€ Unit Price incl. VAT

932

HEX. FLANGED ELASTIC NUT M6

233261414

1,73€ Unit Price incl. VAT

933

FLAT WASHER 6 MM

234062410

0,92€ Unit Price incl. VAT

940

RUBBER STOPPER

708001827

7,76€ Unit Price incl. VAT

1100

OUTLET DC

710001248

44,72€ Unit Price incl. VAT

1101

12V POWER OUTLET SNAP MOUNT

710005374

38,88€ Unit Price incl. VAT

1105

PLUG

710004993

8,88€ Unit Price incl. VAT

1400

STARTER RELAY

278003012

50,32€ Unit Price incl. VAT

1401

WASHER-LOCK HELICAL DIN.127B-A2

234161601

1,32€ Unit Price incl. VAT

1403

HEX. NUT M6

232061600

1,30€ Unit Price incl. VAT

1404

SCREW-PLASTITE HEX.WR.HD.M5.28X16

243141630

2,51€ Unit Price incl. VAT

2200

WRAP_TIE 188 X 4.6

414115200

0,12€ Unit Price incl. VAT

2215

LOCKING TIE RAP

293750058

7,76€ Unit Price incl. VAT

2233

WRAP_TIE 206 X 4.6

710003168

8,88€ Unit Price incl. VAT

2235

WRAP_TIE 368 X 4.6

293750008

1,64€ Unit Price incl. VAT

2245

HEX. FLANGED SCREW M8 X 16, SCOTCH GRIP

207581646

2,51€ Unit Price incl. VAT

2245

SCREW-FORMING HEX.HD.FL.BZN

210261650

1,92€ Unit Price incl. VAT

2261

WRAP_TIE 197 X 4.6

710005237

8,88€ Unit Price incl. VAT

2265a

TUBING 16 MM

415080000

9,55€ Unit Price incl. VAT

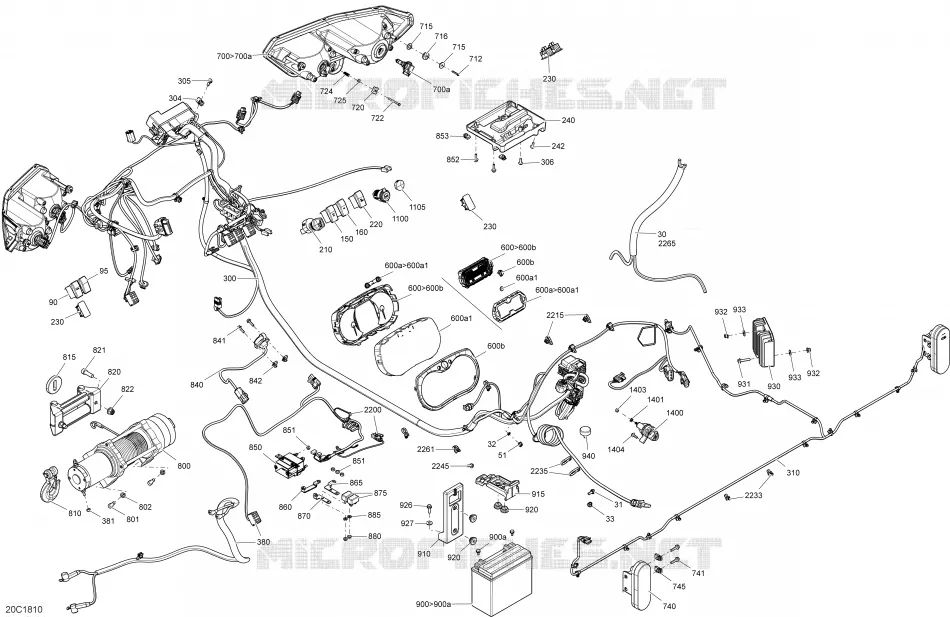

Find the detailed Electrical System Traxter Non Max CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
