1
Model
SPYDER
2
Year
2014
3
Trim
SPYDER RS-S SE5
4
Parts Catalog
Suspension, Front _24Y1408
5
Parts Diagram
Parts Catalog
Steering _23Y1408
by
Drive System, Rear _13Y1408
Suspension, Front _24Y1408
14
14
37
44
13
8
8
12
12
12
12
12
12
12
12
38
71
71
82
65
65
65
65
119
119
40
10
50
50
88
88
22
107
125
125
100
100
9
9
9
9
9
9
9
9
75
21
7
113
6
6
6
6
6
6
6
6
6
6
6
6
6
6
15
67
67
67
67
67
67
67
67
67
67
67
67
51
51
47
79
79
79
6
SCREW-HEX.FLANGE DIN.6921
207605534
2,51€ Unit Price incl. VAT
6
SCREW-HEX.FLANGE DIN.6921
207605534
2,51€ Unit Price incl. VAT
7
SCREW-HEX.FLANGE DIN.6921
207607036
4,78€ Unit Price incl. VAT
8
HEX. FLANGED SCREW M8 X 40
207684034
2,51€ Unit Price incl. VAT
9
HEX. FLANGED ELASTIC NUT M10
233201434
2,34€ Unit Price incl. VAT
9
HEX. FLANGED ELASTIC NUT M8
233281434
2,51€ Unit Price incl. VAT
9a
FLANGED ELASTIC NUT M10
233201436
2,51€ Unit Price incl. VAT
9a
FLANGED ELASTIC NUT M10
233201436
2,51€ Unit Price incl. VAT
10
ELASTIC FLANGE NUT M6
250100130
5,96€ Unit Price incl. VAT
12
SCREW PLASTITE TYPE K-40 M4 X 16
250000113
250000725
4,12€ Unit Price incl. VAT
12
SCREW PLASTITE TYPE K-40 M4 X 16
250000113
250000725
4,12€ Unit Price incl. VAT
13
HEX. FLANGED SCREW M6 X 60
250000397
250000778
5,18€ Unit Price incl. VAT
14
CIRCLIP
293370035
3,10€ Unit Price incl. VAT
15
WRAP_TIE 188 X 4.6
414115200
0,12€ Unit Price incl. VAT
21
Not available for this vehicle. X
N/A
Not Available
22
Not available for this vehicle. X
N/A
Not Available
37
Spring. RS-S Model
706001108
67,98€ Unit Price incl. VAT
38
Not available for this vehicle. X
N/A
Not Available
40
Not available for this vehicle. X
N/A
Not Available
44
Amortisseur. Modèle RS S
706001750
706001939
453,01€ Unit Price incl. VAT
47
TIE ROD
706200671
27,76€ Unit Price incl. VAT
50
Not available for this vehicle. X
N/A
Not Available
51
Not available for this vehicle. X
N/A
Not Available
65
Déflecteur d'Air Inférieur GA
706201319
27,35€ Unit Price incl. VAT
65
Déflecteur d'Air Inférieur DR
706201320
27,35€ Unit Price incl. VAT
67
Rouge Dragon-Déflecteur d'Air Sup. GA. Modèle RS S Blanc Satiné
706201925
146,36€ Unit Price incl. VAT
67
Rouge Dragon-Déflecteur d'Air Sup. DR. Modèle RS S Blanc Satiné
706201926
146,36€ Unit Price incl. VAT
67
Rouge Dragon-Déflecteur d'Air Sup. GA. Modèle RS S Blanc Satiné
706201925
146,36€ Unit Price incl. VAT
67
Rouge Dragon-Déflecteur d'Air Sup. DR. Modèle RS S Blanc Satiné
706201926
146,36€ Unit Price incl. VAT
67
Jaune-Déflecteur d'Air Sup. GA. Modèle RS S Jaune Satiné
706201927
146,36€ Unit Price incl. VAT
67
Jaune-Déflecteur d'Air Sup. DR. Modèle RS S Jaune Satiné
706201928
141,92€ Unit Price incl. VAT
71
BALL JOINT
706201371
706202507
73,00€ Unit Price incl. VAT
75
Not available for this vehicle. X
N/A
Not Available
79
Sway Bar. ST-LTD Model
706201421
101,51€ Unit Price incl. VAT
82
Coussinet De Bras De Suspension
706201519
15,54€ Unit Price incl. VAT
88
Stabilizer Bushing. RS, ST, ST-S Model
706201545
11,10€ Unit Price incl. VAT
100
Ball Joint
706201739
47,22€ Unit Price incl. VAT
107
Not available for this vehicle. X
N/A
Not Available
113
Not available for this vehicle. X
N/A
Not Available
119
Bras Supérieur GA
706201735
207,96€ Unit Price incl. VAT
119
Bras Supérieur DR
706201736
189,00€ Unit Price incl. VAT
125
Bras Inférieur GA
706201737
183,00€ Unit Price incl. VAT
125
Bras Inférieur DR
706201738
189,00€ Unit Price incl. VAT

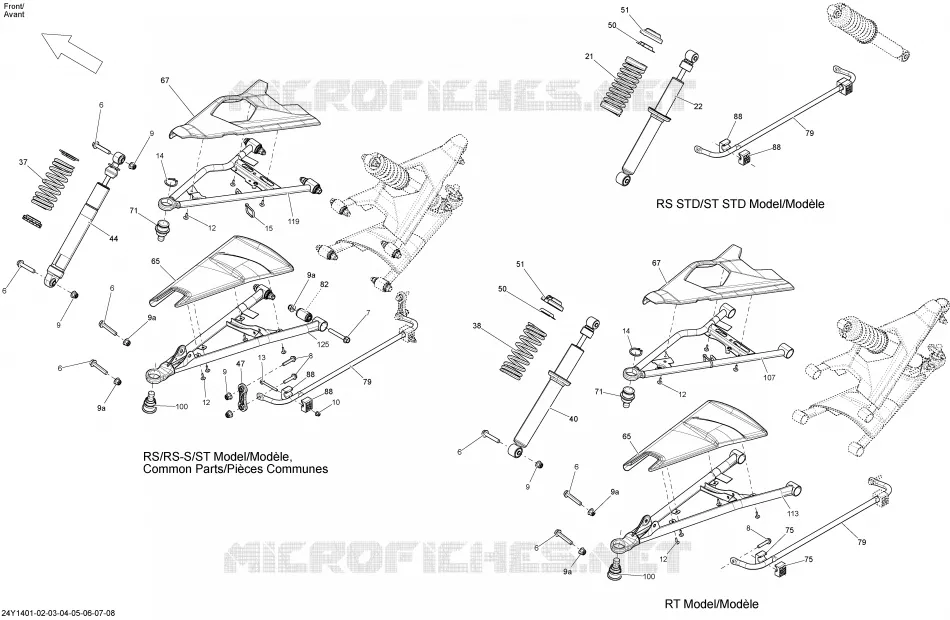

Find the detailed Suspension, Front _24Y1408 CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
