1
Model
DS
2
Year
2013
3
Trim
DS 90 X
4
Parts Catalog
Frame
5
Parts Diagram
Parts Catalog
Drive System, Rear
by
Body And Accessories
Frame
37
37
12
35
27
27
18
38
38
10
30
20
44
11
34
39
39
26
8
8
42
42
43
43
43
43
43
43
43
5
5
5
5
5
5
5
41
9
47
47
47
47
3
6
7
15
15
28
16
24
46
46
46
46
22
17
25
49
45
45
32
32
23
23
13
29
14
40
40
21
1
48
19
4
36
31
31
31
31
33
33
33
2
1
FRAME COMP
V50100DGF05HLL
Not Available
2
LH BAR
V50099DGF10HLL
Not Available
3
DH BAR
V50107DGF10HLL
Not Available
4
LH FOOT PROTECTOR
V50108DGF04HLL
Not Available
5
HEX. ELASTIC STOP NUT M8
232581414
0,68€ Unit Price incl. VAT
6
RH FOOT PROTECTOR
V50109DGF03HLL
Not Available
7
FRONT BUMPER
V50270DGF06H
V50270DGF07H
Not Available
8
HEXAGONAL FLANGED SCREW
V9600008014
Not Available
9
WASHER-LOCK HELICAL DIN.127B-A2
234181601
0,66€ Unit Price incl. VAT
10
RH NET
V70002DGF10HLL
Not Available
11
LH NET
V70001DGF10HLL
Not Available
12
FOOTREST
V50112DGF04HLL
Not Available
13
REFLECTOR BRACKET
V50266DGF020
Not Available
14
SWING ARM
V52370DGF16H
Not Available
14-1
Not available for this vehicle. X
N/A
Not Available
14-2
BUSH
V22135MAA000
Not Available
15
SWING ARM SEAL COVER
V11400MAA000
Not Available
16
LH UPPER FIXED PLATE
V50260DGF050BK
Not Available
17
SWING ARM SPACER
V44170MAA000
Not Available
18
RUBBER SLEEVE
V53436MAA020
V53436MAA020LL
Not Available
19
HEXAGONAL FLANGE BOLT
V9600014290010LL
Not Available
20
NUT-STOP ELASTIC DIN.985
232571414
2,98€ Unit Price incl. VAT
21
HEXAGONAL FLANGED SCREW
V9600008100
Not Available
22
NUT NYLON M10
A9035010000
232501416
1,66€ Unit Price incl. VAT
23
HEX. FLANGED SCREW M10 X 55
207605544
4,00€ Unit Price incl. VAT
24
CHAIN COVER BRAKET
V50268DGF040
Not Available
25
HEX. FLANGED SCREW M6 X 12
207661244
2,44€ Unit Price incl. VAT
26
HEXAGONAL FLANGED SCREW
V9600108125
Not Available
27
RUBBER CUSHION
V85278DGF020LL
Not Available
28
RH UPPER FIXED PLATE
V50261DGF050BK
Not Available
29
TAPPING SCREW
V9309304012LL
Not Available
30
WASHER-LOCK HELICAL DIN.127B-A2
234161601
1,32€ Unit Price incl. VAT
31
RUBBER CUSHION
V15235DGF030
V15235DGF030LL
Not Available
32
SCREW-HEX.FLANGE DIN.6921
207681244
0,90€ Unit Price incl. VAT
33
CLIP
V50110DGF05HLL
Not Available
34
CONNECTOR
V50103DGF01H
Not Available
35
CLIP
V50106DGF02H
Not Available
36
U-BOLT
V50105DGF02H
Not Available
37
HEX. FLANGE BOLT M8 X 68
V9600008068
Not Available
38
HEX. FLANGED SCREW M8 X 45
207684544
4,46€ Unit Price incl. VAT
39
HEX. FLANGED SCREW M8 X 40
207684044
1,66€ Unit Price incl. VAT
40
SUPPORT
V50118DGF05H
Not Available
41
FOOTREST
V50127DGF02HLL
Not Available
42
ROUND HEAD SCREW
V930000601501LL
Not Available
43
NUT-STOP ELASTIC DIN.985
232561414
0,66€ Unit Price incl. VAT
44
DRIVE CHAIN LABEL
V87606DGF00HLL
Not Available
45
HEX. FLANGED SCREW M8 X 20
207682044
1,32€ Unit Price incl. VAT
46
WASHER
V941010816015LL
Not Available
47
WASHER
V94101062201001LL
V94101062201001
Not Available
48
LH SUPPORT FENDER
V50267DGF01H
Not Available
49
RH SUPPORT FENDER
V50275DGF01H
Not Available

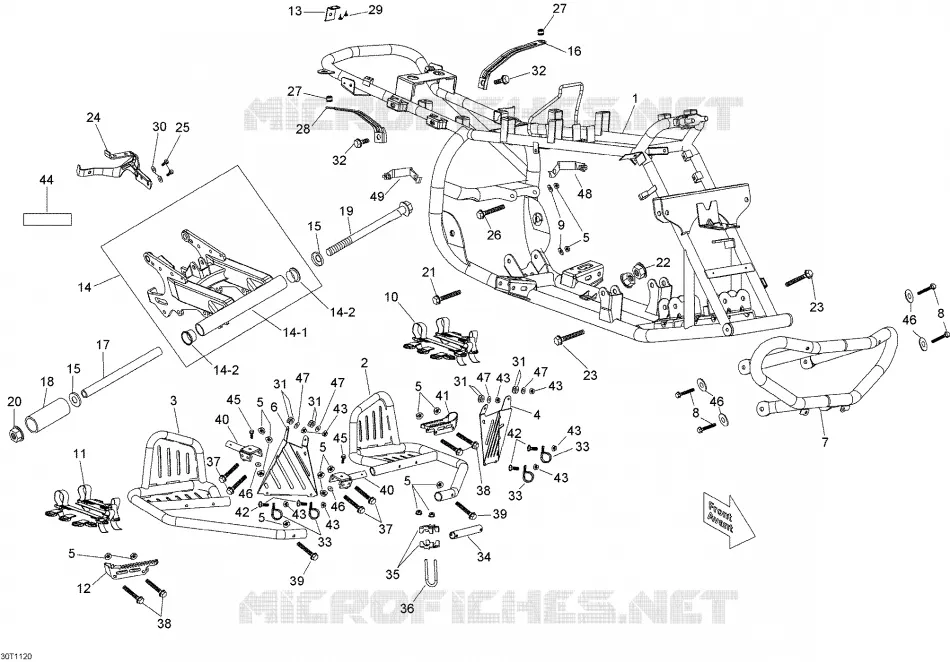

Find the detailed Frame CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
