1
Model
MAVERICK
2
Year
2018
3
Trim
MAVERICK X3 TURBO R X RC
4
Parts Catalog
Air Intake Manifold And Throttle Body
5
Parts Diagram
Parts Catalog
Valve Train
by
Oil Pump
Air Intake Manifold And Throttle Body
20
9
12
17
7
4
14
6
19
16
11
5
22
22
2
18
13
3
8
21
15
1>3
AIR INTAKE MANIFOLD ASS Y
420867345
420867347
395,00€ Unit Price incl. VAT
2
SLEEVE ASSEMBLY
420629175
22,19€ Unit Price incl. VAT
3
GASKET
420450510
55,56€ Unit Price incl. VAT
4
FLANGED TORX SCREW M6 X 30
420440647
2,38€ Unit Price incl. VAT
5
PLUG
420201052
3,32€ Unit Price incl. VAT
6
O-RING
420230530
3,74€ Unit Price incl. VAT
7
FLANGED TORX SCREW M6 X 16
420641588
2,51€ Unit Price incl. VAT
8
PRESSURE TEMPERATURE SENSOR
420874656
515178563
179,08€ Unit Price incl. VAT
9
VIS HEXALOB.EPA*TORX FLANGE SCREW
420841103
4,37€ Unit Price incl. VAT
10>12
INJECTION VALVE ASS Y
420874845
175,39€ Unit Price incl. VAT
11
O-RING
420431890
8,52€ Unit Price incl. VAT
12
O-RING
420631220
16,46€ Unit Price incl. VAT
13
INJECTOR CLIP
420853030
3,52€ Unit Price incl. VAT
14
FUEL RAIL
420874966
16,38€ Unit Price incl. VAT
15
FLANGED TORX SCREW M6 X 30
420441573
420441575
3,64€ Unit Price incl. VAT
16
INTAKE NECK
420867111
420267216
44,72€ Unit Price incl. VAT
17
THROTTLE BODY
420893147
420893149
746,02€ Unit Price incl. VAT
18
FLANGED TORX SCREW M6 X 50
420441588
5,18€ Unit Price incl. VAT
19
INTAKE NECK
420867555
44,44€ Unit Price incl. VAT
20
PRESSURE SENSOR
420274057
157,01€ Unit Price incl. VAT
21
FLANGED TORX SCREW M6 X 16
420641588
2,51€ Unit Price incl. VAT
22
HOSE CLAMP
420251830
16,46€ Unit Price incl. VAT

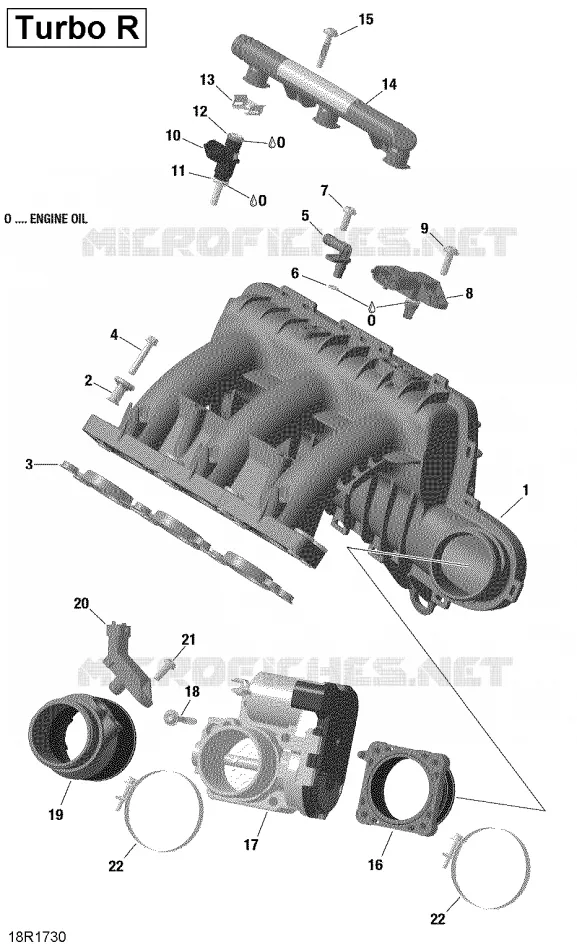

Find the detailed Air Intake Manifold And Throttle Body CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
