1
Model
OUTLANDER
2
Year
2014
3
Trim
OUTLANDER X MR 650
4
Parts Catalog
Rear Suspension
5
Parts Diagram
Parts Catalog
Drive System, Rear
by
Drive Shaft
Rear Suspension
77
72
36
15
57
95
10
58
47
47
47
47
75
41
25
59
24
17
17
38
18
18
18
18
63
81
81
81
40
40
39
50
79
70
100
53
45
8
1
35
35
48
19
91
86
22
22
22
22
30
30
30
21
16
3
29
85
12
6
6
82
61
31
31
31
46
46
46
89
88
13
13
49
49
49
49
49
56
26
94
94
62
62
51
60
80
11
11
7
7
7
7
73
52
93
78
76
55
23
23
74
69
83
27
27
4
4
42
42
71
54
54
9
20
44
44
44
44
66
37
64
64
14
14
14
14
67
5
5
2
84
43
84
1
Not available for this vehicle. X
N/A
Not Available
2
Not available for this vehicle. X
N/A
Not Available
3
Not available for this vehicle. X
N/A
Not Available
4
FLANGED HEX. SCREW M10 X 55
207605546
2,51€ Unit Price incl. VAT
5
FLANGED HEX. SCREW M10 X 60
207606046
4,84€ Unit Price incl. VAT
6
HEX FLANGE SCREW M10 X 65
207606536
5,18€ Unit Price incl. VAT
7
Not available for this vehicle. X
N/A
Not Available
8
Not available for this vehicle. X
N/A
Not Available
9
Not available for this vehicle. X
N/A
Not Available
10
Not available for this vehicle. X
N/A
Not Available
11
Not available for this vehicle. X
N/A
Not Available
12
Not available for this vehicle. X
N/A
Not Available
13
HEX. FLANGED ELASTIC NUT M10
233201414
1,80€ Unit Price incl. VAT
14
FLANGED ELASTIC NUT M10
233201436
2,51€ Unit Price incl. VAT
15
HEX. FLANGED ELASTIC NUT M16
233211466
2,20€ Unit Price incl. VAT
16
Not available for this vehicle. X
N/A
Not Available
17
Not available for this vehicle. X
N/A
Not Available
18
HEX. ELASTIC FLANGED NUT M6
233261494
1,80€ Unit Price incl. VAT
19
HEX. FLANGED ELASTIC NUT M8
233281434
2,51€ Unit Price incl. VAT
20
FLAT WASHER M8
234081430
2,51€ Unit Price incl. VAT
21
Not available for this vehicle. X
N/A
Not Available
22
TORX TRUSS SCREW M6 X 20
250000128
250000722
1,92€ Unit Price incl. VAT
23
GREASE FITTING
250000315
6,92€ Unit Price incl. VAT
24
Not available for this vehicle. X
N/A
Not Available
25
Not available for this vehicle. X
N/A
Not Available
26
FLAT WASHER M17
250200112
9,10€ Unit Price incl. VAT
27
SEAL
293200132
293200144
5,54€ Unit Price incl. VAT
29
GREASE FITTING 90
293550056
1,64€ Unit Price incl. VAT
30
Not available for this vehicle. X
N/A
Not Available
31
Not available for this vehicle. X
N/A
Not Available
35
SPACER
706001282
14,45€ Unit Price incl. VAT
36
Not available for this vehicle. X
N/A
Not Available
37
SPRING GUIDE
503187500
11,54€ Unit Price incl. VAT
38
ADJUSTMENT CAM
505070150
505073625
14,78€ Unit Price incl. VAT
39
Not available for this vehicle. X
N/A
Not Available
40
Not available for this vehicle. X
N/A
Not Available
41
Not available for this vehicle. X
N/A
Not Available
42
Not available for this vehicle. X
N/A
Not Available
43
Not available for this vehicle. X
N/A
Not Available
44
BALL BEARING
706000826
293350145
15,54€ Unit Price incl. VAT
45
SPACER
706000828
706002259
33,32€ Unit Price incl. VAT
46
Not available for this vehicle. X
N/A
Not Available
47
Not available for this vehicle. X
N/A
Not Available
48
Not available for this vehicle. X
N/A
Not Available
49
Not available for this vehicle. X
N/A
Not Available
50
Not available for this vehicle. X
N/A
Not Available
50a
Not available for this vehicle. X
N/A
Not Available
50b
Not available for this vehicle. X
N/A
Not Available
51
Not available for this vehicle. X
N/A
Not Available
52
SHOCK
706000958
212,00€ Unit Price incl. VAT
53
SPRING_COMPRESSION B-190 PAINTED
706001518
72,18€ Unit Price incl. VAT
54
Not available for this vehicle. X
N/A
Not Available
55
SWAYBAR
706000988
151,01€ Unit Price incl. VAT
56
LH PROTECTOR
706001009
17,70€ Unit Price incl. VAT
57
RH PROTECTOR
706001010
17,70€ Unit Price incl. VAT
58
SWAYBAR LINKAGE
706001020
15,54€ Unit Price incl. VAT
59
CUSHION
706001098
706004640
11,10€ Unit Price incl. VAT
60
BUSHING HOLDER
706001099
37,94€ Unit Price incl. VAT
61
Not available for this vehicle. X
N/A
Not Available
62
Not available for this vehicle. X
N/A
Not Available
63
Not available for this vehicle. X
N/A
Not Available
64
Not available for this vehicle. X
N/A
Not Available
66
Not available for this vehicle. X
N/A
Not Available
67
Not available for this vehicle. X
N/A
Not Available
69
Not available for this vehicle. X
N/A
Not Available
70
Not available for this vehicle. X
N/A
Not Available
71
Not available for this vehicle. X
N/A
Not Available
72
Not available for this vehicle. X
N/A
Not Available
73
Not available for this vehicle. X
N/A
Not Available
74
Not available for this vehicle. X
N/A
Not Available
75
Not available for this vehicle. X
N/A
Not Available
76
Not available for this vehicle. X
N/A
Not Available
77
Not available for this vehicle. X
N/A
Not Available
78
AXIAL PIVOT M16
706001664
84,00€ Unit Price incl. VAT
79
BLACK LH SWING ARM
706001543
706001860
351,01€ Unit Price incl. VAT
80
BLACK RH SWING ARM
706001544
706001861
351,01€ Unit Price incl. VAT
81
BUSHING_SUSPENSION ARM KIT
703500875
18,50€ Unit Price incl. VAT
82
CAP
706200785
5,36€ Unit Price incl. VAT
83
SPRING STOPPER
706200881
14,78€ Unit Price incl. VAT
84
BUSHING_SUSPENSION ARM KIT
703500875
18,50€ Unit Price incl. VAT
85
Not available for this vehicle. X
N/A
Not Available
86
Not available for this vehicle. X
N/A
Not Available
88
Not available for this vehicle. X
N/A
Not Available
89
Not available for this vehicle. X
N/A
Not Available
91
Not available for this vehicle. X
N/A
Not Available
91a
Not available for this vehicle. X
N/A
Not Available
91b
Not available for this vehicle. X
N/A
Not Available
93
Not available for this vehicle. X
N/A
Not Available
94
Not available for this vehicle. X
N/A
Not Available
95
Not available for this vehicle. X
N/A
Not Available
100
HEX,. SCREW M8 X 85
207088587
250001035
2,08€ Unit Price incl. VAT

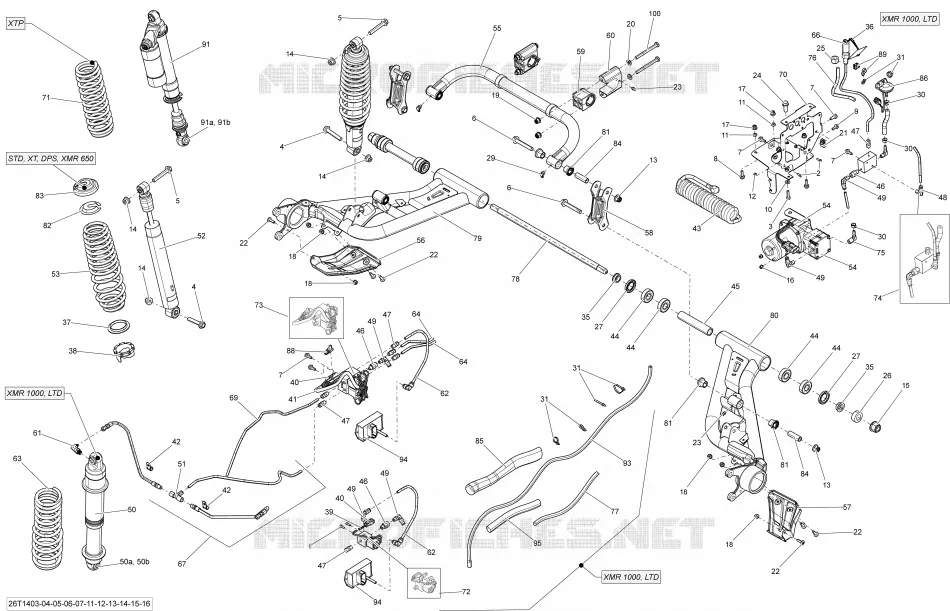

Find the detailed Rear Suspension CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
