Steering - Turbo R for Can-Am MAVERICK MAX TURBO R from 2019

Front Suspension - Turbo R - STD

Front Drive - Differential Parts - Package STD

Steering - Turbo R

10

UPPER DPS SHAFT ASS Y

709402127

709402618

212,00€ Unit Price incl. VAT

15

STEERING SHAFT

709401721

709403022

212,00€ Unit Price incl. VAT

20

STEERING WHEEL

709401706

284,00€ Unit Price incl. VAT

31

O-RING

293300144

4,43€ Unit Price incl. VAT

35

BUSHING

709401733

709402725

3,80€ Unit Price incl. VAT

38

CIRCLIP DIN471

293370110

3,34€ Unit Price incl. VAT

40

STEERING SUPP.

709401602

95,00€ Unit Price incl. VAT

45

BUSHING

709401603

10,21€ Unit Price incl. VAT

60

BUSHING

709401604

6,53€ Unit Price incl. VAT

65

HEX. FLANGED SCREW M8 X 30

207683044

1,86€ Unit Price incl. VAT

70

HEX. FLANGED ELASTIC NUT M8

233281414

1,64€ Unit Price incl. VAT

90

FLANGED HEX. SCREW M8 X 35, SCOTCH GRIP

250001021

5,18€ Unit Price incl. VAT

100

HEX. ELASTIC FLANGED NUT M8

233281416

1,66€ Unit Price incl. VAT

120a

ADJUSTMENT CYLINDER

709400656

709402506

84,00€ Unit Price incl. VAT

120b

BELLOW

709401232

21,18€ Unit Price incl. VAT

120c

WRAP_TIE 188 X 4.6

414115200

0,12€ Unit Price incl. VAT

130

SOCKET HEAD SCREW M8 X 16

250000669

3,74€ Unit Price incl. VAT

140

NUT-STOP ELASTIC DIN.985

232561414

0,66€ Unit Price incl. VAT

145

CAP

269500806

3,34€ Unit Price incl. VAT

150

CENTER-STEERING

709401514

22,20€ Unit Price incl. VAT

160

NUT-STOP ELASTIC M16

232511414

2,36€ Unit Price incl. VAT

180

ROD_TIE ASSY

709401556

128,00€ Unit Price incl. VAT

180

ROD_TIE ASSY

709401739

134,00€ Unit Price incl. VAT

180a

BALL JOINT

709401703

42,58€ Unit Price incl. VAT

180b

HEX. JAM NUT M14

232170411

1,66€ Unit Price incl. VAT

215

SCREW-HEX.CAP M12 X 95

250000864

5,24€ Unit Price incl. VAT

220

ELASTIC FLANGE NUT M12

233221416

3,34€ Unit Price incl. VAT

230

COTTER PIN

211400017

0,36€ Unit Price incl. VAT

245

HEX. FLANGED SCREW M8 X 20, SCOTCH GRIP

207582044

2,00€ Unit Price incl. VAT

260

STEERING ASS Y

709402021

534,01€ Unit Price incl. VAT

260a

KIT RACK END CAP

703500958

16,68€ Unit Price incl. VAT

260b

KIT MOUNTING BRACKET

703500959

27,76€ Unit Price incl. VAT

260c

STEERING RODE NUT

715900238

3,34€ Unit Price incl. VAT

260d

END_TIE ROD

715900488

50,00€ Unit Price incl. VAT

265

PLATE

709401842

709402975

3,32€ Unit Price incl. VAT

275

SCREW-HEX.FLANGE DIN.6921 M12X1.75X190

250000863

7,86€ Unit Price incl. VAT

280

SCREW-HEX.FLANGE DIN.6921 M12X1.75X160

250000875

7,94€ Unit Price incl. VAT

285

ELASTIC FLANGE NUT M12

233221466

3,26€ Unit Price incl. VAT

290

SCREW-HEX.FLANGE DIN.6921 M12X1.75X85

250000859

5,24€ Unit Price incl. VAT

300

STEERING_POWER ASSY

709402311

709403211

2 474,05€ Unit Price incl. VAT

345

TORX-TRUSS M/SM6 X 16

250000755

1,02€ Unit Price incl. VAT

346

HEX. FLANGED ELASTIC NUT M6

233261414

1,73€ Unit Price incl. VAT

350

CLUSTER HOLDER

708400005

27,25€ Unit Price incl. VAT

360

CLUSTER CAP

708400212

22,20€ Unit Price incl. VAT

365

HEX. ELASTIC FLANGED NUT M6

233261494

1,80€ Unit Price incl. VAT

370

TORX-TRUSS M/SM6 X 16

250000755

1,02€ Unit Price incl. VAT

380

TORX-TRUSS PT K40 X 12

250000577

2,51€ Unit Price incl. VAT

390

SUPPORT

707900394

707900737

18,50€ Unit Price incl. VAT

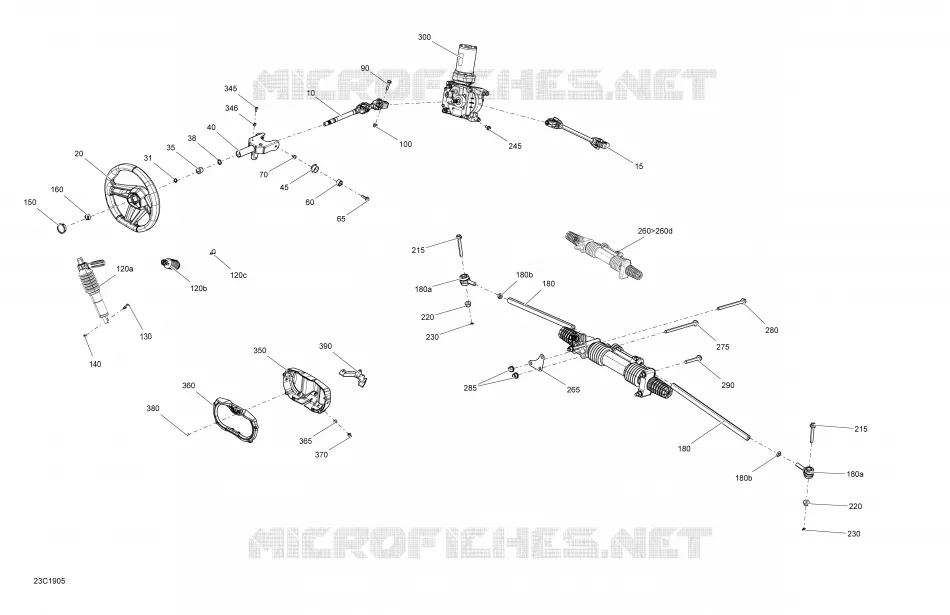

Find the detailed Steering - Turbo R CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
