1
Model
OUTLANDER
2
Year
2014
3
Trim
OUTLANDER 500
4
Parts Catalog

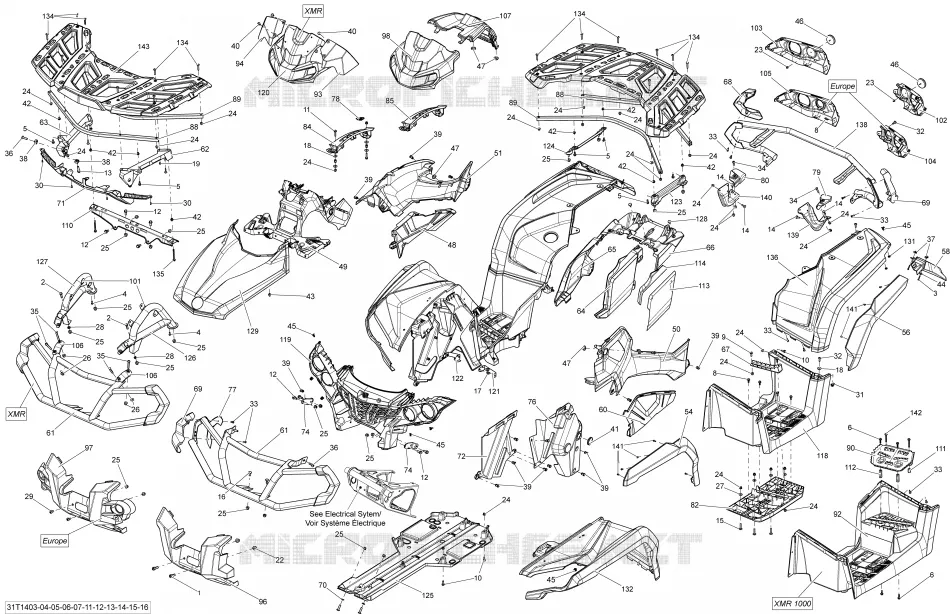

Body And Accessories _31T1403
5
Parts Diagram
Parts Catalog
Drive Shaft
by
Decals
Body And Accessories _31T1403
60
140
132
132
132
132
132
132
132
132
132
132
132
132
132
132
72
72
110
129
129
129
129
129
129
129
123
135
68
142
69
69
69
36
36
94
131
23
23
71
124
15
61
61
92
11
63
34
34
114
30
30
76
76
1
10
10
41
97
104
139
46
42
42
42
42
42
42
42
111
39
39
39
39
39
39
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
9
107
138
6
6
6
82
82
93
22
17
90
3
51
51
51
51
88
88
13
25
25
25
25
25
25
25
25
25
25
25
25
25
101
5
5
5
5
58
54
102
38
38
8
98
32
32
120
16
50
50
50
50
80
26
143
143
143
121
134
134
134
2
2
77
4
4
27
33
33
33
33
33
106
106
78
43
35
35
65
49
49
79
14
14
14
126
112
37
29
127
96
47
47
47
84
48
136
136
136
136
136
136
136
136
136
136
136
136
136
136
28
28
28
85
141
141
40
40
125
74
74
70
18
18
89
44
12
12
12
12
113
19
67
105
62
118
118
103
45
45
45
56
66
64
128
119
31
122
1
SOCKET SCREW M10 X 30
205003044
3,74€ Unit Price incl. VAT
2
Not available for this vehicle. X
N/A
Not Available
3
Not available for this vehicle. X
N/A
Not Available
4
PLASTITE SCREW TYPE K-40, M4 X 25
250000101
4,12€ Unit Price incl. VAT
5
HEX. FLANGED SCREW M6 X 16, SCOTCH GRIP
207561644
2,24€ Unit Price incl. VAT
6
Not available for this vehicle. X
N/A
Not Available
8
HEX. FLANGED SCREW M6 X 16
207661684
207661654
2,51€ Unit Price incl. VAT
9
Not available for this vehicle. X
N/A
Not Available
10
HEX. FLANGED SCREW M6 X 20
207662084
1,88€ Unit Price incl. VAT
11
HEX. FLANGED SCREW M6 X 30
207663034
207563034
2,51€ Unit Price incl. VAT
12
HEX. FLANGED SCREW M8 X 20
207682044
1,32€ Unit Price incl. VAT
13
HEX. FLANGED SCREW M8 X 35
207683534
2,51€ Unit Price incl. VAT
14
CARRIAGE BOLT M6 X 20
207762044
1,80€ Unit Price incl. VAT
15
CARRIAGE BOLT M6 X 35
207763584
207763554
2,44€ Unit Price incl. VAT
16
CARRIAGE BOLT, M8 X 20
207782044
2,24€ Unit Price incl. VAT
17
Not available for this vehicle. X
N/A
Not Available
18
FLAT WASHER
224061201
1,58€ Unit Price incl. VAT
19
HEX. ELASTIC STOP NUT M6
232561600
1,32€ Unit Price incl. VAT
22
HEX. FLANGED ELASTIC NUT M10
233201434
2,34€ Unit Price incl. VAT
23
FLANGED ELASTIC NUT M5
233251434
2,38€ Unit Price incl. VAT
24
FLANGED ELASTIC NUT M6
233261434
5,18€ Unit Price incl. VAT
25
HEX. FLANGED ELASTIC NUT M8
233281434
2,51€ Unit Price incl. VAT
26
Not available for this vehicle. X
N/A
Not Available
27
FLAT WASHER 6 MM
234062410
0,92€ Unit Price incl. VAT
28
Not available for this vehicle. X
N/A
Not Available
29
HEX. SCREW M8 X 20
236282084
1,66€ Unit Price incl. VAT
30
HEX. FLANGED PT SCREW K40 X 10
241140060
1,66€ Unit Price incl. VAT
31
SPRING NUT U M6 X 1.0
250000048
250100198
2,48€ Unit Price incl. VAT
32
TORX TRUSS SCREW M6 X 20
250000128
250000722
1,92€ Unit Price incl. VAT
33
TRUSS HEAD TORX SCREW K50 X 16
250000146
250000720
2,00€ Unit Price incl. VAT
34
TORX SCREW M6 X 30 STAINLESS
250000371
250000842
2,51€ Unit Price incl. VAT
35
Not available for this vehicle. X
N/A
Not Available
36
TORX SCREW M8 X 30
250000544
250000886
2,51€ Unit Price incl. VAT
37
Not available for this vehicle. X
N/A
Not Available
38
ELASTIC NUT HOUSING M8
269501943
7,76€ Unit Price incl. VAT
39
TUFLOK PLASTIC RIVET
293150089
293150230
1,74€ Unit Price incl. VAT
40
Not available for this vehicle. X
N/A
Not Available
41
RUBBER COVER
293250242
7,78€ Unit Price incl. VAT
42
INSERT
293450274
250100199
3,64€ Unit Price incl. VAT
43
RUBBER BUMPER
293830005
9,17€ Unit Price incl. VAT
44
Not available for this vehicle. X
N/A
Not Available
45
CLIP
517302785
1,00€ Unit Price incl. VAT
46
RED REFLECTOR
705002408
705011221
15,36€ Unit Price incl. VAT
47
GROMMET
705003264
4,50€ Unit Price incl. VAT
48
ENGINE COVER
705003444
27,25€ Unit Price incl. VAT
49
DASH SUPPORT KIT
715001552
62,00€ Unit Price incl. VAT
49
DASH SUPPORT KIT
715002245
715006101
72,00€ Unit Price incl. VAT
50
PANEL_BODY LH B-190
705003446
67,00€ Unit Price incl. VAT
50
PANEL_BODY LH B-176
705005237
84,00€ Unit Price incl. VAT
50
PANEL_BODY LH B-005
705005238
302,12€ Unit Price incl. VAT
50
QUARRY GRAY LH LATERAL PANEL
705007530
73,00€ Unit Price incl. VAT
51
YELLOW RH PANNEL
705003447
705009019
67,00€ Unit Price incl. VAT
51
RED RH PANNEL
705005241
705009115
67,00€ Unit Price incl. VAT
51
CAMO RH PANNEL
705005242
705009118
287,66€ Unit Price incl. VAT
51
GREY RH LATERAL PANEL
705007529
705009116
70,93€ Unit Price incl. VAT
54
Not available for this vehicle. X
N/A
Not Available
56
Not available for this vehicle. X
N/A
Not Available
58
Not available for this vehicle. X
N/A
Not Available
60
LH EXTENSION PANNEL
705004147
715007008
31,46€ Unit Price incl. VAT
61
FRONT BUMPER.
705005018
715004837
261,24€ Unit Price incl. VAT
62
LH SUPPORT ASS Y
705006700
705011553
22,20€ Unit Price incl. VAT
63
RH SUPPORT ASS Y
705006701
705011555
27,25€ Unit Price incl. VAT
64
Not available for this vehicle. X
N/A
Not Available
65
Not available for this vehicle. X
N/A
Not Available
66
Not available for this vehicle. X
N/A
Not Available
67
Not available for this vehicle. X
N/A
Not Available
68
CAPUCHON *CAP
705004409
10,00€ Unit Price incl. VAT
69
CAPUCHON *CAP
705004410
10,00€ Unit Price incl. VAT
70
RING
705004497
5,76€ Unit Price incl. VAT
71
LUGAGE RACK MOULDING
705004523
27,76€ Unit Price incl. VAT
72
PROTECTOR_WHEEL ARCH FR
705004558
705011463
21,18€ Unit Price incl. VAT
72
PROTECTOR_WHEEL ARCH FL
705004557
705017001
19,98€ Unit Price incl. VAT
74
LOWER FENDER SUPPORT
705004565
7,76€ Unit Price incl. VAT
76
RH INNER FENDER
705004587
705011462
27,25€ Unit Price incl. VAT
76
LH INNER FENDER
705004588
705013111
27,25€ Unit Price incl. VAT
77
BRACKET COVER
705004987
5,54€ Unit Price incl. VAT
78
SHIFTGATE TRIM
705005003
12,24€ Unit Price incl. VAT
79
LH BRACKET
705005094
8,88€ Unit Price incl. VAT
80
RH BRACKET
705005095
8,88€ Unit Price incl. VAT
82
LH. FOOTBOARD
705005254
705011540
139,01€ Unit Price incl. VAT
82
REINFORCEMENT_FOOTREST RH
705005253
705011542
119,00€ Unit Price incl. VAT
84
INDICATOR
705005258
705011546
33,32€ Unit Price incl. VAT
85
INDICATOR
705005259
705011547
33,32€ Unit Price incl. VAT
88
TUBE
705005469
705016640
42,58€ Unit Price incl. VAT
89
TUBE
705005470
705016092
47,22€ Unit Price incl. VAT
90
Not available for this vehicle. X
N/A
Not Available
92
Not available for this vehicle. X
N/A
Not Available
93
Not available for this vehicle. X
N/A
Not Available
94
Not available for this vehicle. X
N/A
Not Available
96
FRONT GUARD PLATE
705006299
57,40€ Unit Price incl. VAT
97
FRONT GUARD PLATE
705006300
49,06€ Unit Price incl. VAT
98
GAGE SUPPORT
705006321
50,00€ Unit Price incl. VAT
101
Not available for this vehicle. X
N/A
Not Available
102
LH REAR FACIA
705006643
17,72€ Unit Price incl. VAT
103
RH REAR FACIA
705006650
17,72€ Unit Price incl. VAT
104
LH REAR FACIA
705006651
17,72€ Unit Price incl. VAT
105
RH REAR FACIA
705006652
17,72€ Unit Price incl. VAT
106
Not available for this vehicle. X
N/A
Not Available
107
CONSOLE CAP KIT
715001765
715006098
38,35€ Unit Price incl. VAT
110
CARGO RACK CENTER SUPPORT
705006812
73,00€ Unit Price incl. VAT
111
Not available for this vehicle. X
N/A
Not Available
112
Not available for this vehicle. X
N/A
Not Available
113
Not available for this vehicle. X
N/A
Not Available
114
Not available for this vehicle. X
N/A
Not Available
118
LH FOOTREST
705007040
112,01€ Unit Price incl. VAT
118
RH FOOTREST
705007039
145,01€ Unit Price incl. VAT
119
FRONT FACIA
705007041
705012822
135,00€ Unit Price incl. VAT
120
Not available for this vehicle. X
N/A
Not Available
121
Not available for this vehicle. X
N/A
Not Available
122
Not available for this vehicle. X
N/A
Not Available
123
LH SUPPORT
705007277
34,24€ Unit Price incl. VAT
124
RH SUPPORT
705007278
34,24€ Unit Price incl. VAT
125
CENTRAL SKID PLATE
705007553
715002374
77,00€ Unit Price incl. VAT
126
Not available for this vehicle. X
N/A
Not Available
127
Not available for this vehicle. X
N/A
Not Available
128
Not available for this vehicle. X
N/A
Not Available
129
YELLOW HOOD KIT
715001541
129,00€ Unit Price incl. VAT
129
YELLOW HOOD KIT
715002234
129,00€ Unit Price incl. VAT
129
YELLOW HOOD KIT
715002234
129,00€ Unit Price incl. VAT
129
RED HOOD KIT
715001543
129,00€ Unit Price incl. VAT
129
RED HOOD KIT
715002235
117,20€ Unit Price incl. VAT
129
CAMO HOOD KIT
715001547
457,39€ Unit Price incl. VAT
129
QUARRY GRAY HOOD ASS Y
715002239
129,00€ Unit Price incl. VAT
131
PUSH NUT
732610072
2,46€ Unit Price incl. VAT
132
YELLOW LH FRONT FENDER KIT
715002180
229,01€ Unit Price incl. VAT
132
YELLOW LH FRONT FENDER KIT
715002199
229,01€ Unit Price incl. VAT
132
YELLOW LH FRONT FENDER KIT
715002199
229,01€ Unit Price incl. VAT
132
RED LH FRONT FENDER KIT
715002182
229,01€ Unit Price incl. VAT
132
RED LH FRONT FENDER KIT
715002203
205,30€ Unit Price incl. VAT
132
CAMO LH FRONT FENDER KIT
715002183
876,36€ Unit Price incl. VAT
132
GREY LH FRONT FENDER ASS Y
715002204
190,08€ Unit Price incl. VAT
132
YELLOW RH FRONT FENDER KIT
715001510
229,01€ Unit Price incl. VAT
132
YELLOW RH FRONT FENDER KIT
715002208
229,01€ Unit Price incl. VAT
132
YELLOW RH FRONT FENDER KIT
715002208
229,01€ Unit Price incl. VAT
132
RED RH FRONT FENDER KIT
715001512
229,01€ Unit Price incl. VAT
132
RED RH FRONT FENDER ASS Y
715002206
212,90€ Unit Price incl. VAT
132
CAMO RH FRONT FENDER KIT
715001516
876,36€ Unit Price incl. VAT
132
GREY RH FRONT FENDER ASS Y
715002211
229,01€ Unit Price incl. VAT
134
TORX SCREW M6 X 35 BZN
250000646
1,12€ Unit Price incl. VAT
135
HEX. FLANGED SCREW M6X70, SCOTCH GRIP
207567044
2,51€ Unit Price incl. VAT
136
YELLOW LH REAR FENDER KIT
715001858
155,00€ Unit Price incl. VAT
136
YELLOW LH REAR FENDER KIT
715002212
206,99€ Unit Price incl. VAT
136
YELLOW LH REAR FENDER KIT
715002279
715003213
160,01€ Unit Price incl. VAT
136
RED LH REAR FENDER KIT
715001864
155,00€ Unit Price incl. VAT
136
RED LH REAR FENDER KIT
715002219
187,14€ Unit Price incl. VAT
136
CAMO LH REAR FENDER KIT
715001862
876,36€ Unit Price incl. VAT
136
GREY LH REAR FENDER KIT
715002283
155,00€ Unit Price incl. VAT
136
YELLOW RH REAR FENDER KIT
715001820
155,00€ Unit Price incl. VAT
136
YELLOW RH REAR FENDER KIT
715002229
155,00€ Unit Price incl. VAT
136
YELLOW RH REAR FENDER KIT
715002229
155,00€ Unit Price incl. VAT
136
RED RH REAR FENDER KIT
715001823
155,00€ Unit Price incl. VAT
136
RED RH REAR FENDER KIT
715002228
212,90€ Unit Price incl. VAT
136
CAMO RH REAR FENDER KIT
715001811
705005227
804,73€ Unit Price incl. VAT
136
GREY RH REAR FENDER KIT
715002233
200,09€ Unit Price incl. VAT
138
BUMPER.
705005019
705017380
340,01€ Unit Price incl. VAT
139
LH REAR BRACKET
705007896
705008164
41,66€ Unit Price incl. VAT
140
RH REAR BRACKET
705007897
705008165
41,66€ Unit Price incl. VAT
141
Not available for this vehicle. X
N/A
Not Available
142
Not available for this vehicle. X
N/A
Not Available
143
REAR RACK KIT
715001852
256,01€ Unit Price incl. VAT
143
RACK KIT
715002240
189,00€ Unit Price incl. VAT
143
RACK KIT
715002240
189,00€ Unit Price incl. VAT

Find the detailed Body And Accessories _31T1403 CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for OUTLANDER 500

Model Numbers

Model Numbers

for OUTLANDER 500 from 2014

Cooling System

Cooling System

for OUTLANDER 500 from 2014

Engine

Engine

for OUTLANDER 500 from 2014

Exhaust System

Exhaust System

for OUTLANDER 500 from 2014

Crankcase

Crankcase

for OUTLANDER 500 from 2014

Crankshaft, Piston And Cylinder

Crankshaft, Piston And Cylinder

for OUTLANDER 500 from 2014

Cylinder Head, Front

Cylinder Head, Front

for OUTLANDER 500 from 2014

Cylinder Head, Rear

Cylinder Head, Rear

for OUTLANDER 500 from 2014

Engine Cooling

Engine Cooling

for OUTLANDER 500 from 2014

Engine Lubrication

Engine Lubrication

for OUTLANDER 500 from 2014

Gear Box And Components

Gear Box And Components

for OUTLANDER 500 from 2014

Gear Box Assy And 4X4 Actuator

Gear Box Assy And 4X4 Actuator

for OUTLANDER 500 from 2014

Gear Box Output Shaft

Gear Box Output Shaft

for OUTLANDER 500 from 2014

Air Intake Manifold And Throttle Body

Air Intake Manifold And Throttle Body

for OUTLANDER 500 from 2014

Air Intake

Air Intake

for OUTLANDER 500 from 2014

Fuel System

Fuel System

for OUTLANDER 500 from 2014

Magneto And Electric Starter 1_420 Watts

Magneto And Electric Starter 1_420 Watts

for OUTLANDER 500 from 2014

Magneto And Electric Starter 2_650 Watts

Magneto And Electric Starter 2_650 Watts

for OUTLANDER 500 from 2014

Transmission

Transmission

for OUTLANDER 500 from 2014

Brakes

Brakes

for OUTLANDER 500 from 2014

Drive System, Front

Drive System, Front

for OUTLANDER 500 from 2014

Front Suspension

Front Suspension

for OUTLANDER 500 from 2014

Steering

Steering

for OUTLANDER 500 from 2014

Drive System, Rear

Drive System, Rear

for OUTLANDER 500 from 2014

Rear Suspension

Rear Suspension

for OUTLANDER 500 from 2014

Drive Shaft

Drive Shaft

for OUTLANDER 500 from 2014

Body And Accessories _31T1403

Body And Accessories _31T1403

for OUTLANDER 500 from 2014

Decals

Decals

for OUTLANDER 500 from 2014

Frame

Frame

for OUTLANDER 500 from 2014

Rear Cargo Box

Rear Cargo Box

for OUTLANDER 500 from 2014

Seat

Seat

for OUTLANDER 500 from 2014

Electrical Harness Main Harness

Electrical Harness Main Harness

for OUTLANDER 500 from 2014

Electrical System

Electrical System

for OUTLANDER 500 from 2014

Engine Harness And Electronic Module

Engine Harness And Electronic Module

for OUTLANDER 500 from 2014

Can-Am OUTLANDER 500 2014

OUTLANDER 500

OUTLANDER 500

Model : OUTLANDER

Engine capacity : 500

Year : 2014

New and OEM parts
International Shipping
Official price Can-Am
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.4 /5
923 Reviews
View all reviews
Spare parts catalogue for all brands
