1
Model
DS
2
Year
2004
3
Trim
MINI DS 90 4 STROKES
4
Parts Catalog
Gear Shift
5
Parts Diagram
Parts Catalog
Cam Chain, Tensioner
by
Clutch
Gear Shift
2
2
12
19
3
3
28
16
7
27
18
1
14
11
20
15
23
21
21
26
8
8
8
8
8
13
6
9
25
29
24
17
4
4
22
5
5
10
1
GEAR SHIFT DRUM ASSY.
A24300152000
Not Available
2
HEXAGONAL WASHER FACE BOLT M6X20
A960000602010
Not Available
3
GEAR SHIFT FORK
A24211152000
Not Available
4
GEAR SHIFT FORK GUIDE PIN
A24261152000
Not Available
5
GEAR SHIFT FORK GUIDE PIN CLIP
A94251152000
Not Available
6
GEAR SHIFT DRUM
A24301152000
Not Available
7
SHIFT DRUM STOPPER PLATE
A24411152000
Not Available
8
GEAR SHIFT DRUM PIN
A24421152000
Not Available
9
GEAR SHIFT DRUM STOPPER COMP
A24430152000
Not Available
10
SHIFT DRUM STOPPER SPRING
A24435152000
Not Available
11
GEAR SHIFT SPINDLE COMP.
A24611152000
Not Available
12
GEAR SHIFT ARM
A24630152000
Not Available
13
GEAR SHIFT ARM SPRING
A24641152000
Not Available
14
GEAR SHIFT RETURN SPRING
A24651152000
Not Available
15
GEAR SHIFT RETURN SPRING PIN
A24652152000
Not Available
16
STARTER RUBBER
A28311152000
Not Available
17
NEUTRAL CONTACT SWITCH ASS Y
A35750108000
Not Available
18
NEUTRAL SWITCH ROTOR
A35753108000
Not Available
19
HEXAGONAL BOLT M6 X 16
A920000601610
Not Available
20
CONTACT FIXING PLATE
A35755152000
Not Available
21
ROLLER
A9622030085
Not Available
22
SHAFT DRUM STOPPER ARM PIVOT
A901110601416
Not Available
23
HEXAGONAL BOLT M6 X 18
A920000601810
Not Available
24
PLAIN WASHER, 6 X 18 X 2
A941010618020
Not Available
25
RUBBER CAP
A96421152000
Not Available
26
PLAIN WASHER
A941010618012
Not Available
27
PAN HEAD PHILLIPS BOLT M6 X 12
A9350006012
Not Available
28
GEAR SHAFT PEDAL COMP.
A24701152001
Not Available
29
PULL STARTER ARM ASS Y
A28300152000
Not Available

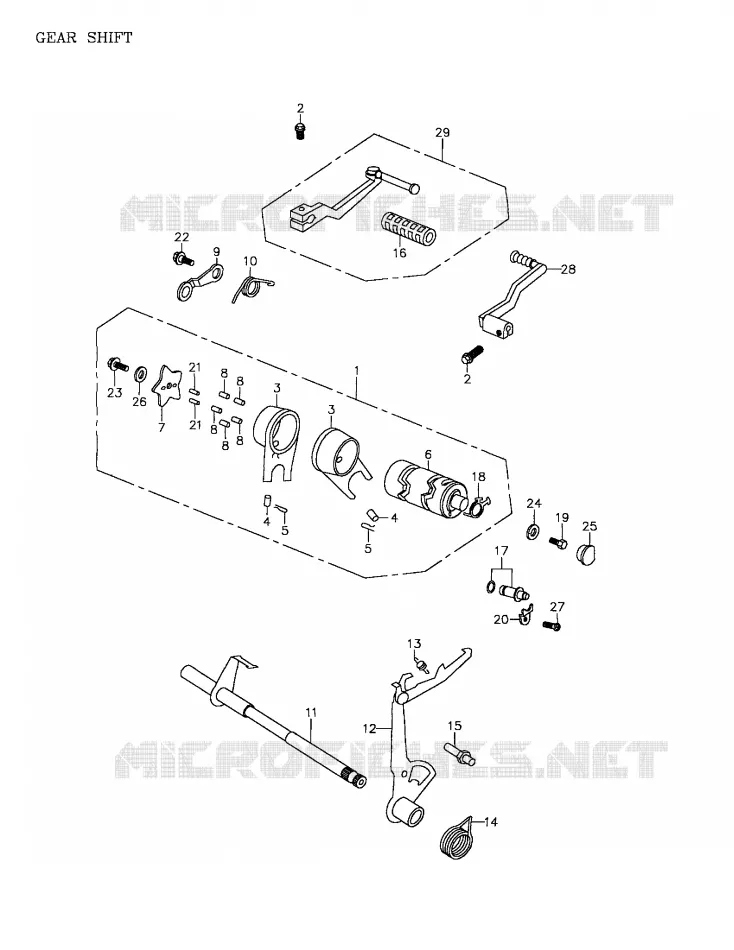

Find the detailed Gear Shift CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
