Model
SPYDER
2
Year
2015
3
Trim
SPYDER RS-S SM5
4
Parts Catalog
Hydraulic Brake Pedal_22Y1510b
5
Parts Diagram
Parts Catalog
Hydraulic Brake _22Y1510a
by
Drive System, Front _12Y1510
Hydraulic Brake Pedal_22Y1510b
10
10
16
22
17
17
17
17
17
17
167
167
41
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
63
152
152
152
129
29
34
151
163
45
45
45
45
45
45
45
45
45
45
45
45
45
45
158
67
98
98
72
72
72
173
173
173
173
173
68
27
27
27
27
150
150
148
14
77
77
77
77
69
69
69
69
149
73
73
156
141
141
164
9
9
9
9
93
23
23
23
23
21
38
38
38
38
13
25
157
56
56
56
56
56
56
161
74
9
HEX. SCREW M10 X 65, SCOTCH GRIP
207206534
8,86€ Unit Price incl. VAT
10
Not available for this vehicle. X
N/A
Not Available
13
HEX. FLANGED SCREW M6 X 30, SCOTCH GRIP
207563044
5,18€ Unit Price incl. VAT
14
Not available for this vehicle. X
N/A
Not Available
16
HEX. FLANGED SCREW M6 X 10
210261080
210261050
1,88€ Unit Price incl. VAT
17
HEX. FLANGED SCREW M6 X 12
210261280
210261250
2,24€ Unit Price incl. VAT
21
Not available for this vehicle. X
N/A
Not Available
22
TORX SCREW FLAT HEAD T-30 S.GRIP M6X20
250000643
2,24€ Unit Price incl. VAT
23
TORX HEAD SCREW M6 X 16
250000717
2,51€ Unit Price incl. VAT
25
TORX TRUSS SCREW M6 X 20
250000350
5,82€ Unit Price incl. VAT
27
PIN
250400062
5,32€ Unit Price incl. VAT
29
PIN
293370064
21,28€ Unit Price incl. VAT
34
Not available for this vehicle. X
N/A
Not Available
38
COTTER PIN
371800700
1,20€ Unit Price incl. VAT
41
CIRCLIP
414439000
5,02€ Unit Price incl. VAT
45
WASHER
503183800
3,88€ Unit Price incl. VAT
56
RUBBER PAD
705004933
23,12€ Unit Price incl. VAT
63
BEARING
705600458
22,20€ Unit Price incl. VAT
67
KEY
705600524
20,06€ Unit Price incl. VAT
68
SPRING
705600525
17,78€ Unit Price incl. VAT
69
BUSHING
705600541
17,78€ Unit Price incl. VAT
72
BUSHING
705600587
12,22€ Unit Price incl. VAT
73
BUSHING
705600588
17,78€ Unit Price incl. VAT
74
Pédale De Frein
705600633
113,33€ Unit Price incl. VAT
77
Not available for this vehicle. X
N/A
Not Available
93
Not available for this vehicle. X
N/A
Not Available
98
Not available for this vehicle. X
N/A
Not Available
129
Patte De Verrouillage. RS-S
705601136
24,60€ Unit Price incl. VAT
141
Not available for this vehicle. X
N/A
Not Available
148
Pedal Plate
705601269
25,43€ Unit Price incl. VAT
149
Switch Plate
705601270
15,74€ Unit Price incl. VAT
150
Patte De Verrouillage. RS-S
705601136
24,60€ Unit Price incl. VAT
151
Not available for this vehicle. X
N/A
Not Available
152
Not available for this vehicle. X
N/A
Not Available
156
Not available for this vehicle. X
N/A
Not Available
157
Not available for this vehicle. X
N/A
Not Available
158
Parking Pedal
705601289
117,00€ Unit Price incl. VAT
161
Not available for this vehicle. X
N/A
Not Available
163
Not available for this vehicle. X
N/A
Not Available
164
SPRING
707000543
17,24€ Unit Price incl. VAT
167
Parking Brake Cable
707001802
84,00€ Unit Price incl. VAT
167b
Not available for this vehicle. X
N/A
Not Available
173
RUBBER STOPPER
708000759
4,74€ Unit Price incl. VAT

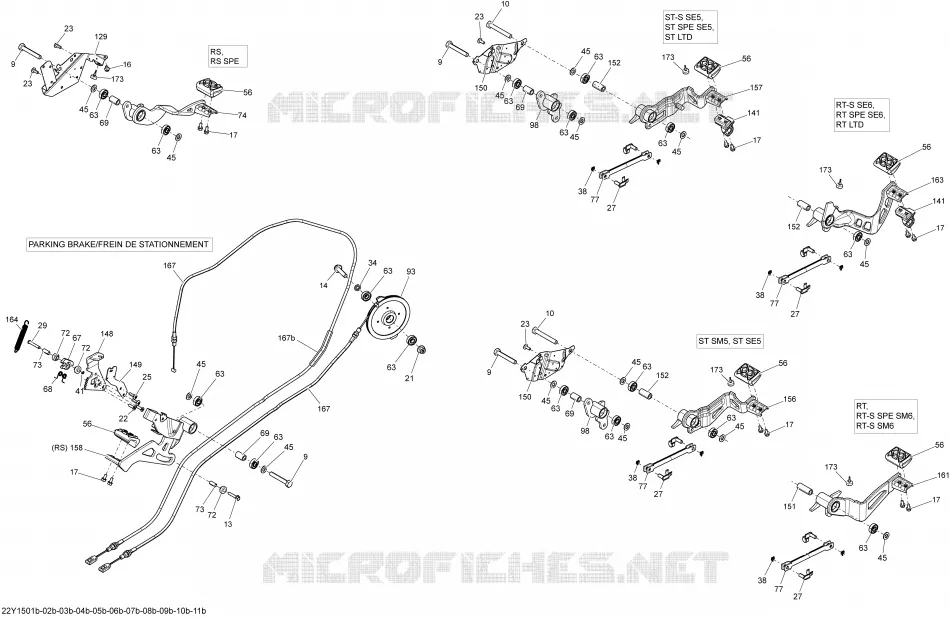

Find the detailed Hydraulic Brake Pedal_22Y1510b CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.
