1
Model
SPYDER
2
Year
2021
3
Trim
SPYDER RT LIMITED SE6 CHROME EDITION (BUILT BEFORE 09/2020)
4
Parts Catalog

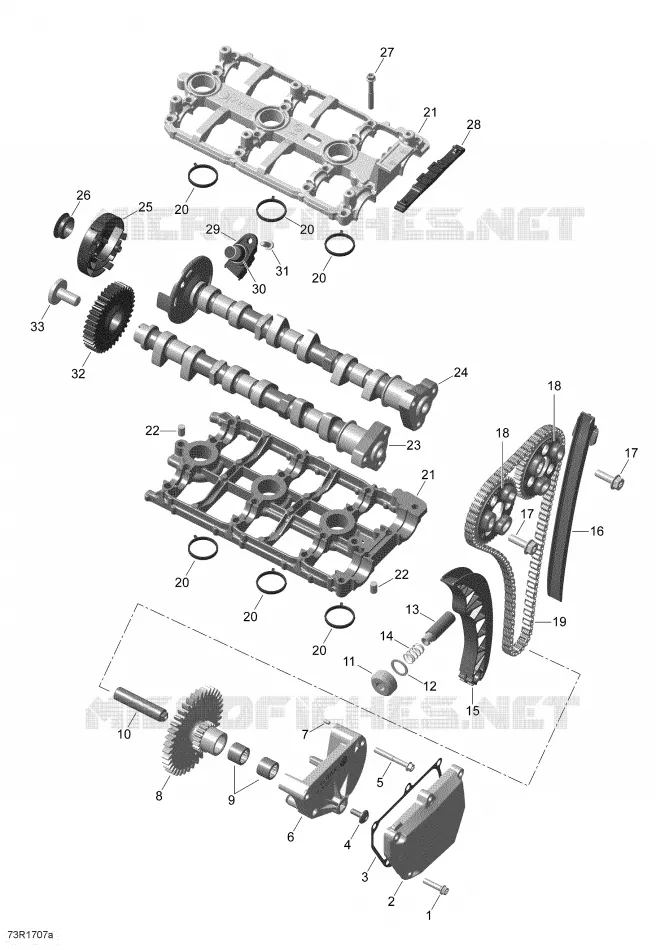

ROTAX - Valve Train
5
Parts Diagram
Parts Catalog
ROTAX - Valve Cover
by
ROTAX - Air Intake Manifold and Throttle Body
ROTAX - Valve Train
9
25
5
7
31
22
22
18
18
30
15
28
6
27
14
3
23
29
11
17
17
26
20
20
20
20
20
20
19
33
12
4
2
21
21
1
24
13
32
16
8
10
1
FLANGED TORX SCREW M6 X 25
420440234
3,64€ Unit Price incl. VAT
2
Valve Train Cover
420210861
420210863
112,01€ Unit Price incl. VAT
3
Joint étanche
420450040
21,28€ Unit Price incl. VAT
4
FLANGED TORX SCREW M8 X 65
420440402
8,76€ Unit Price incl. VAT
5
FLANGED TORX SCREW M6 X 45
420440324
1,16€ Unit Price incl. VAT
6
Support De Roulement
420210868
62,00€ Unit Price incl. VAT
7
NEEDLE PIN
420929075
2,51€ Unit Price incl. VAT
8
Engrenage Intermédiaire 38\19 Dents Ass. | Includes no. 8-9
420435316
420435314
161,00€ Unit Price incl. VAT
9
Needle Bushing
420632391
54,62€ Unit Price incl. VAT
10
Arbre Intermédiaire
420249011
62,00€ Unit Price incl. VAT
11
Screw M24 X 1
420242365
420242369
44,44€ Unit Price incl. VAT
12
ANNEAU ETANCHE*GASKET RING
420430623
420430624
2,16€ Unit Price incl. VAT
13
Chain Tensioner
420236910
420236911
44,44€ Unit Price incl. VAT
14
Ressort De Compression
420238734
9,98€ Unit Price incl. VAT
15
Tendeur De Chau0026#238;ne
420236900
27,25€ Unit Price incl. VAT
16
Guide De Chau0026#238;ne
420236890
27,76€ Unit Price incl. VAT
17
FLANGED TORX SCREW M8 X 25
420440374
6,66€ Unit Price incl. VAT
18
Timing Gear 42 Teeth
420253181
420253185
89,00€ Unit Price incl. VAT
19
Chau0026#238;ne d'Arbre & Came
420297420
184,01€ Unit Price incl. VAT
20
Joint étanche
420431765
5,54€ Unit Price incl. VAT
21
Support d'Arbre & Came Ass. | Includes no. 21-22
420210175
345,01€ Unit Price incl. VAT
22
CENTER PIN 8 X 12
420632010
4,68€ Unit Price incl. VAT
23
Camshaft, Exhaust
420237176
420237179
245,00€ Unit Price incl. VAT
24
Camshaft, Intake
420237177
420237178
245,00€ Unit Price incl. VAT
25
Couvercle
420201040
12,24€ Unit Price incl. VAT
26
V-RING
420630125
13,44€ Unit Price incl. VAT
27
FLANGED TORX SCREW M6 X 45
420440324
1,16€ Unit Price incl. VAT
28
CHAIN GUIDE, UPPER
420936500
5,18€ Unit Price incl. VAT
29
COVER
420660270
8,66€ Unit Price incl. VAT
30
O-RING
420631890
6,08€ Unit Price incl. VAT
31
FLANGED TORX SCREW M6 X 16
420440162
3,76€ Unit Price incl. VAT
32
Engrenage 39 Dents
420435370
41,66€ Unit Price incl. VAT
33
Vis & Tête PlateI M12 X 1.5
420441365
6,66€ Unit Price incl. VAT

Find the detailed ROTAX - Valve Train CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
