1
Model
DS
2
Year
2004
3
Trim
MINI DS 50 2 STROKES
4
Parts Catalog
Crankshaft And Pistons
5
Parts Diagram
Parts Catalog
Cylinder, Cylinder Head
by
Carburetor
Crankshaft And Pistons
1
16
11
8
8
12
2
6
4
9
10
14
7
5
17
3
15
15
13
1
CRANKSHAFT ASS Y
A13000116000
Not Available
2
LEFT CRANK
A13321116000
Not Available
3
CRANK PIN
A13381104000
Not Available
4
NEEDLE BEARING, 16 X 22 X 12
A96200162212
Not Available
5
CRANK CONNECTING ROD
A13201104000
Not Available
6
RH CRANK
A13311116000
Not Available
7
SEMICYCLE KEY, 3 X 13
A90471104000
Not Available
8
RADIAL BALL BEARING, 6204C3
A9610062040
Not Available
9
OIL SEAL, 20 X 42/43 X 8/9
A9650020428
Not Available
10
OIL SEAL, 20 X 30/33 X 6
A9650020306
Not Available
11
LEFT CRANK COLLAR, 15 X 20 X 12
A13316116000
Not Available
12
PISTON
A13100116000
Not Available
13
PISTON PIN, 7 X 10 X 33
A13111104000
Not Available
14
PISTON RING SET
A13011116000
Not Available
15
PISTON PIN CLIP, 1.2 X 12
A13115104000
Not Available
16
NEEDLE BEARING, 10 X 14 X 12.5
A96200101412
Not Available
17
PLAIN WASHER, 13 X 19 X 0.5
A941011319005
Not Available

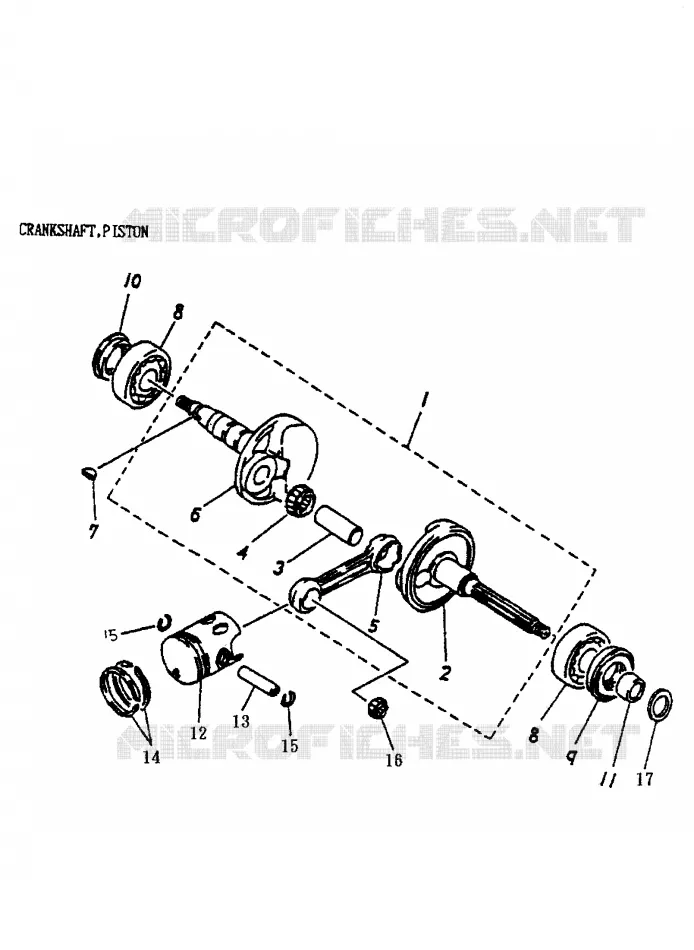

Find the detailed Crankshaft And Pistons CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
