Cylinder Head, Front - 850 EFI for Can-Am RENEGADE 1000 from 2016

Crankshaft, Piston and Cylinder - 850 EFI

Cylinder Head, Rear - 850 EFI

Cylinder Head, Front - 850 EFI

1

CYLINDER HEAD GASKET

420450340

55,56€ Unit Price incl. VAT

2

CYLINDER HEAD

420413106

768,02€ Unit Price incl. VAT

3

STUD M8 X 26

420941014

16,56€ Unit Price incl. VAT

4

EXHAUST VALVE 31MM

420855024

420253172

81,00€ Unit Price incl. VAT

5

INTAKE VALVE 36.5MM

420254356

420253162

44,44€ Unit Price incl. VAT

6

THRUST WASHER

420627521

420627525

1,98€ Unit Price incl. VAT

7

VALVE STEM SEAL

420430420

10,00€ Unit Price incl. VAT

8

VALVE SPRING

420239292

16,66€ Unit Price incl. VAT

9

VALVE SPRING RETAINER

420254137

16,66€ Unit Price incl. VAT

10

COTTER VALVE

420254600

420254602

2,83€ Unit Price incl. VAT

11

FLANGED TORX SCREW M6 X 85

420641228

8,76€ Unit Price incl. VAT

12

TORX SCREW M10 X 140

420641550

420641551

16,46€ Unit Price incl. VAT

13

CAMSHAFT

420620866

206,00€ Unit Price incl. VAT

14

HOLDING STRIP

420627743

21,42€ Unit Price incl. VAT

15

TORX SCREW M6 X 16

420241529

420241522

2,24€ Unit Price incl. VAT

16

ROCKER ARM INLET

420653065

420653067

84,00€ Unit Price incl. VAT

17

ROCKER ARM EXHAUST

420653075

95,00€ Unit Price incl. VAT

18

HEX. NUT M6

420242910

420242913

0,64€ Unit Price incl. VAT

19

ADJUSTMENT SCREW M6 X 0.75

420241335

420241337

5,94€ Unit Price incl. VAT

20

PIN 12 X 87.5

420229714

33,32€ Unit Price incl. VAT

21

SHIM

420944382

4,84€ Unit Price incl. VAT

22

BEARING SCREW M6

420240943

6,24€ Unit Price incl. VAT

23

CHAIN TENSION GUIDE

420436255

78,55€ Unit Price incl. VAT

24

CHAIN GUIDE

420236582

420236584

8,86€ Unit Price incl. VAT

25

CHAIN GUIDE

420236350

420236351

17,12€ Unit Price incl. VAT

26

SILENT CHAIN

420297063

78,00€ Unit Price incl. VAT

27

CAMSHAFT SPROCKET, 42 TEETH

420254436

420254438

21,42€ Unit Price incl. VAT

28

SCREW M6 X 12

420840031

420840032

5,18€ Unit Price incl. VAT

29

CHAIN TENSIONER HOUSING

420236510

13,44€ Unit Price incl. VAT

30

O-RING

420430370

420430373

3,76€ Unit Price incl. VAT

31

Vis Hexalobulaire À Épaulement M6 X 25

420641234

Not Available

32

CHAIN TENSIONER PLUNGER

420236520

420236521

17,56€ Unit Price incl. VAT

33

SPRING

420238120

8,76€ Unit Price incl. VAT

34

O-RING

420250890

3,58€ Unit Price incl. VAT

35

PLUG SCREW

420641150

8,76€ Unit Price incl. VAT

36

GASKET

420630260

420630265

10,10€ Unit Price incl. VAT

37

VALVE COVER

420610393

31,68€ Unit Price incl. VAT

38

HEX. DISTANCE SCREW M6 X 30.5

420440567

420440568

10,18€ Unit Price incl. VAT

39

SPARK PLUG NGK LMAR8D-J

715900352

26,78€ Unit Price incl. VAT

40

Not Available As Spare Parts

XXX

Not Available

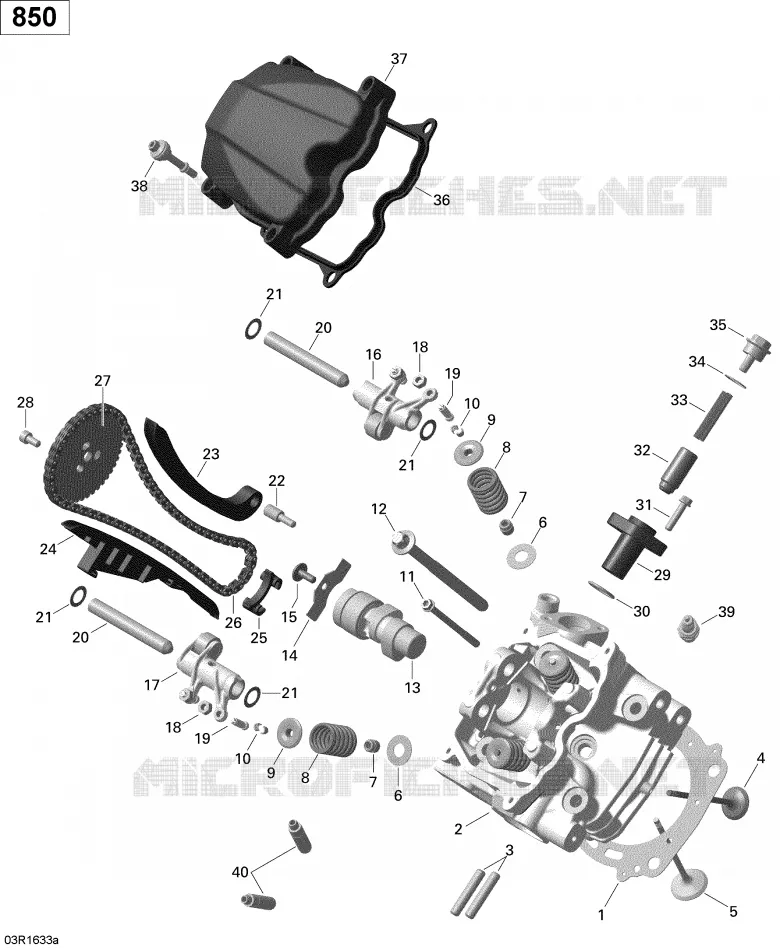

Find the detailed Cylinder Head, Front - 850 EFI CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
