Cooling System for Can-Am RENEGADE 1000 from 2016

Cooling System

2

HEX. FLANGED SCREW M6 X 20

207662034

2,51€ Unit Price incl. VAT

3

HEX. FLANGED SCREW M6 X 25

207662534

2,51€ Unit Price incl. VAT

4

HEX. FLANGED SCREW M6 X 30, SCOTCH GRIP

207563034

2,51€ Unit Price incl. VAT

5

FLANGED ELASTIC NUT M6

233261434

5,18€ Unit Price incl. VAT

6

FLAT WASHER 8 MM

234081410

0,90€ Unit Price incl. VAT

7

SPRING NUT U M6 X 1.0

250000048

250100198

2,48€ Unit Price incl. VAT

8

FLAT WASHER

250200082

0,50€ Unit Price incl. VAT

10

RETAINER

275500590

11,10€ Unit Price incl. VAT

11

FAN ASSY

709200563

284,00€ Unit Price incl. VAT

11

FAN ASSY

709200564

273,00€ Unit Price incl. VAT

12

TUFLOK PLASTIC RIVET

293150089

293150230

1,74€ Unit Price incl. VAT

13

NORMA CLAMP

293650098

5,18€ Unit Price incl. VAT

14

NORMA SPRING CLAMP

293650108

4,84€ Unit Price incl. VAT

15

NORMA SPRING CLAMP

293650109

4,84€ Unit Price incl. VAT

16

NORMA SPRING CLAMP

293650166

5,18€ Unit Price incl. VAT

16

NORMA SPRING CLAMP

293650166

5,18€ Unit Price incl. VAT

17

GROMMET

293720053

709000582

5,36€ Unit Price incl. VAT

18

BUSHING

293900105

9,12€ Unit Price incl. VAT

19

WRAP_TIE 188 X 4.6

414115200

0,12€ Unit Price incl. VAT

21

UNIVERSAL SPRING CLAMP

414554800

1,00€ Unit Price incl. VAT

22

OETIKER CLAMP

509000162

8,32€ Unit Price incl. VAT

23

Hose, Polyurethane

415080200

Not Available

24

T-FITTING

509000219

509001313

18,62€ Unit Price incl. VAT

26

CAP-PRESSURE

709200207

33,31€ Unit Price incl. VAT

27

RADIATOR INLET HOSE

709200278

38,88€ Unit Price incl. VAT

28

THERMOSTAT INLET HOSE

709200280

11,28€ Unit Price incl. VAT

29

GROMMET

709200285

11,09€ Unit Price incl. VAT

30

RADIATOR

709200286

556,01€ Unit Price incl. VAT

31

COOLANT TANK

709200297

67,00€ Unit Price incl. VAT

32

HOSE-RAD

709200299

10,01€ Unit Price incl. VAT

33

ENGINE OUTLET HOSE

709200310

22,20€ Unit Price incl. VAT

34

RADIATOR OUTLET HOSE

709200391

44,44€ Unit Price incl. VAT

35

HOSE

709200392

21,28€ Unit Price incl. VAT

36

AIR DEFLECTOR

709200393

18,50€ Unit Price incl. VAT

37

THERMOSTAT

709200406

112,01€ Unit Price incl. VAT

38

Tubing 35 mm

515176260

Not Available

39

RADIATOR OUTLET HOSE

709200390

17,22€ Unit Price incl. VAT

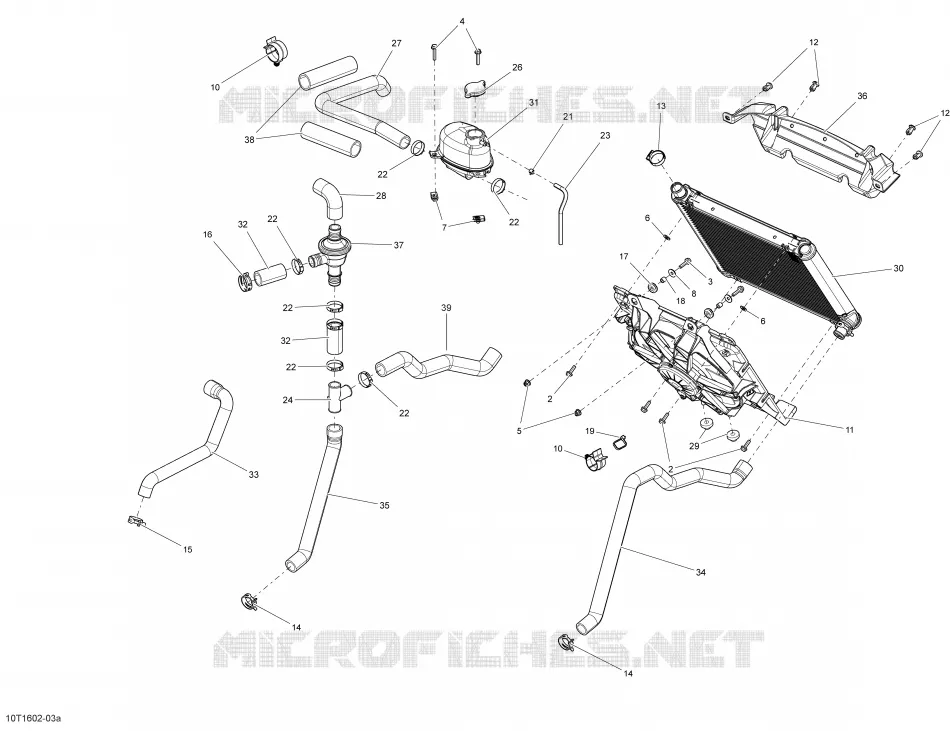

Find the detailed Cooling System CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
