Transmission - 570 EFI for Can-Am RENEGADE 1000 from 2016

Transmission - 570 EFI

1

CVT AIR GUIDE

420612304

223,01€ Unit Price incl. VAT

2

O-RING

420430408

420430409

6,66€ Unit Price incl. VAT

3

O-RING

420631088

420631089

6,66€ Unit Price incl. VAT

4

HEX.SCREW M6 X 20

420441311

6,08€ Unit Price incl. VAT

5

GASKET

420430126

50,00€ Unit Price incl. VAT

6>9

SPIDER CUP ASSY

420280522

306,01€ Unit Price incl. VAT

7

SLIDER SHOE SET 1 SET = 12 PC

420281296

50,92€ Unit Price incl. VAT

8

ROLLER AXLE

417223257

11,10€ Unit Price incl. VAT

9

ROLLER

417223767

8,88€ Unit Price incl. VAT

10

DRIVE SLIDING SHEAVE ASSY

420280467

239,00€ Unit Price incl. VAT

11

Not Available As Spare Parts

XXX

Not Available

11>14

CENTRIFUGAL LEVER SET

420248680

200,32€ Unit Price incl. VAT

12

Not Available As Spare Parts

XXX

Not Available

13

Not Available As Spare Parts

XXX

Not Available

14

Not Available As Spare Parts

XXX

Not Available

15

COMPRESSION SPRING, DRIVE PULLEY

420238610

17,78€ Unit Price incl. VAT

16

SPRING SEAT

420627577

420627578

41,00€ Unit Price incl. VAT

17

FRICTION WASHER

420460430

15,32€ Unit Price incl. VAT

18

DRIVE PULLEY CLUTCH

420257195

78,47€ Unit Price incl. VAT

19

BALL BEARING

420632375

420632377

56,82€ Unit Price incl. VAT

20

RETAINING RING

420245951

6,26€ Unit Price incl. VAT

21

DRIVE FIXED SHEAVE ASSY

420280374

217,01€ Unit Price incl. VAT

22

SPRING SLEEVE

420229577

21,42€ Unit Price incl. VAT

23

SPRING

420239134

3,62€ Unit Price incl. VAT

24

THRUST WASHER

420627920

8,88€ Unit Price incl. VAT

25

WASHER-SPRING

420627765

420627768

27,25€ Unit Price incl. VAT

26

HEX. SCREW M12 X 140

420641859

27,76€ Unit Price incl. VAT

27

DRIVEN PULLEY CAM

420280700

420280701

184,01€ Unit Price incl. VAT

28

DRIVEN PULLEY SHAFT

420220913

156,00€ Unit Price incl. VAT

29

COMPRESSION SPRING

420238176

44,44€ Unit Price incl. VAT

30

INNER HALF ASS Y

420248233

360,94€ Unit Price incl. VAT

31

Not Available As Spare Parts

XXX

Not Available

31>34

DRIVEN FIXED SHEAVE ASSY

420280178

400,62€ Unit Price incl. VAT

32

BALL BEARING

420932421

32,40€ Unit Price incl. VAT

33

TORQUE GEAR

420660124

27,76€ Unit Price incl. VAT

34

RETAINING RING

420245911

6,65€ Unit Price incl. VAT

35

DRIVE V BELT

715000302

422280366

182,77€ Unit Price incl. VAT

36

THRUST WASHER

420627590

420627594

15,54€ Unit Price incl. VAT

37

HEX. SCREW M10 X 110

420441485

14,44€ Unit Price incl. VAT

38

COUVERCLE*VARIATOR COVER

420611397

251,00€ Unit Price incl. VAT

39

HEX. DISTANCE SCREW M6 X 30.5

420440567

420440568

10,18€ Unit Price incl. VAT

40

DRAIN PLUG KIT

707001179

11,10€ Unit Price incl. VAT

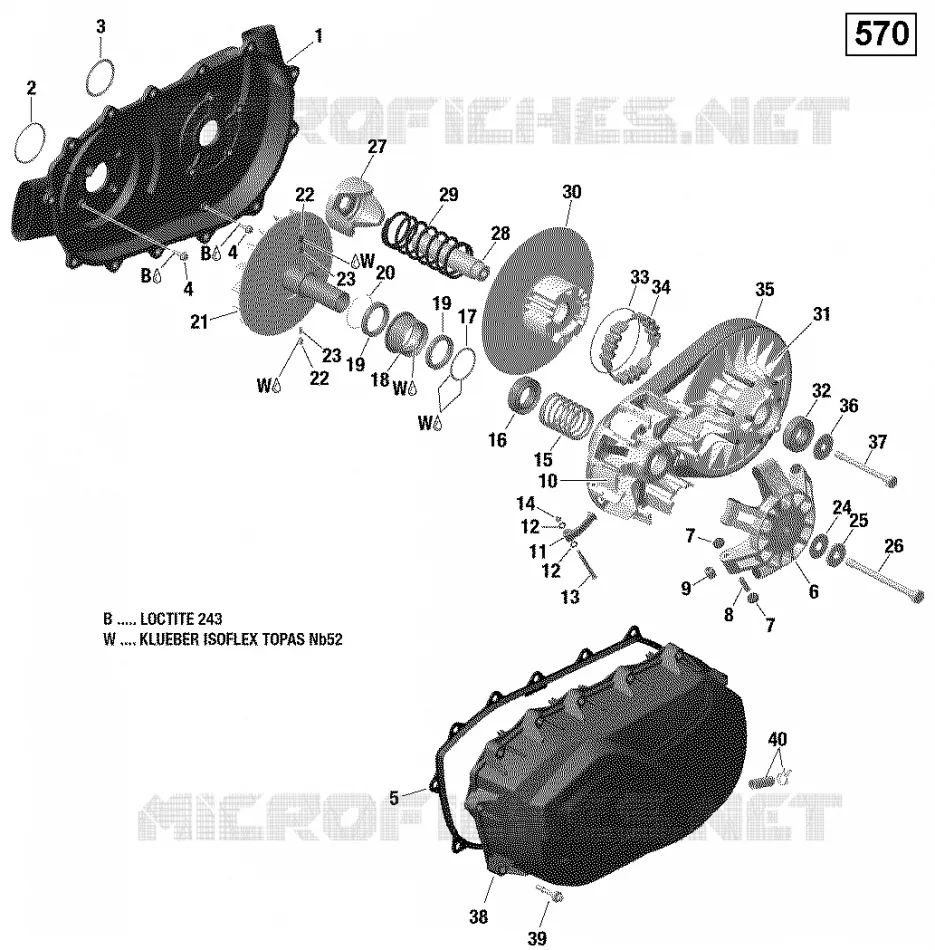

Find the detailed Transmission - 570 EFI CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
