1
Model
SPYDER
2
Year
2014
3
Trim
SPYDER RT SM6
4
Parts Catalog
Suspension, Rear _26Y1401
5
Parts Diagram
Parts Catalog
Drive System, Rear _13Y1401
by
Body And Accessories _31Y1401
Suspension, Rear _26Y1401
47
6
93
29
54
7
40
40
73
73
105
65
65
61
62
62
62
62
62
21
21
21
21
18
18
20
9
19
90
41
41
76
76
12
12
99
53
59
59
78
67
95
39
14
14
66
66
35
13
34
34
48
48
64
5
77
77
17
17
91
91
72
15
15
8
8
101
45
42
60
10
11
30
30
30
30
104
58
58
5
Not available for this vehicle. X
N/A
Not Available
6
Not available for this vehicle. X
N/A
Not Available
7
Not available for this vehicle. X
N/A
Not Available
8
Not available for this vehicle. X
N/A
Not Available
9
SCREW-HEX.FLANGE DIN.6921
207605534
2,51€ Unit Price incl. VAT
10
Not available for this vehicle. X
N/A
Not Available
11
HEX. FLANGED SCREW M8 X 75
207687544
8,76€ Unit Price incl. VAT
12
HEX. FLANGED SCREW M6 X 10
210261080
210261050
1,88€ Unit Price incl. VAT
13
FLANGED HEX. SCREW M10 X 140
230604034
7,94€ Unit Price incl. VAT
14
Not available for this vehicle. X
N/A
Not Available
15
HEX. FLANGED ELASTIC NUT M10
233201434
2,34€ Unit Price incl. VAT
17
HEX. FLANGED ELASTIC NUT M8
233281414
1,64€ Unit Price incl. VAT
18
HEX. SCREW M8 X 20
236282084
1,66€ Unit Price incl. VAT
19
JAM NUT M20
250100119
4,54€ Unit Price incl. VAT
20
Not available for this vehicle. X
N/A
Not Available
21
BALL BEARING
293350055
293350115
13,81€ Unit Price incl. VAT
29
Not available for this vehicle. X
N/A
Not Available
30
INSERT
293450275
14,06€ Unit Price incl. VAT
34
Coussinet d'Urethane
503191609
19,98€ Unit Price incl. VAT
35
Coude 90u0026#176;
706001018
33,32€ Unit Price incl. VAT
39
Not available for this vehicle. X
N/A
Not Available
40
SPRING STOPPER
503191604
19,14€ Unit Price incl. VAT
40
Butée De Ressort
503193781
21,28€ Unit Price incl. VAT
41
CAP
503191605
9,10€ Unit Price incl. VAT
41
Capuchon
503193782
12,22€ Unit Price incl. VAT
42
Not available for this vehicle. X
N/A
Not Available
45
Not available for this vehicle. X
N/A
Not Available
47
Arbre d'Amortisseur
706000409
55,56€ Unit Price incl. VAT
48
Entretoise
706000410
15,54€ Unit Price incl. VAT
53
Ens. Amortisseur Pneumatique
219800175
340,01€ Unit Price incl. VAT
54
Not available for this vehicle. X
N/A
Not Available
58
AIR VALVE
706000678
706002797
19,98€ Unit Price incl. VAT
59
Pneumatic Connector
706000735
22,20€ Unit Price incl. VAT
60
Not available for this vehicle. X
N/A
Not Available
61
Not available for this vehicle. X
N/A
Not Available
62
CONNECTOR
706000869
40,06€ Unit Price incl. VAT
64
Boyau
706000893
0,01€ Unit Price incl. VAT
65
Support
706000895
12,22€ Unit Price incl. VAT
66
Not available for this vehicle. X
N/A
Not Available
67
Not available for this vehicle. X
N/A
Not Available
72
Plaque d' Appui
706001082
22,19€ Unit Price incl. VAT
73
Espaceur
706001152
11,10€ Unit Price incl. VAT
76
Not available for this vehicle. X
N/A
Not Available
77
Boulon M20
706001579
19,98€ Unit Price incl. VAT
78
Axe De Bras Oscillant
706001182
106,01€ Unit Price incl. VAT
90
Not available for this vehicle. X
N/A
Not Available
91
Douille
706001366
1,42€ Unit Price incl. VAT
93
Ressort d'Amortisseur
706001542
73,00€ Unit Price incl. VAT
95
Amortisseur
706001552
131,00€ Unit Price incl. VAT
99
Bras Oscillant
706001574
534,01€ Unit Price incl. VAT
101
Barre d'Accouplement
706201815
706202505
27,76€ Unit Price incl. VAT
104
Capteur De Position
710001651
195,00€ Unit Price incl. VAT
105
Not available for this vehicle. X
N/A
Not Available

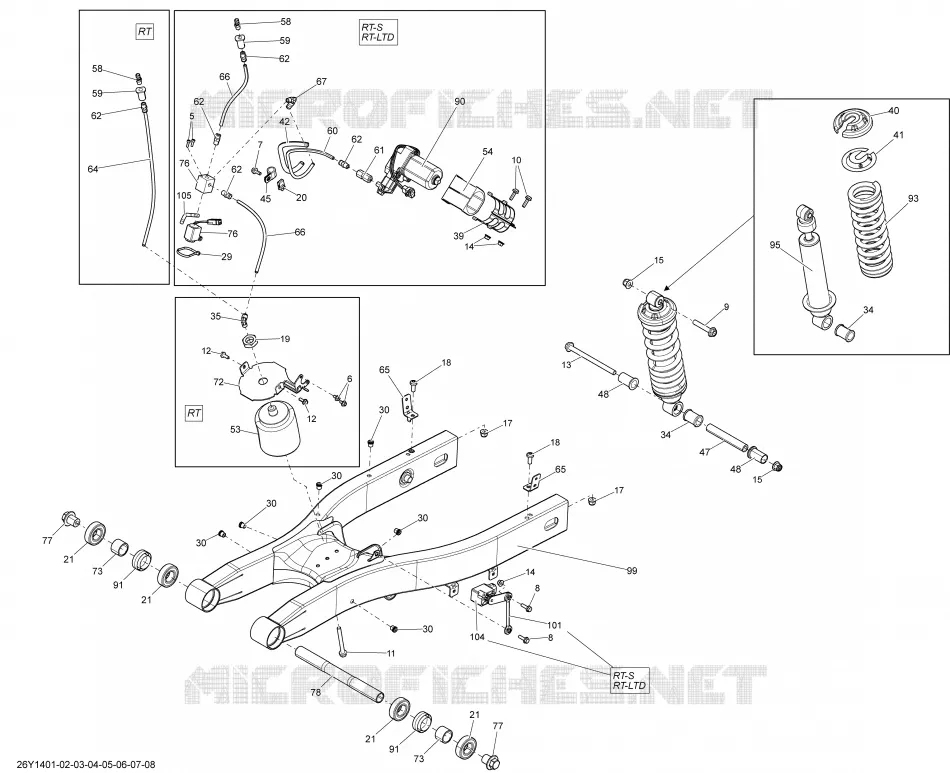

Find the detailed Suspension, Rear _26Y1401 CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
