Body And Accessories Windshield_31Y1401a for Can-Am SPYDER RT SM6 from 2014

Body And Accessories Front_31Y1401b

Decals _32Y1401

HEX. SCREW M6 X 50

207065060

2,44€ Unit Price incl. VAT

HEX. FLANGED SCREW M6 X 20

207662044

2,38€ Unit Price incl. VAT

HEX. FLANGED SCREW M6 X 35

207663544

1,06€ Unit Price incl. VAT

Not Available As Spare Parts

XXX

Not Available

HEX. FLANGED SCREW M6 X 16

210261680

210261650

1,92€ Unit Price incl. VAT

NUT-STOP ELASTIC DIN.985

232561200

4,66€ Unit Price incl. VAT

SQUARE NUT M6

232862412

1,70€ Unit Price incl. VAT

FLAT WASHER 6 MM

234062410

0,92€ Unit Price incl. VAT

FLAT WASHER

234062670

2,51€ Unit Price incl. VAT

Retainer Pin Kit. Includes 3575 TO 3575a See Bulletin No. 2014-6

219800355

55,56€ Unit Price incl. VAT

SPRING NUT U M5 X 0.8

250000079

250000958

5,00€ Unit Price incl. VAT

TORX SCREW M5 X 20

250000130

250000724

2,00€ Unit Price incl. VAT

FLANGED TORX SCREW K40 X 16

250000287

2,51€ Unit Price incl. VAT

TORX TRUSS SCREW M6 X 20

250000350

5,82€ Unit Price incl. VAT

TORX SCREW M5 X 25

250000455

3,56€ Unit Price incl. VAT

TORX-TRUSS M/S STLSS M5 X 14

250000487

2,24€ Unit Price incl. VAT

TORX TRUSS SCREW M6 X 20

250000488

2,51€ Unit Price incl. VAT

SPRING NUT U M6 X 1.0

250100113

250100198

2,48€ Unit Price incl. VAT

Nut Housing Ass'y

269501166

269502408

7,76€ Unit Price incl. VAT

GEAR MOTOR

278002579

265,01€ Unit Price incl. VAT

Windshield Motor Support Ass'y. Includes 48a to 48i

705007069

798,48€ Unit Price incl. VAT

TUFLOK PLASTIC RIVET

293150089

293150230

1,74€ Unit Price incl. VAT

BLACK DART

293730006

1,16€ Unit Price incl. VAT

102

WRAP_TIE 188 X 4.6

414115200

0,12€ Unit Price incl. VAT

118

CLIP

517302785

1,00€ Unit Price incl. VAT

147

Caution Decal, Windshield

704903339

0,01€ Unit Price incl. VAT

154

Timeless Black Met Front Console. Model-Timeless Black Met

705007573

241,91€ Unit Price incl. VAT

154

White Front Console. White Model

705007276

705009167

134,00€ Unit Price incl. VAT

161

Glove Box

705002726

95,00€ Unit Price incl. VAT

162

Timeless Black Met Glove Box Cover. Model-Timeless Black Met

705007590

164,03€ Unit Price incl. VAT

162

Glove Box Cover, Vegas White B-313. Model B-313 Vegas White Pearl

705006973

195,00€ Unit Price incl. VAT

163

Rétroviseur GA Ass.. Inclus 1 à 9

705004687

708400146

356,00€ Unit Price incl. VAT

164

Rétroviseur DR Ass.. Inclus 10 à 18

705004688

708400147

356,00€ Unit Price incl. VAT

166

Console Support

705002743

112,01€ Unit Price incl. VAT

167

Guide Chart Support

705002746

30,42€ Unit Price incl. VAT

175

LH Upper Air Deflector

705002841

50,92€ Unit Price incl. VAT

176

RH Upper Air Deflector

705002842

50,92€ Unit Price incl. VAT

178

Noir Profond, Ens. Enjoliv.Pare-Brise GA

705007411

50,00€ Unit Price incl. VAT

184

LH Speaker Housing

705003092

13,30€ Unit Price incl. VAT

185

RH Speaker Housing

705003093

705009165

15,08€ Unit Price incl. VAT

189

Noir Éternel M-Coquille De Mirr Sup GA. Modèle RT STD Noir Éternel Mét.

705007576

142,22€ Unit Price incl. VAT

189

Vegas White Pearl LH Upper Mirror Shell. Model-Vegas White Pearl

705007405

162,00€ Unit Price incl. VAT

194

Noir Éternel Mé-Coquille De Mirr Sup DR. Modèle RT STD Noir Éternel Mét.

705007577

142,22€ Unit Price incl. VAT

194

Vegas White Pearl RH Upper Mirror Shell. Model-Vegas White Pearl

705007406

155,00€ Unit Price incl. VAT

199

Dashboard Bezel

705003163

62,00€ Unit Price incl. VAT

200

LH Speaker Grill

705003199

16,38€ Unit Price incl. VAT

201

RH Speaker Grill

705003200

16,38€ Unit Price incl. VAT

206

Console Support Plate

705003779

30,54€ Unit Price incl. VAT

213

Sleeve

705003267

11,10€ Unit Price incl. VAT

219

Retainer Pin Kit. Includes 3575 TO 3575a See Bulletin No. 2014-6

219800355

55,56€ Unit Price incl. VAT

221

Noir Profond, Enjoliveur Pare-Brise DR

705007412

50,00€ Unit Price incl. VAT

222

Console Cross-Support

705003384

92,00€ Unit Price incl. VAT

227

PUSH LATCH

705007380

73,00€ Unit Price incl. VAT

231

Guide Chart

705003472

705009360

33,31€ Unit Price incl. VAT

236

Glove Box Cable

705007381

27,76€ Unit Price incl. VAT

242

Glove Box Door Ass'y

705006111

167,15€ Unit Price incl. VAT

247

Glove Box Spring

705003748

33,32€ Unit Price incl. VAT

256

WINDSHIELD GROMMET

705003756

6,66€ Unit Price incl. VAT

274

NEOPRENE SEAL, METER

219800143

1,86€ Unit Price incl. VAT

277

Inner Sleeve. Order 219800321

NLA

Not Available

278

Spherical Head Stud. Before April 11, 2013

705004322

20,34€ Unit Price incl. VAT

280

Heat Shield

705004424

19,99€ Unit Price incl. VAT

281

Outer Front Insulation Foam

219800172

68,96€ Unit Price incl. VAT

282

Outer Front Insulation Foam

219800172

68,96€ Unit Price incl. VAT

283

Outer Front Insulation Foam

219800172

68,96€ Unit Price incl. VAT

285

Center Panel

705004461

44,44€ Unit Price incl. VAT

307

Windshield

705004740

Not Available

316

Rear Arm. Please refer to TST 133499 For Arm Repair Kit. Includes 48b to 48d,

219800197

219800432

95,00€ Unit Price incl. VAT

325

Retainer Pin Kit. Includes 3575 TO 3575a See Bulletin No. 2014-6

219800355

55,56€ Unit Price incl. VAT

326

Retainer Pin Kit. Includes 3575 TO 3575a See Bulletin No. 2014-6

219800355

55,56€ Unit Price incl. VAT

327

Windshield Support

705005405

238,79€ Unit Price incl. VAT

344

SLEEVE

705005756

15,54€ Unit Price incl. VAT

360

Upper Console

705006186

206,00€ Unit Price incl. VAT

377

Dashboard Ass'y. Includes 42a to 42c

705006655

121,22€ Unit Price incl. VAT

379

Spherical Head Stud. Before April 11, 2013

705004323

20,34€ Unit Price incl. VAT

428

CIRCLIP

705600272

11,11€ Unit Price incl. VAT

434

RH Acoustic Foam

707800341

20,34€ Unit Price incl. VAT

435

LH Acoustic Foam

707800349

21,28€ Unit Price incl. VAT

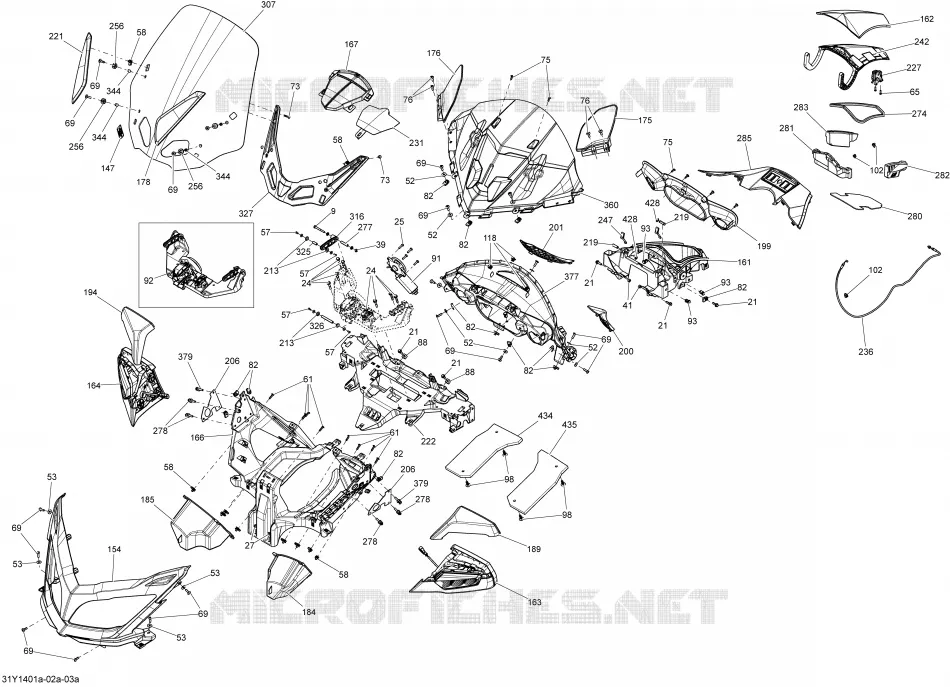

Find the detailed Body And Accessories Windshield_31Y1401a CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
