Main Harness for Can-Am QUEST 500 from 2003

CABLAGE ASS. *HARNESS ASSY.

710000348

402,50€ Unit Price incl. VAT

FEMALE TERMINAL

278001014

3,90€ Unit Price incl. VAT

WIRE SEAL

278001013

3,90€ Unit Price incl. VAT

FEMALE TERMINAL

409010700

6,16€ Unit Price incl. VAT

CONNECTOR_FEMALE 1 CAVITY

409010300

5,00€ Unit Price incl. VAT

FEMALE TERMINAL

710000038

5,54€ Unit Price incl. VAT

FEMALE TERMINAL

561503100

2,82€ Unit Price incl. VAT

FEMALE TERMINAL

710000221

3,60€ Unit Price incl. VAT

FEMALE TERMINAL

278001009

3,66€ Unit Price incl. VAT

BLOC 8 CIRC.FEM*HOUSING-TAB

710000035

8,98€ Unit Price incl. VAT

COSSE A ANNEAU *BARREL-OPEN

710000222

3,53€ Unit Price incl. VAT

101

TERMINAL_FEMALE

278001392

5,46€ Unit Price incl. VAT

110

MALE TERMINAL

278000631

5,00€ Unit Price incl. VAT

112

FEMALE TERMINAL

278000632

2,42€ Unit Price incl. VAT

115

MALE HOUSING, 3 CIRCUITS

409207000

278002378

15,64€ Unit Price incl. VAT

123

CONNECTOR_MALE 6 CAVITIES

278000736

710001540

25,60€ Unit Price incl. VAT

127

MALE LOCK, 3 CIRCUITS

409207600

3,66€ Unit Price incl. VAT

139

MALE TERMINAL

409014800

3,96€ Unit Price incl. VAT

140

FEMALE TERMINAL

409015100

4,97€ Unit Price incl. VAT

142

MALE HOUSING, 3 CIRCUITS

710000044

26,35€ Unit Price incl. VAT

150

FEMALE HOUSING, 6 CIRCUITS

409015400

11,80€ Unit Price incl. VAT

154

MALE LOCK, 3 CIRCUITS

710000043

6,41€ Unit Price incl. VAT

162

FEMALE LOCK, 6 CIRCUITS

409014900

3,96€ Unit Price incl. VAT

178

LOCK, 4 CIRCUITS

710000187

9,38€ Unit Price incl. VAT

180

FEMALE TERMINAL

278001638

3,61€ Unit Price incl. VAT

181

BLOC FEMELLE *HOUSING-TAB

710000188

16,00€ Unit Price incl. VAT

183

WIRE SEAL

710000189

2,94€ Unit Price incl. VAT

186

Gaine de vinyl

515175332

Not Available

188

Not Available As Spare Parts

XXX

Not Available

202

FEMALE TERMINAL

278001114

3,66€ Unit Price incl. VAT

221

FEMALE TERMINAL HOUSING, 24 CIRCUITS

409204600

3,96€ Unit Price incl. VAT

222

Logement de terminal femelle (3 circuits)

409204300

Not Available

227

MALE TERMINAL

409004300

6,62€ Unit Price incl. VAT

228

FEMALE TERMINAL

409007300

0,52€ Unit Price incl. VAT

229

FEMALE TERMINAL

278000223

3,66€ Unit Price incl. VAT

230

CONNECTOR_FEMALE 1 CAVITY

278000161

10,90€ Unit Price incl. VAT

236

CONNECTOR_MALE 1 CAVITY

278000219

17,34€ Unit Price incl. VAT

242

WIRE SEAL

278000218

5,00€ Unit Price incl. VAT

243

WIRE SEAL

710000048

8,78€ Unit Price incl. VAT

244

WIRE SEAL

278000216

3,66€ Unit Price incl. VAT

253

Gaine 6 mm

515175442

Not Available

254

Gaine 9 mm

409901700

Not Available

255

Gaine

409901800

Not Available

256

TUBING 16 MM

415080000

9,55€ Unit Price incl. VAT

257

Gaine

409901600

Not Available

258

Gaine 10 mm

415079900

Not Available

279

MALE TERMINAL

409011300

7,02€ Unit Price incl. VAT

280

FEMALE TERMINAL

409012100

5,36€ Unit Price incl. VAT

285

HOUSING-TAB

710000078

22,72€ Unit Price incl. VAT

286

SEAL

409012300

5,32€ Unit Price incl. VAT

297

TUBING

278001007

4,26€ Unit Price incl. VAT

301

Not Available As Spare Parts

XXX

Not Available

312

MALE HOUSING, 5 CIRCUITS

710000107

10,09€ Unit Price incl. VAT

328

MALE TERMINAL HOUSING, 3 CIRCUITS

278001467

12,34€ Unit Price incl. VAT

329

FEMALE TERMINAL

710000082

8,78€ Unit Price incl. VAT

331

PROTECTOR TUBE, 4 MM

710000244

7,49€ Unit Price incl. VAT

339

MALE HOUSING, 1 CIRCUIT

278001012

19,79€ Unit Price incl. VAT

342

FEMALE HOUSING, 6 CIRCUITS

710000190

14,69€ Unit Price incl. VAT

343

LOCK, 6 CIRCUITS

710000191

9,16€ Unit Price incl. VAT

344

FEMELLE HOUSING, 2 CIRCUITS

278001637

13,36€ Unit Price incl. VAT

345

SECONDARY LOCK

278001640

3,61€ Unit Price incl. VAT

376

HOUSING-TAB

710000219

10,09€ Unit Price incl. VAT

386

FEMALE TERMINAL

710000255

4,39€ Unit Price incl. VAT

422

Not Available As Spare Parts

XXX

Not Available

423

BARREL-OPEN

710000293

4,78€ Unit Price incl. VAT

435

Not Available As Spare Parts

XXX

Not Available

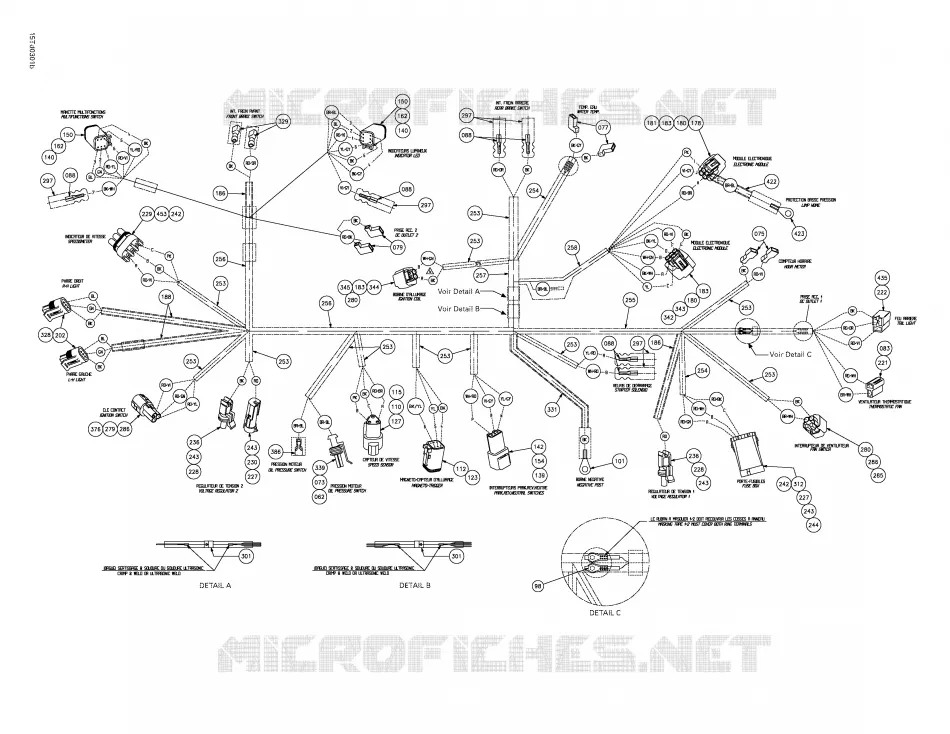

Find the detailed Main Harness CAN-AM diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original CAN-AM part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for QUEST 500

Can-Am QUEST 500 2003

QUEST 500

Model : QUEST

Engine capacity : 500

Year : 2003
